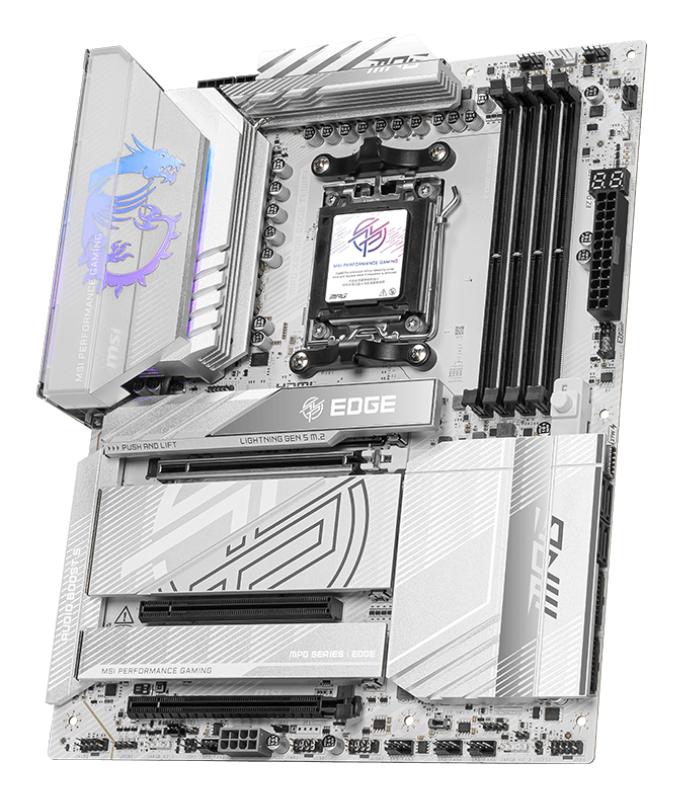

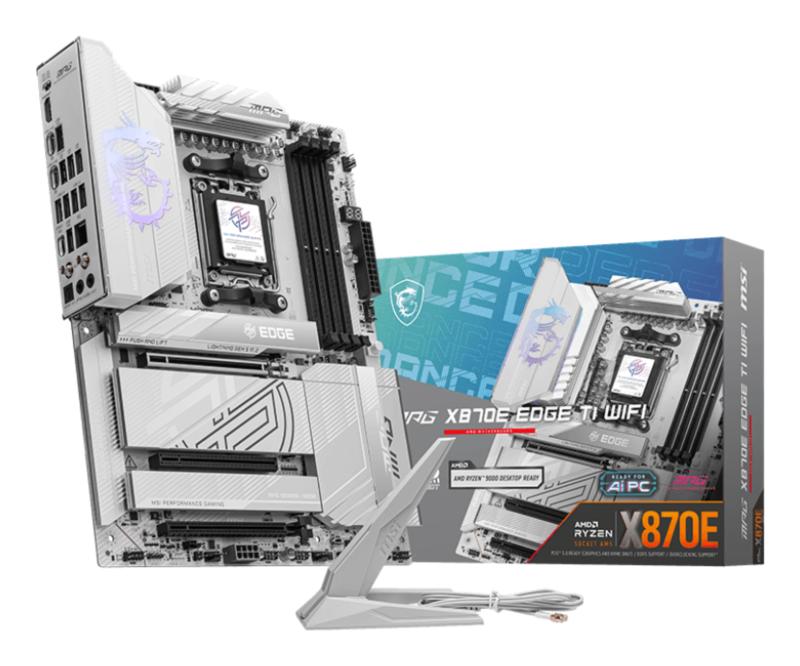

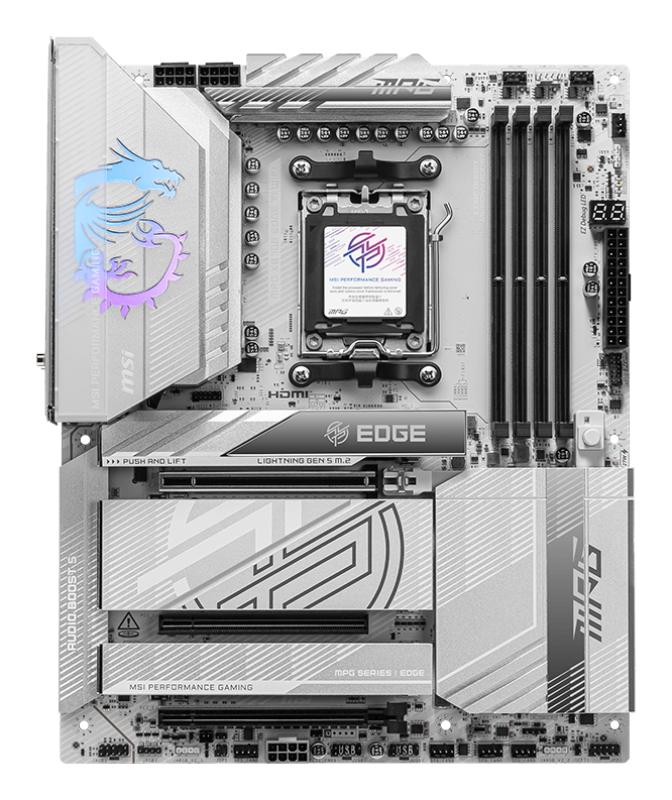

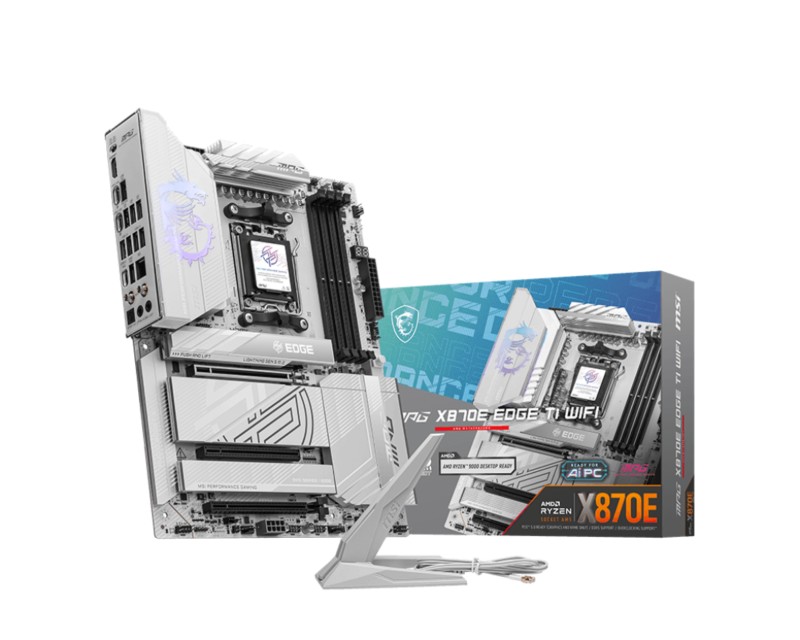

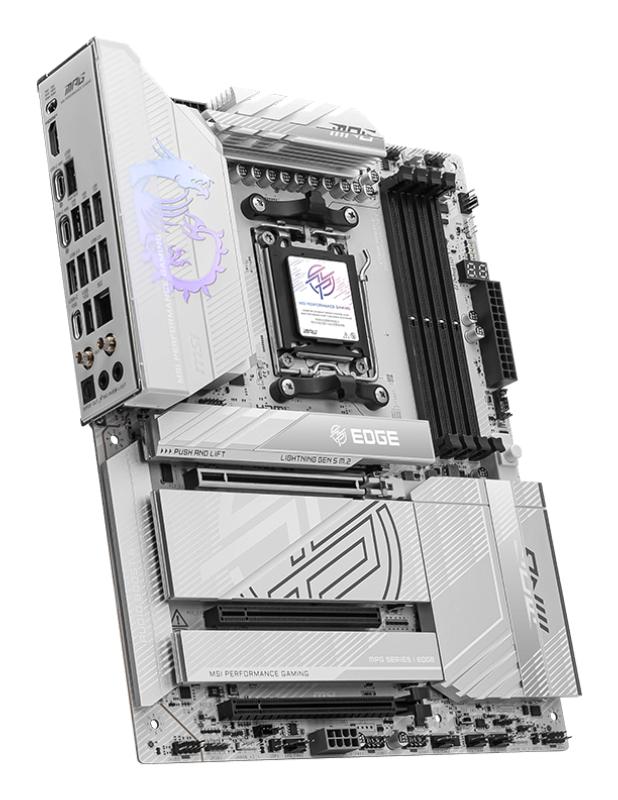

Placa de Baza MSI MPG X870E EDGE TI WIFI AM5, 4x DDR5
2.152,71 lei
5 în stoc (poate fi pre-comandat)
Descriere

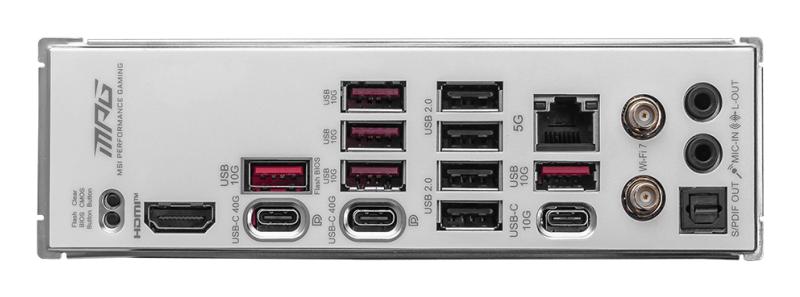

Placa de Baza MSI MPG X870E EDGE TI WIFI AM5, 4x DDR5, 1x HDMI 2x Type-C DP, 3x PCIE x16, 4x M.2, 4x SATA 6GB/s, ATX.
Caracteristici
- PCI: 0
- Serial-or-Paralel: No/No
- Video-Connection: HDMI/DP
- Wi-Fi: Yes
- Onboard-CPU: No
- RAID support: Yes
- Component for: PC
- Product colour: White
- DisplayPort version: 1.4
- Memory channels: Dual-channel
- BLUETOOTH: Yes
- Ethernet LAN: Yes
- HDMI ports quantity: 1
- Ethernet LAN (RJ-45) ports: 1
- HDMI version: 2.1
- Top Wi-Fi standard: Wi-Fi 7 (802.11be)
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
- Processor manufacturer: AMD
- Microphone in: Yes
- Bluetooth version: 5.4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 0
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
- USB 2.0 ports quantity: 4
- PCI Express x16 (Gen 3.x) slots: 1
- Audio output channels: 7.1 channels
- DisplayPorts quantity: 2
- PCI Express x16 (Gen 5.x) slots: 1
- PCI Express x16 (Gen 4.x) slots: 1
- On-board graphics card: No
- Supported storage drive types: HDD & SSD
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 5
- S/PDIF out port: Yes
- USB4 Gen 2x2 ports quantity: 1
- VGA (D-Sub) ports quantity: 0
- DVI-D ports quantity: 0
- Model Chipset: X870E
- Gaming: Da
- Format: ATX
- Soclu Procesor: Socket AM5
- Tip Memorie: DDR5
- Numar sloturi memorie: 4
- Memorie maxima: 256 GB
- Tip slot interfata grafica: PCIe 5.0 x16
- Chipset audio integrat: Realtek
- Canale audio: 7.1
- Wireless: Da
- Bluetooth: Da
- HDMI: Da
- Thunderbolt: Nu
- Sloturi M.2: 4
- RJ-45 LAN: 1
- Number of memory slots: 4
- Memory slots type: DIMM
- Supported storage drive interfaces: M.2, SATA III
- Number of SATA III connectors: 4
- Number of SATA II connectors: 0
- Number of SATA connectors: 0
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- EPS power connector (8-pin): Yes
- Motherboard chipset family: AMD
- mSATA ports quantity: 0
- Supported memory types: DDR5-SDRAM
- Maximum internal memory: 256 GB
- Number of HDDs supported: 4
- RAID levels: 0, 1, 5, 10
- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
- Motherboard form factor: ATX
- 1st M.2 highest PCI Express generation: 5.0
- 3rd M.2 highest PCI Express generation: 4.0
- Total number of SATA connectors: 4
- Ethernet interface type: 5 Gigabit Ethernet
- ECC сompatibility: Non-ECC
- Number of storage drives supported: 8
- Number of M.2 (M) slots: 4
- Processor socket: Socket AM5
- Supported processor sockets: Socket AM5
- Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- 2nd M.2 largest key size: 2280
- 3rd M.2 largest key size: 2280
- 4th M.2 largest key size: 2280
- 4th M.2 highest PCI Express generation: 4.0
- USB 2.0 connectors: 4
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 4
- Width: 243.8 mm
- Depth: 304.8 mm
- PC health monitoring: CPU, Fan, Temperature, Voltage
- Maximum internal memory supported by processor: 256 GB
- 2nd M.2 highest PCI Express generation: 5.0
- Motherboard chipset: AMD X870E
- 1st M.2 largest key size: 22110
- LAN controller: Realtek RTL8126
- Supported memory clock speed (max): 8400 MHz
- Supported memory clock speeds: 4800,5600,8400 MHz
- USB Type C: N/A
Informații suplimentare
| Greutate | 2,5 kg |
|---|---|
| Dimensiuni | 34,5 × 27,5 × 7,5 cm |
| Garanție |
36 luni |
