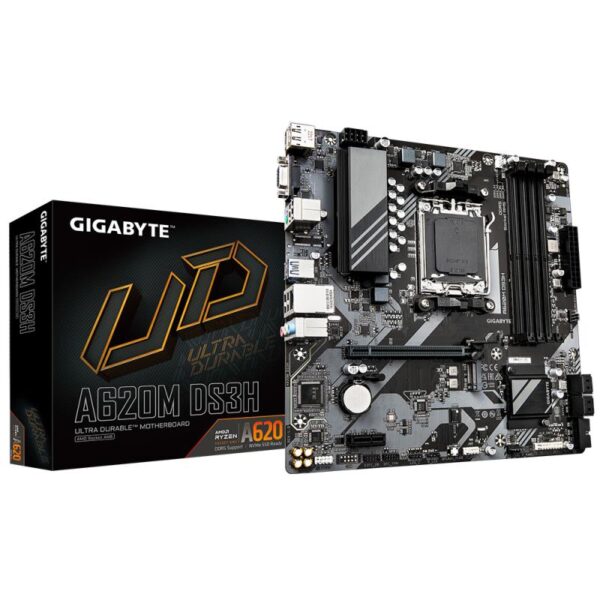

MB GIGABYTE A620M DS3H (rev. 1.0) AM5 4xDDR5 1x Display Port
606,90 lei
7 în stoc
Descriere
MB GIGABYTE A620M DS3H (rev. 1.0) AM5 4xDDR5 1x Display Port, 1x HDMI, 1x D-Sub, Micro ATX https://www.gigabyte.com/Motherboard/A620M-DS3H-rev-10/sp#sp.
Caracteristici
- PCI: 0
- Serial-or-Paralel: No/No
- Video-Connection: HDMI/DP
- Wi-Fi: No
- Onboard-CPU: No
- Country of origin: China
- RAID support: Yes
- Warranty period: 3 year(s)
- Component for: PC
- Package width: 265 mm
- DisplayPort version: 1.4
- USB connector type: USB Type-A, USB Type-C
- Ethernet interface type: Gigabit Ethernet
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
- Package height: 54 mm
- Memory channels: Dual-channel
- Ethernet LAN: Yes
- HDMI ports quantity: 1
- Ethernet LAN (RJ-45) ports: 1
- HDMI version: 2.1
- Processor manufacturer: AMD
- Microphone in: Yes
- Depth: 244 mm
- Products per shipping (inner) case: 1 pc(s)
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
- USB 2.0 ports quantity: 4
- Audio output channels: 7.1 channels
- PCI Express x16 slots: 1
- Supported storage drive types: HDD & SSD
- Number of M.2 (M) slots: 1
- VGA (D-Sub) ports quantity: 1
- PCI Express x1 slots: 1
- Maximum internal memory: 192 GB
- HDCP: Yes
- Product colour: Brown
- DisplayPorts quantity: 1
- Parallel processing technology support: Not supported
- DVI-D ports quantity: 0
- DirectX version: 12.0
- Maximum resolution: 4096 x 2160 pixels
- Windows operating systems supported: Windows 10 x64, Windows 11 x64
- Package depth: 265 mm
- Model Chipset: A620
- Gaming: Nu
- Format: Micro-ATX (mATX)
- Soclu Procesor: Socket AM5
- Tip Memorie: DDR5
- Numar sloturi memorie: 4
- Memorie maxima: 192 GB
- Tip slot interfata grafica: PCIe 4.0 x16
- Chipset audio integrat: Realtek
- Canale audio: 7.1
- Wireless: Nu
- Bluetooth: Nu
- USB Type C: Da
- HDMI: Da
- Thunderbolt: Nu
- Sloturi M.2: 1
- RJ-45 LAN: 1
- Number of memory slots: 4
- Memory slots type: DIMM
- Unbuffered memory: Yes
- Supported storage drive interfaces: M.2, SATA III
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- EPS power connector (8-pin): Yes
- PS/2 ports quantity: 1
- Motherboard form factor: micro ATX
- Motherboard chipset family: AMD
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
- Clear CMOS jumper: Yes
- Width: 244 mm
- Supported memory types: DDR5-SDRAM
- Front panel connector: Yes
- TPM connector: Yes
- RGB LED pin header: Yes
- PC health monitoring: Fan, Temperature, Voltage, Water cooling
- ACPI version: 5.0
- Desktop Management Interface (DMI) version: 2.7
- System Management BIOS (SMBIOS) version: 2.7
- Battery weight: 3 g
- Lithium weight per battery: 0.07 g
- Number of battery cells: 1
- Battery technology: Lithium-Manganese Dioxide (LiMnO2)
- Battery type: CR2032
- Height: 35 mm
- Bundled software: Norton® Internet Security (OEM version) LAN bandwidth management software
- Maximum internal memory supported by processor: 192 GB
- Total number of SATA connectors: 4
- 12V power connector: Yes
- Cables included: SATA
- ECC сompatibility: Non-ECC
- Supported memory clock speed (max): 7600 MHz
- Supported memory module capacities: 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
- Headphone outputs: 3
- RAID levels: 0, 1, 10
- Processor socket: Socket AM5
- Supported processor sockets: Socket AM5
- Compatible processor series: AMD Ryzen 7000 Series
- USB 2.0 connectors: 1
- Number of storage drives supported: 4
- Number of HDDs supported: 1
- Motherboard chipset: AMD A620
- Package weight: 1.07 kg
- Supported memory clock speeds: 4800,5200,5600,6000,6200,6400,6800,7000,7200,7600 MHz
Informații suplimentare
| Greutate | 0,93 kg |
|---|---|
| Dimensiuni | 26,5 × 26,5 × 5,5 cm |
| Garanție |
36 luni |
