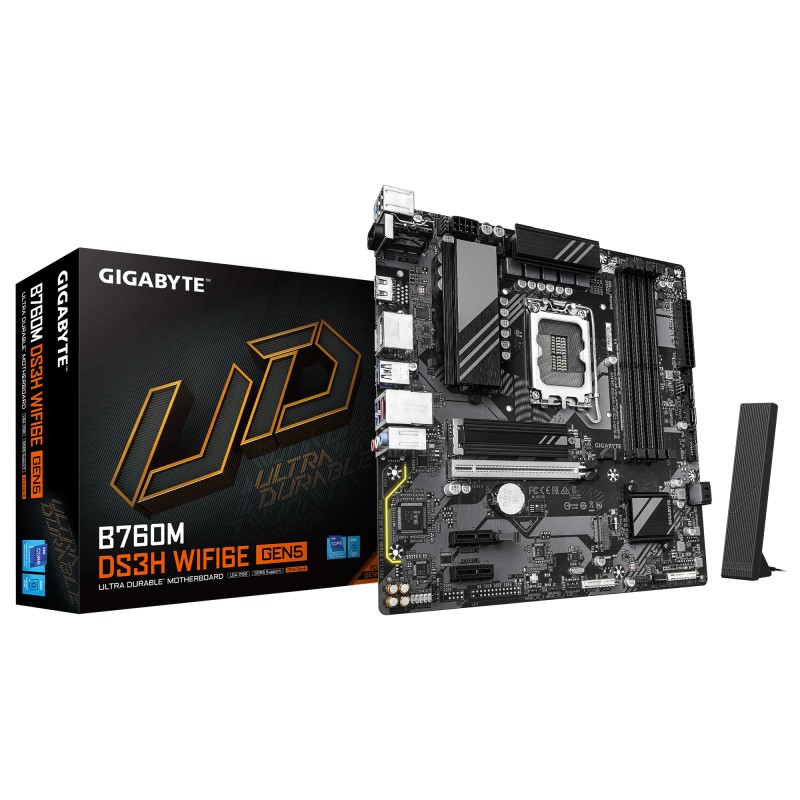

Placa de Baza GIGABYTE B760M DS3H WIFI6E GEN5 LGA1700, 4x DDR5 – B760M DS3H WF6E GEN5
820,00 lei
27 în stoc (poate fi pre-comandat)
Descriere
Placa de Baza GIGABYTE B760M DS3H WIFI6E GEN5 LGA1700, 4x DDR5, 1x HDMI 2x DP, 1x PCIE 5.0 x16 2x PCIE 3.0 x1, 2x M.2, 4x SATA 6GB/s, mATX.
Caracteristici
- PCI: 0
- Serial-or-Paralel: No/No
- Video-Connection: HDMI/DP
- Wi-FI: Yes
- USB3: 4-8
- PCI-Ex16: 1
- Onboard-CPU: No
- RAID support: Yes
- Component for: PC
- Memory channels: Dual-channel
- Processor manufacturer: Intel
- Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
- Ethernet LAN: Yes
- HDMI ports quantity: 1
- HDMI version: 2.1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
- USB 2.0 ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 0
- PCI Express x1 (Gen 3.x) slots: 2
- Audio output channels: 7.1 channels
- DisplayPorts quantity: 2
- Line-in: Yes
- PCI Express x16 (Gen 5.x) slots: 1
- Audio Chip: Realtek ALC897
- Supported storage drive types: HDD & SSD
- Number of M.2 (M) slots: 2
- Cooling type: Passive
- WLAN controller model: Intel Wi-Fi 6E AX210
- HDCP: Yes
- Screws included: Yes
- DisplayPort version: 1.2
- VGA (D-Sub) ports quantity: 0
- Parallel processing technology support: Not supported
- DVI-D ports quantity: 0
- DirectX version: 12.0
- Windows operating systems supported: Windows 10 x64, Windows 11 x64
- Model Chipset: B760
- Gaming: Nu
- Format: Micro-ATX (mATX)
- Soclu Procesor: Socket 1700
- Tip Memorie: DDR5
- Numar sloturi memorie: 4
- Memorie maxima: 256 GB
- Tip slot interfata grafica: PCIe 5.0 x16
- Chipset audio integrat: Realtek
- Canale audio: 7.1
- Wireless: Da
- Bluetooth: Nu
- HDMI: Da
- Thunderbolt: Nu
- Sloturi M.2: 2
- RJ-45 LAN: 1
- Number of memory slots: 4
- Memory slots type: DIMM
- Unbuffered memory: Yes
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- EPS power connector (8-pin): Yes
- PS/2 ports quantity: 1
- Motherboard form factor: micro ATX
- BIOS type: UEFI AMI
- Clear CMOS jumper: Yes
- Supported memory types: DDR5-SDRAM
- Maximum internal memory: 256 GB
- ECC сompatibility: ECC & Non-ECC
- Maximum internal memory per slot: 64 GB
- Number of HDDs supported: 4
- RAID levels: 0, 1, 5, 10
- Front panel connector: Yes
- TPM connector: Yes
- RGB LED pin header: Yes
- WiFi-AP antenna jack: 2
- Ethernet interface type: 2.5 Gigabit Ethernet
- LAN controller: Realtek RTL8125
- Motherboard chipset family: Intel
- PC health monitoring: Fan, Temperature, Voltage, Water cooling
- 2nd M.2 highest PCI Express generation: 4.0
- ACPI version: 5.0
- Desktop Management Interface (DMI) version: 2.7
- System Management BIOS (SMBIOS) version: 2.7
- Lithium weight per battery: 0.07 g
- Antenna included: Yes
- Processor socket: LGA 1700
- Supported processor sockets: LGA 1700
- Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III
- Maximum resolution: 4096 x 2304 pixels
- 12V power connector: Yes
- Number of storage drives supported: 6
- S/PDIF out connector: Yes
- BIOS memory size: 128 Mbit
- Motherboard chipset: Intel B760 Express
- Number of chassis fan connectors: 3
- 1st M.2 largest key size: 2280
- 2nd M.2 largest key size: 2280
- Number of EPS power connectors (8-pin): 1
- Supported memory clock speed (max): 5600 MHz
- Number of CPU fan connectors: 1
- 1st M.2 highest PCI Express generation: 4.0
- Number of RGB LED pin headers: 3
- MB-Socket: 1700
- RAM-Slots: 4
- MB-Format: micro-ATX
- PCI-Ex1: 2
- USB Type C: N/A
- Supported memory clock speeds: 5600,5200,4800,4400 MHz
- Bundled software: Norton® Internet Security (OEM version)
- Microphone in: Yes
- Headphone outputs: 1
- Bluetooth: Yes
- Batteries included: Yes
- Bluetooth version: 5.3
- Ethernet LAN (RJ-45) ports: 1
- Height: 35 mm
- Width: 244 mm
- Depth: 244 mm
- Warranty period: 3 year(s)
- Country of origin: China
- Package height: 68 mm
- Package weight: 1.2 kg
- Power source type: ATX
- Battery weight: 3 g
- Number of battery cells: 1
- Battery technology: Lithium-Manganese Dioxide (LiMnO2)
- Battery type: CR2032
- Product colour: Dark brown
- Products per shipping (inner) case: 1 pc(s)
- Package width: 270 mm
- Package depth: 268 mm
- Weight: 1.1 kg
Informații suplimentare
| Greutate | 1,07 kg |
|---|---|
| Dimensiuni | 27 × 7 × 27 cm |
| Garanție |
36 luni |
