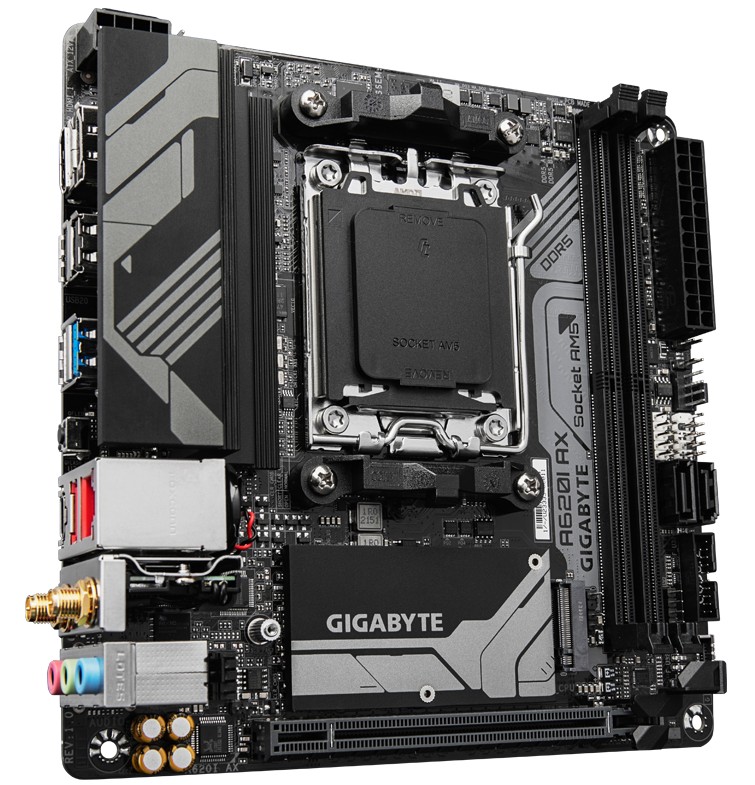

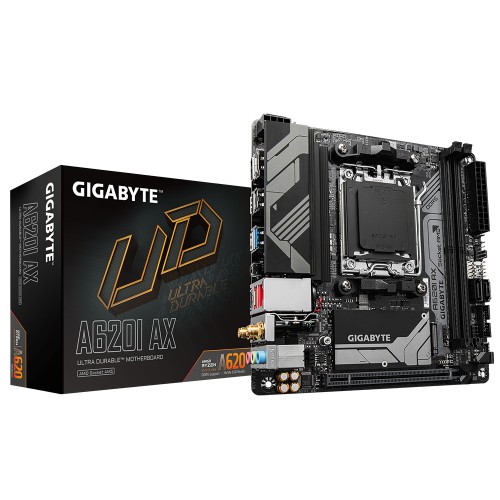

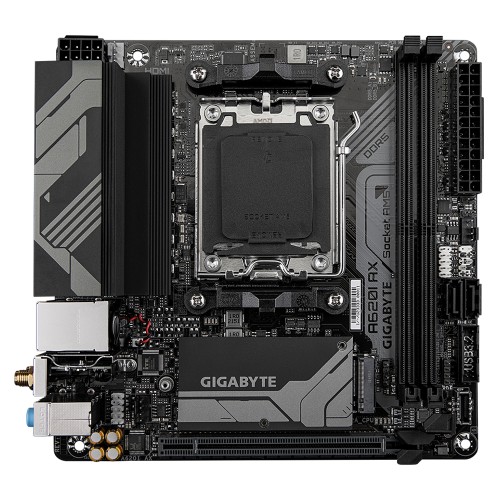

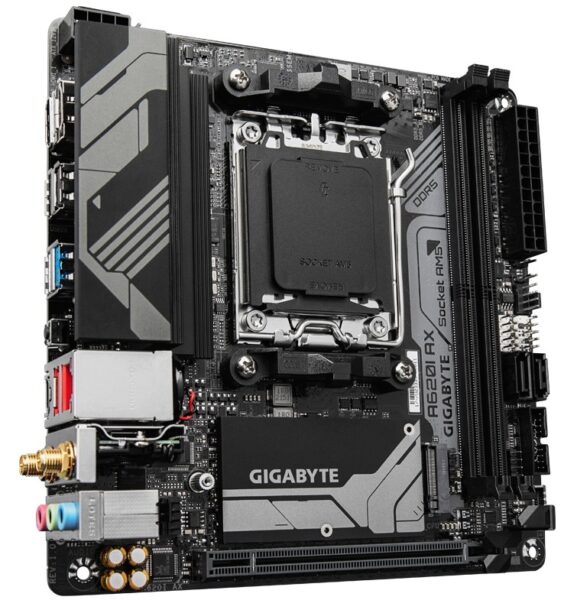

MB GIGABYTE A620I AX (rev. 1.0) AM5, 2xDDR5, 1x Display Port
929,39 lei
1 în stoc
SKU:
A620I AX
Categorie: Placi de baza
Descriere
MB GIGABYTE A620I AX (rev. 1.0) AM5, 2xDDR5, 1x Display Port, 1x HDMI, mini-ITX https://www.gigabyte.com/Motherboard/A620I-AX-rev-10/sp#sp.
Caracteristici
- PCI: 0
- Serial-or-Paralel: No/No
- Video-Connection: HDMI/DP
- Wi-Fi: Yes
- Onboard-CPU: No
- Country of origin: China
- RAID support: Yes
- Warranty period: 3 year(s)
- Component for: PC
- RAID levels: 0, 1
- Package width: 222 mm
- DisplayPort version: 1.4
- USB connector type: USB Type-A, USB Type-C
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
- Package depth: 180 mm
- Memory channels: Dual-channel
- Depth: 170 mm
- BLUETOOTH: Yes
- Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
- Ethernet LAN: Yes
- HDMI ports quantity: 1
- Ethernet LAN (RJ-45) ports: 1
- HDMI version: 2.1
- Bluetooth version: 5.3
- Maximum internal memory: 96 GB
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
- Processor manufacturer: AMD
- Microphone in: Yes
- WLAN controller model: Realtek RTL8852CE
- Products per shipping (inner) case: 1 pc(s)
- Batteries included: Yes
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
- Audio output channels: 7.1 channels
- Number of SATA III connectors: 2
- USB 2.0 ports quantity: 3
- PCI Express x16 slots: 1
- Number of memory slots: 2
- Supported storage drive types: HDD & SSD
- Total number of SATA connectors: 2
- Number of M.2 (M) slots: 1
- HDCP: Yes
- Product colour: Brown
- DisplayPorts quantity: 1
- VGA (D-Sub) ports quantity: 0
- Parallel processing technology support: Not supported
- DVI-D ports quantity: 0
- DirectX version: 12.0
- Maximum resolution: 4096 x 2160 pixels
- Windows operating systems supported: Windows 10 x64, Windows 11 x64
- Package height: 65 mm
- Model Chipset: A620
- Gaming: Nu
- Format: Mini-ITX
- Soclu Procesor: Socket AM5
- Tip Memorie: DDR5
- Numar sloturi memorie: 2
- Memorie maxima: 96 GB
- Tip slot interfata grafica: PCIe 4.0 x16
- Chipset audio integrat: Realtek
- Canale audio: 7.1
- Wireless: Da
- Bluetooth: Da
- USB Type C: Da
- HDMI: Da
- Thunderbolt: Nu
- Sloturi M.2: 1
- RJ-45 LAN: 1
- Memory slots type: DIMM
- Unbuffered memory: Yes
- Supported storage drive interfaces: M.2, SATA III
- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
- Front panel audio connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- EPS power connector (8-pin): Yes
- Motherboard chipset family: AMD
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
- Clear CMOS jumper: Yes
- Supported memory types: DDR5-SDRAM
- Front panel connector: Yes
- RGB LED pin header: Yes
- WiFi-AP antenna jack: 2
- Ethernet interface type: 2.5 Gigabit Ethernet
- PC health monitoring: Fan, Temperature, Voltage, Water cooling
- ACPI version: 5.0
- Desktop Management Interface (DMI) version: 2.7
- System Management BIOS (SMBIOS) version: 2.7
- Battery weight: 3 g
- Lithium weight per battery: 0.07 g
- Number of battery cells: 1
- Battery technology: Lithium-Manganese Dioxide (LiMnO2)
- Battery type: CR2032
- Height: 35 mm
- 12V power connector: Yes
- Cables included: SATA
- ECC сompatibility: Non-ECC
- Supported memory module capacities: 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
- Headphone outputs: 3
- Bundled software: Norton Internet Security
- Chassis intrusion connector: Yes
- Processor socket: Socket AM5
- Supported processor sockets: Socket AM5
- Supported memory clock speed (max): 6400 MHz
- Compatible processor series: AMD Ryzen 7000 Series
- USB 2.0 connectors: 1
- Audio connector: Yes
- Motherboard form factor: mini ITX
- Width: 170 mm
- Maximum internal memory supported by processor: 96 GB
- Number of HDDs supported: 2
- Motherboard chipset: AMD A620
- Supported memory clock speeds: 4400,4800,5200,5600,6000,6200,6400 MHz
- Number of storage drives supported: 3
- Package weight: 860 g
Informații suplimentare
Greutate | 0,78 kg |
---|---|
Dimensiuni | 22,5 × 7 × 18,5 cm |
Garanție |
36 luni |
