Nou

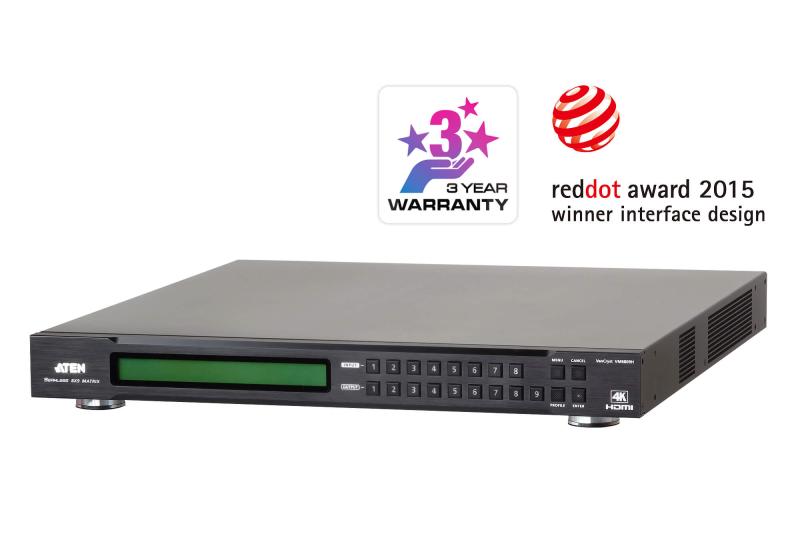

ATEN VM6809H-AT-G. Tipul de produs: Comutator matrice scalare
44.932,00 lei
1 în stoc (poate fi pre-comandat)
Descriere
ATEN VM6809H-AT-G. Tipul de produs: Comutator matrice scalare, Rata de transfer de date: 10,2 Gbit/s, Tact maxim pixel: 340 MHz. Culoare carcasă externă: Negru, Material carcasă: Metal, Capacitate portbagaj: 1U. Consum de energie (max): 79,5 W, Tensiune AC intrare: 100 – 240 V, Frecvență de intrare AC: 50 – 60 Hz. Produse per cutie ambalaj (exterior): 1 buc., Greutate netă cutie ambalaj (exterior): 8,64 kg, Lungime cutie ambalaj (exterior): 575 mm. Lățime: 450,3 mm, Adâncime: 432,4 mm, Înălţime: 44 mm.
Caracteristici
- KVM-Type: Analog
- HDMI version: 2.0
- Products per master (outer) case: 1 pc(s)
- HDCP: Yes
- HDCP version: 2.2
- 3D: Yes
- Input current: 1 A
- RS-232 ports: 1
- Maximum resolution: 4096 x 2160 pixels
- Rack capacity: 1U
- Master (outer) case length: 575 mm
- RJ-45 input ports: 1
- Master (outer) case height: 130 mm
- Data transfer rate: 10.2 Gbit/s
- Master (outer) case gross weight: 8.64 kg
- Rezolutie: 4096 x 2160
- Interfata HDMI: Da
- Numar porturi HDMI: 5-10
- Numar porturi USB: N/A
- Extended display identification data (EDID): Yes
- Housing colour: Black
- EDID management: Yes
- HDMI input ports quantity: 8
- HDMI output ports quantity: 8
- Cables included: AC
- Built-in display: Yes
- Storage temperature (T-T): -20 - 60 °C
- Harmonized System (HS) code: 85299097
- Operating temperature (T-T): 0 - 50 °C
- Compliance certificates: RoHS
- LED indicators: Yes
- Package height: 130 mm
- Housing material: Metal
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Package depth: 575 mm
- Height: 44 mm
- Package weight: 8.64 kg
- Operating relative humidity (H-H): 0 - 80%
- Weight: 7.35 kg
- Package width: 559 mm
- Power consumption (max): 79.5 W
- KVM-Ports: 8
- Depth: 432.4 mm
- Maximum pixel clock: 340 MHz
- Product type: Scaling matrix switcher
- Master (outer) case net weight: 7.35 kg
- Master (outer) case width: 559 mm
- Width: 450.3 mm
Informații suplimentare
| Greutate | 8,64 kg |
|---|---|
| Dimensiuni | 57,5 × 56,5 × 14 cm |
| Garanție |
24 luni |
