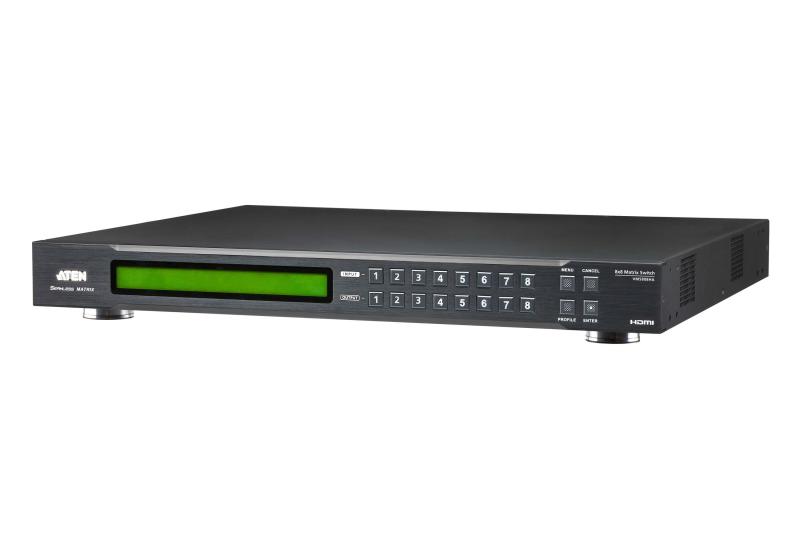

ATEN VM5808H-AT-G. Tipul de produs: Comutator matrice scalare – VM5808HA-AT-G
29.054,00 lei
1 în stoc (poate fi pre-comandat)
Descriere
ATEN VM5808H-AT-G. Tipul de produs: Comutator matrice scalare, Rata de transfer de date: 6,75 Gbit/s, Tact maxim pixel: 225 MHz. Culoare carcasă externă: Negru, Material carcasă: Metal. Consum de energie (tipic): 56,5 W, Tensiune AC intrare: 100 – 240 V, Frecvență de intrare AC: 50 – 60 Hz. Produse per cutie ambalaj (exterior): 1 buc., Greutate netă cutie ambalaj (exterior): 5,83 kg, Lungime cutie ambalaj (exterior): 515 mm. Lățime: 262,3 mm, Adâncime: 432,4 mm, Înălţime: 44 mm.
Caracteristici
- KVM-Type: Analog
- HDCP: Yes
- HDCP version: 1.4
- 3D: Yes
- Input current: 1 A
- Audio (L/R) out: 1
- RS-232 ports: 1
- Rack mounting: Yes
- Rack capacity: 1U
- Firmware upgradeable: Yes
- Master (outer) case length: 575 mm
- Rack mount kit: Yes
- Master (outer) case height: 130 mm
- Maximum resolution: 1920 x 1080 pixels
- Interfata HDMI: Da
- Numar porturi HDMI: 5-10
- Numar porturi USB: N/A
- Extended display identification data (EDID): Yes
- Housing colour: Black
- HDMI input ports quantity: 8
- Operating temperature (T-T): 0 - 40 °C
- Cables included: AC
- Ethernet LAN (RJ-45) ports: 1
- Built-in display: No
- Storage temperature (T-T): -20 - 60 °C
- Country of origin: Taiwan
- Manual: Yes
- Package height: 130 mm
- Housing material: Metal
- On/off switch: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Package depth: 575 mm
- Package weight: 7.04 kg
- Height: 44 mm
- Product type: AV matrix switcher
- Operating relative humidity (H-H): 0 - 80%
- Weight: 5.54 kg
- Package width: 506 mm
- KVM-Ports: 8
- Rezolutie: 1920 x 1080
- Data transfer rate: 6.75 Gbit/s
- Maximum pixel clock: 225 MHz
- Master (outer) case width: 506 mm
- Master (outer) case volume: 37944.57 cm³
- Package volume: 37944.57 cm³
- Depth: 432.4 mm
- Width: 378.2 mm
- Master (outer) case gross weight: 7.04 kg
- Master (outer) case net weight: 5.87 kg
- Heat dissipation: 265 BTU/h
- Heat dissipation (max): 272 BTU/h
- HDMI output ports quantity: 9
- Power consumption (max): 58.1 W
- Power consumption (typical): 56.6 W
Informații suplimentare
| Greutate | 7,27 kg |
|---|---|
| Dimensiuni | 57,5 × 52 × 13,5 cm |
| Garanție |
24 luni |
