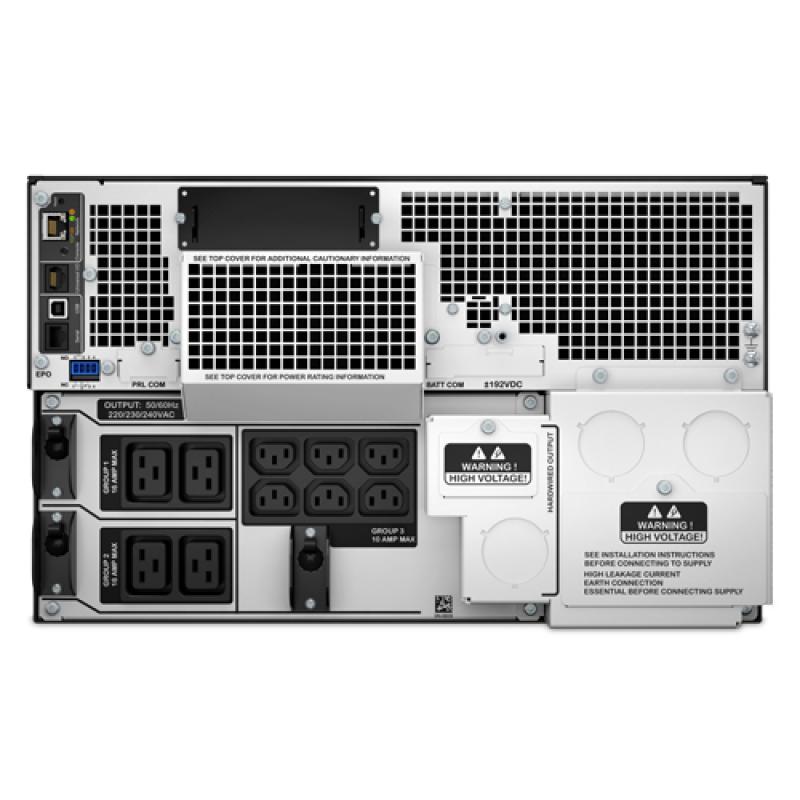

UPS APC Smart-UPS SRT online dubla-conversie 10kVA / 10kW 6 conectori C13 4 conectori C19 extended runtime rackabil 6U.
UPS APC Smart-UPS SRT online dubla-conversie 10kVA / 10kW – SRT10KRMXLI
SKU:
SRT10KRMXLI
Categorie: UPS
Descriere
Caracteristici
- USB Port: Yes
- Capacitate putere UPS: 10000W
- Compliance certificates: RoHS
- Product colour: Black
- LED indicators: Yes
- Warranty card: Yes
- Operating temperature (T-T): 0 - 40 °C
- Quick installation guide: Yes
- Operating altitude: 0 - 3000 m
- Storage relative humidity (H-H): 0 - 95%
- Battery recharge time: 3 h
- Temperature sensor: Yes
- Sustainability certificates: ENERGY STAR
- Package width: 600 mm
- Package height: 461 mm
- Display type: LCD
- Operating relative humidity (H-H): 0 - 95%
- Package depth: 1000 mm
- Rack mount kit: Yes
- Surge protection: Yes
- Audible alarm(s): Yes
- Tip UPS:: Online
- Form Factor:: Rackmount
- Capacitate Rack: 6U
- Ecran LCD:: Da
- Port USB: Da
- Number of output phases: 1
- Serial interface: Yes
- Battery technology: Sealed Lead Acid (VRLA)
- Waveform: Sine
- Output frequency regulation: 50/60 Hz
- Battery life (max): 5 year(s)
- Hot-swap battery: Yes
- Automatic battery test: Yes
- Cold start: Yes
- Storage temperature (T-T): -15 - 45 °C
- Non-operating altitude: 0 - 15000 m
- Software CD: Yes
- Harmonized System (HS) code: 85078000
- Nominal output voltage: 230 V
- Nominal input voltage: 230 V
- Output operation voltage (min): 220 V
- Output operation voltage (max): 240 V
- Emergency Power Off (EPO): Yes
- AC outlet types: C13 coupler, C19 coupler
- Form factor: Rackmount/Tower
- Auto-restart: Yes
- SmartSlot: Yes
- Cables included: USB cable
- UPS topology: Double-conversion (Online)
- Input operation voltage (min): 100 V
- Input frequency: 40 - 70 Hz
- Surge energy rating: 480 J
- Crest factor: 3:1
- Noise level: 55 dB
- Power plug: Hardwire
- AC outlets quantity: 10 AC outlet(s)
- Serial interface type: RJ-45
- Width: 432 mm
- Bracket: Yes
- Packaging content: Web/SNMP Management Card
- Output voltage Total Harmonic Distortion (THD): 3%
- Rack capacity: 6U
- Output power capacity: 10 kVA
- Output power: 10000 W
- Input operation voltage (max): 476 V
- Efficiency: 94.6%
- Number of output IEC jumpers: 3
- Battery capacity: 1805 VAh
- Typical backup time at full load: 3.8 min
- Typical backup time at half load: 11.5 min
- Certification: CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE, REACH
- Depth: 715 mm
- Height: 263 mm
- Weight: 111.8 kg
- Package weight: 130 kg
- Total carbon footprint (kg of CO2e): 22873.91
- Interface: RJ-45 10/100 Base-T
Informații suplimentare
Greutate | 120 kg |
---|---|
Dimensiuni | 100 × 60 × 36 cm |
Garanție |
36 luni |
