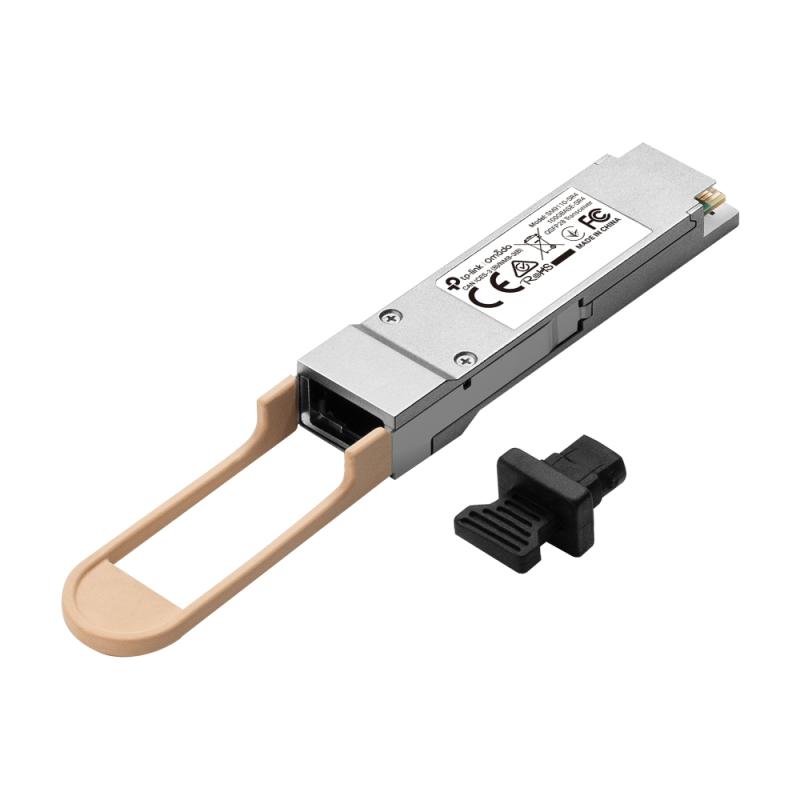

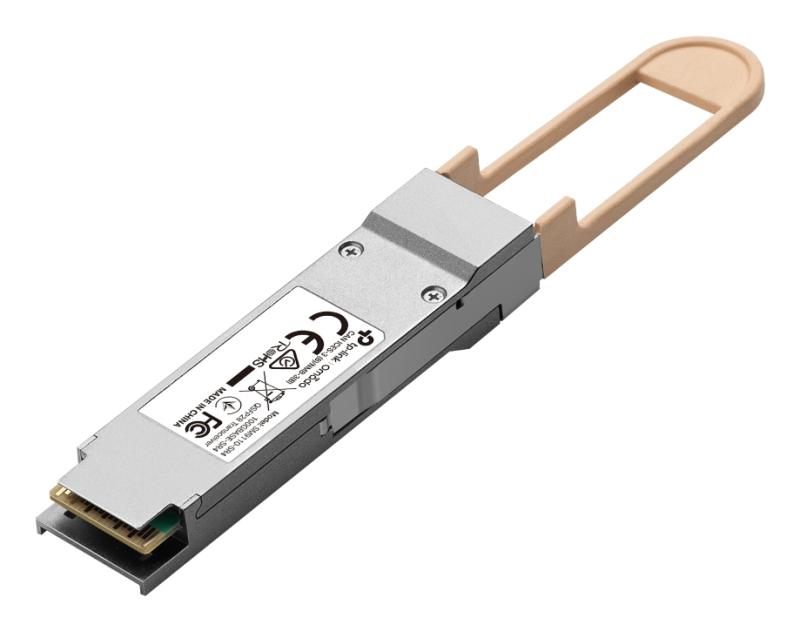

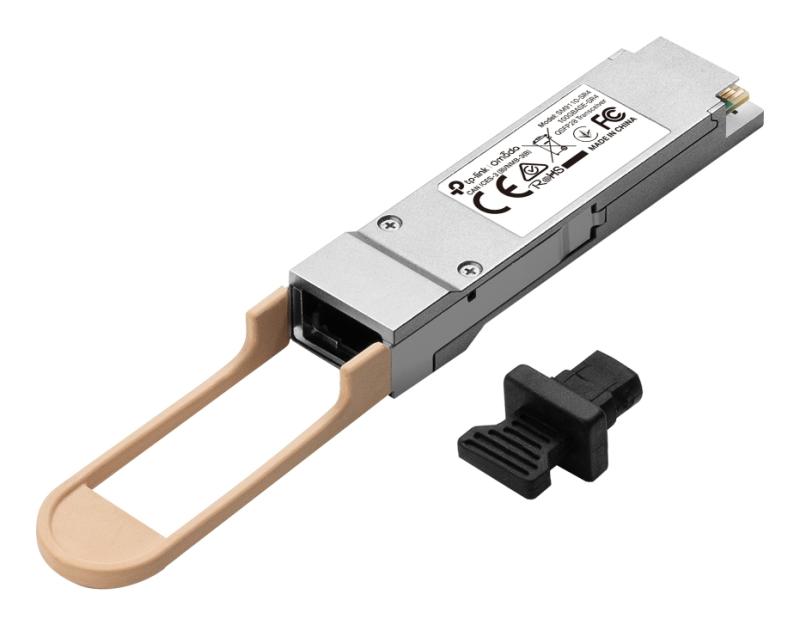

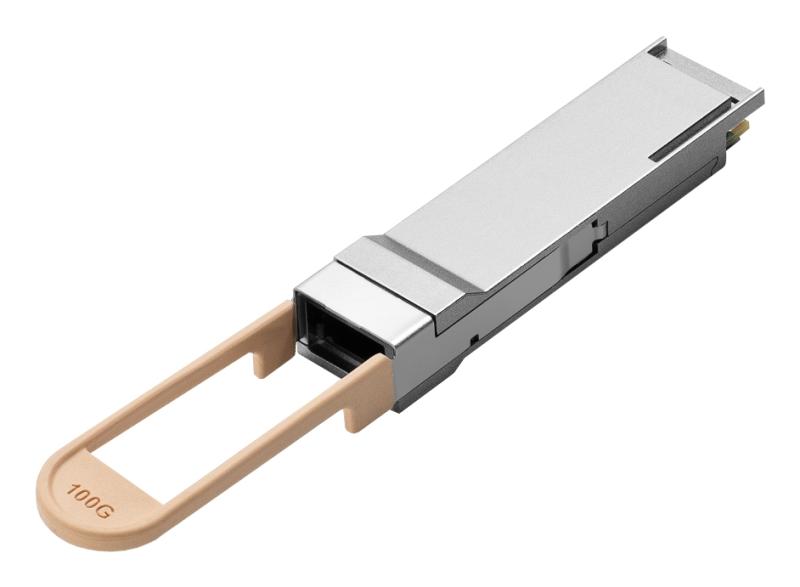

Transceiver TPL Omada 100GBASE-SR4 QSFP28 SPEC: Dual Rate 103.125Gbps – TL-SM9110-SR4
712,00 lei
5 în stoc
Descriere
Transceiver TPL Omada 100GBASE-SR4 QSFP28 SPEC: Dual Rate 103.125Gbps and 41.2Gbps, 850nm MMF (Multimode fiber), MTP/MPO-12, 100m Distance @OM4 at 103.125Gbps (70m Distance @OM3 at 103.125Gbps, 150m Distance @OM4 at 41.2Gbps) FEATURE: Support DDM, Built-in CDR, Hot Swappable.
Caracteristici
- Switch-CM-Type: SFP
- Quantity per pack: 1 pc(s)
- Maximum operating temperature: 70 °C
- Country of origin: China
- Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
- Operating temperature (T-T): 0 - 70 °C
- Storage temperature (T-T): -40 - 85 °C
- Plug and Play: Yes
- Height: 11.7 mm
- Hot-swap: Yes
- User guide: Yes
- Storage relative humidity (H-H): 0 - 85%
- Product colour: Metallic
- Operating relative humidity (H-H): 0 - 85%
- Minimum operating temperature: 0 °C
- Depth: 184 mm
- Width: 124 mm
- SFP transceiver type: Fiber optic
- Maximum data transfer rate: 100000 Mbit/s
- Interface type: QSFP28
- Multi-mode fiber (MMF) supported: Yes
- SFP transceiver standard: SR4
- Wavelength: 850 nm
- Input voltage: 3.3 V
- Single-mode fiber (SMF) supported: No
- Maximum transfer distance: 150 m
- Digital Diagnostics Monitoring (DDM): Yes
- Fiber cable diameters supported (core/cladding): 50/125 µm
- Data transfer rate: 100000 Mbit/s
- Data transfer rate: 100000 Mbit/s
- Fiber optic connector: MPO-12, MTP
- Tx power (min): -8.4 dBmW
- Tx power (max): 2.4 dBmW
- Ethernet interface type: 40 Gigabit Ethernet, 100 Gigabit Ethernet
- Networking standards: IEEE 802.3ba, IEEE 802.3bm
- Fiber ethernet cabling technology: 40GBASE, 100GBASE
- Form factor: QSFP28
- Certification: QSFP28 MSA, SFF-8665, SFF-8636, SFF-8436, CPRI, eCPRI, TCP/IP
Informații suplimentare
| Greutate | 0,097 kg |
|---|---|
| Dimensiuni | 19 × 8 × 3 cm |
| Garanție |
5 ani |
