Vândut

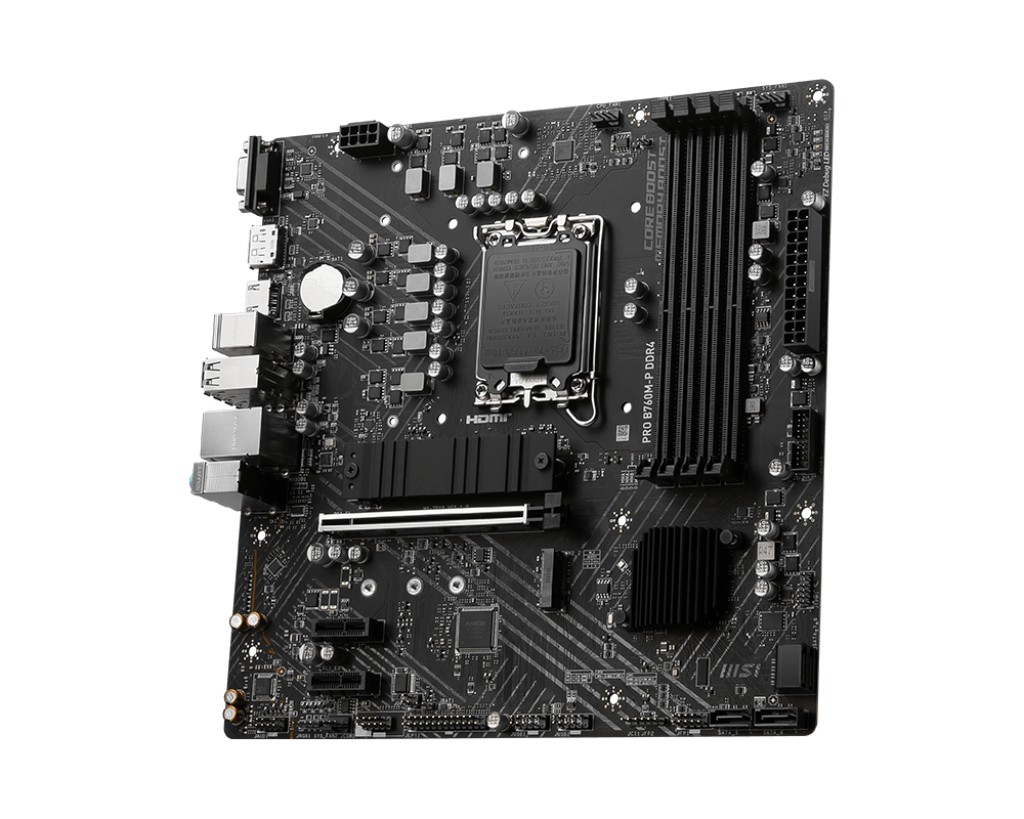

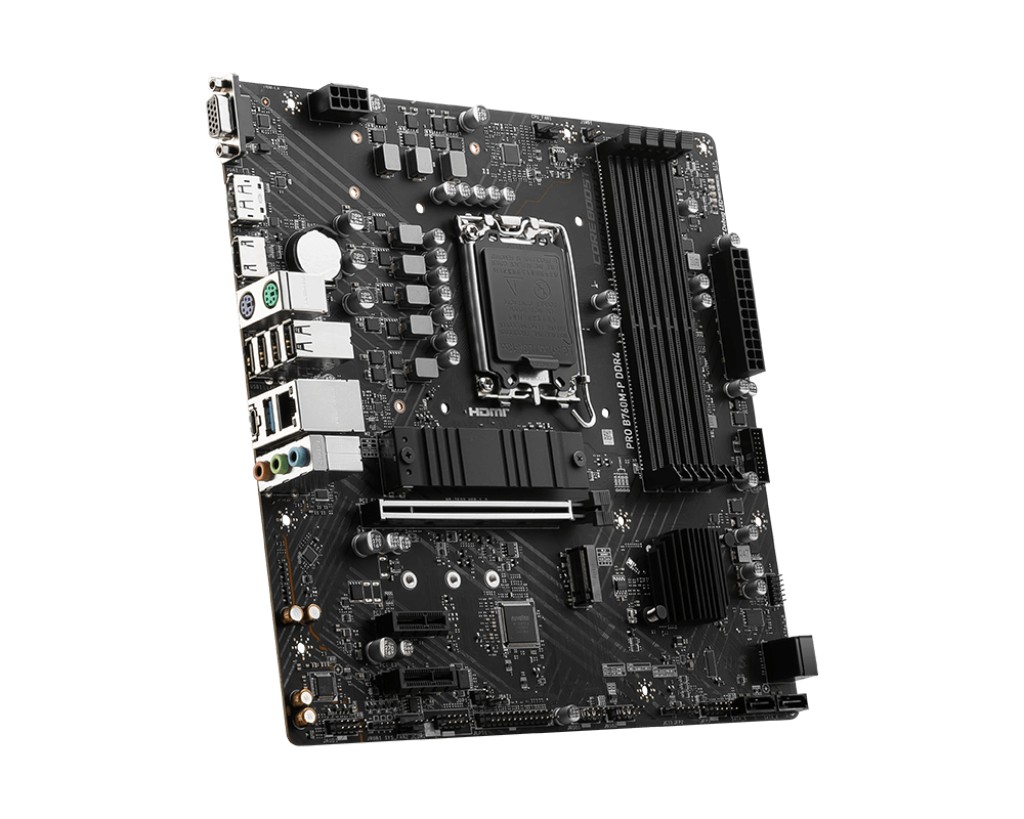

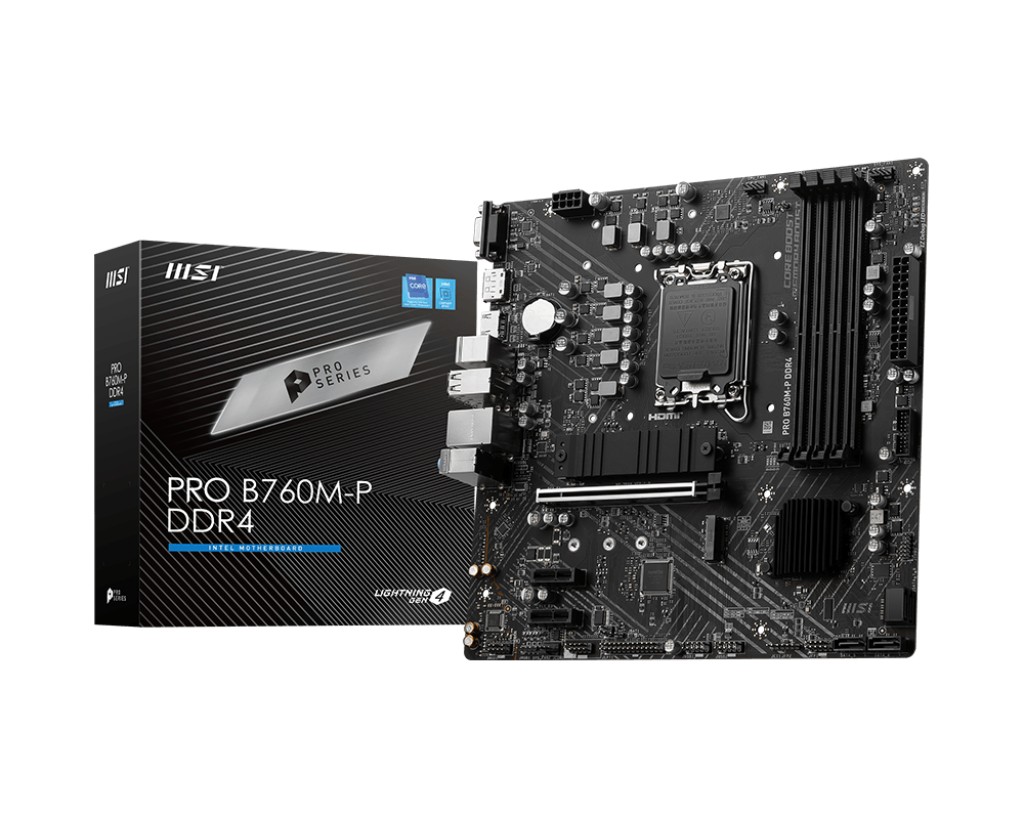

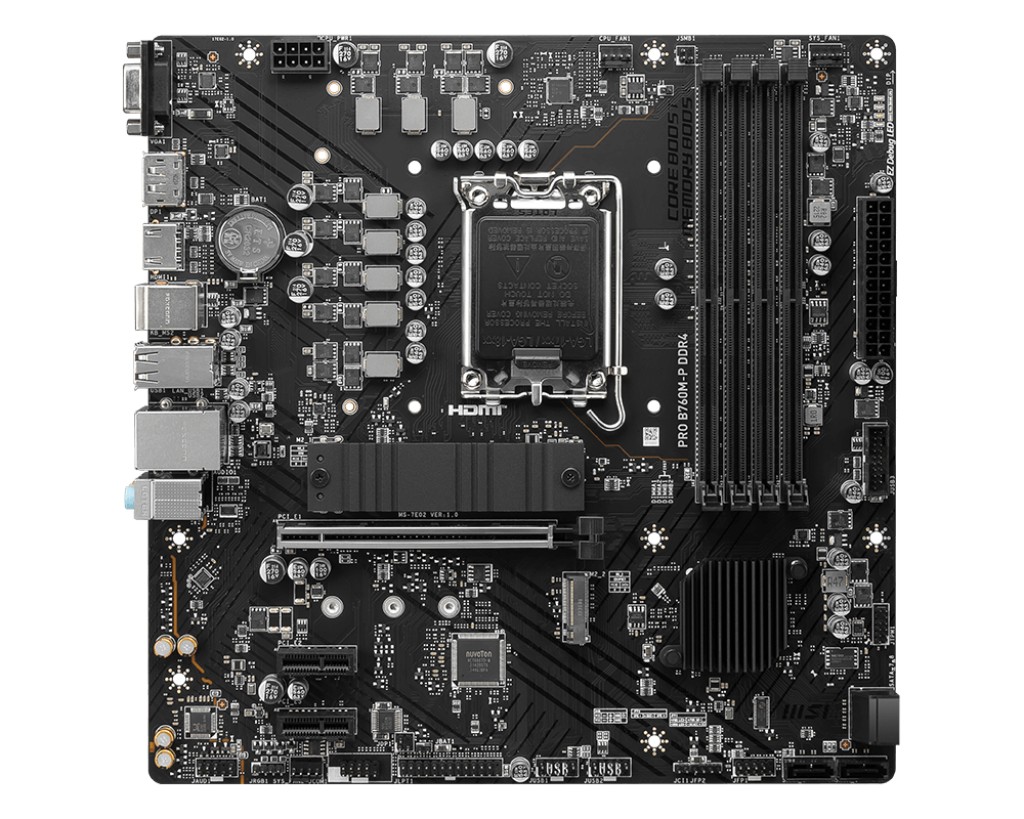

Placa de baza MSI PRO B760M-P DDR4 LGA1700
494,00 lei
Stoc epuizat
Descriere
Placa de baza MSI PRO B760M-P DDR4 LGA1700 SPECIFICATIONS Model Name PRO B760M-P DDR4 CPU Support Supports 12th/ 13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors CPU Socket LGA 1700 Chipset Intel® B760 Chipset Expansion Slots 1x PCIe 4.0 x16 slot 2x PCIe 4.0 x1 slots Display Interface Support 4K@30Hz as specified in HDMI™ 1.4, DisplayPort 1.4, VGA – Requires Processor Graphics Memory Support 4 DIMMs, Dual Channel DDR4-4800+MHz (OC) Storage 2x M.2 Gen4 x4 64Gbps slots, 4x SATA 6Gbps ports USB ports 1x USB 3.2 Gen 2 10Gbps (1 Type-C), 3x USB 3.2 Gen 1 5Gbps (3 Type-A), 8x USB 2.0 LAN Realtek® RTL8111H Gigabit LAN Audio 8-Channel (7.1) HD Audio with Audio Boost.
Caracteristici
- PCI: 0
- Serial-or-Paralel: No/No
- Video-Connection: HDMI/DP
- Wi-FI: No
- Onboard-CPU: No
- RAID support: Yes
- Component for: PC
- Windows operating systems supported: Windows 10, Windows 11
- DisplayPort version: 1.4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
- Memory channels: Dual-channel
- Processor manufacturer: Intel
- Ethernet LAN: Yes
- HDMI ports quantity: 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
- Maximum internal memory: 128 GB
- HDMI version: 1.4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 0
- USB 2.0 ports quantity: 4
- PCI Express x1 (Gen 3.x) slots: 2
- Audio output channels: 7.1 channels
- Audio Chip: Realtek ALC897
- On-board graphics card: No
- Supported memory types: DDR4-SDRAM
- Number of M.2 (M) slots: 2
- DisplayPorts quantity: 1
- VGA (D-Sub) ports quantity: 0
- DVI-D ports quantity: 0
- Model Chipset: B760
- Gaming: Nu
- Format: Micro-ATX (mATX)
- Soclu Procesor: Socket 1700
- Tip Memorie: DDR4
- Numar sloturi memorie: 4
- Memorie maxima: 128 GB
- Tip slot interfata grafica: PCIe 4.0 x16
- Chipset audio integrat: Realtek
- Canale audio: 7.1
- Wireless: Nu
- Bluetooth: Nu
- USB Type C: Da
- HDMI: Da
- Thunderbolt: Nu
- Sloturi M.2: 2
- RJ-45 LAN: 1
- Number of memory slots: 4
- Memory slots type: DIMM
- Supported storage drive interfaces: M.2, SATA III
- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
- Number of SATA III connectors: 4
- Number of SATA II connectors: 0
- Number of SATA connectors: 0
- Front panel audio connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Motherboard form factor: micro ATX
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
- mSATA ports quantity: 0
- RAID levels: 0, 1, 5, 10
- Front panel connector: Yes
- TPM connector: Yes
- RGB LED pin header: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- Motherboard chipset family: Intel
- Processor socket: LGA 1700
- Maximum number of SMP processors: 1
- Supported processor sockets: LGA 1700
- ECC сompatibility: Non-ECC
- Motherboard chipset: Intel B760
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
- USB 2.0 connectors: 4
- System Management BIOS (SMBIOS) version: 3.5
- PCI Express x16 slots: 2
- Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold
- Supported memory clock speed (max): 4800 MHz
- Power source type: ATX
- Width: 243.8 mm
- Depth: 243.8 mm
Informații suplimentare
| Greutate | 0,9 kg |
|---|---|
| Dimensiuni | 30 × 27 × 5,5 cm |
