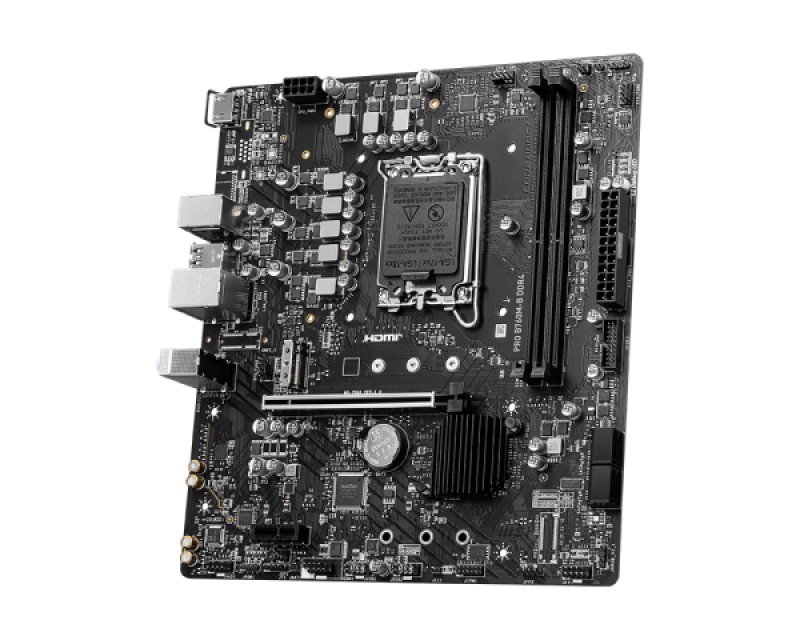

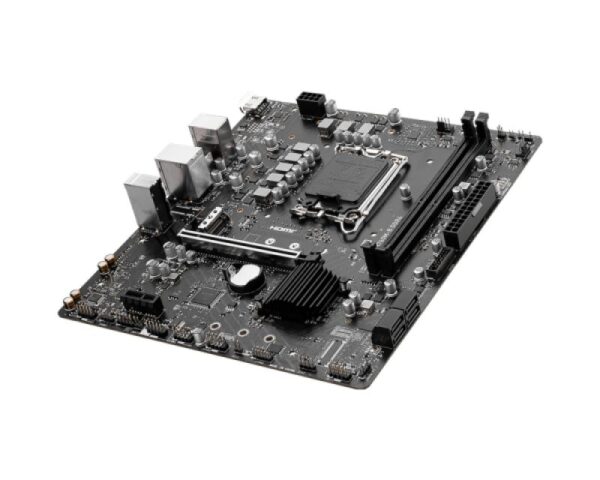

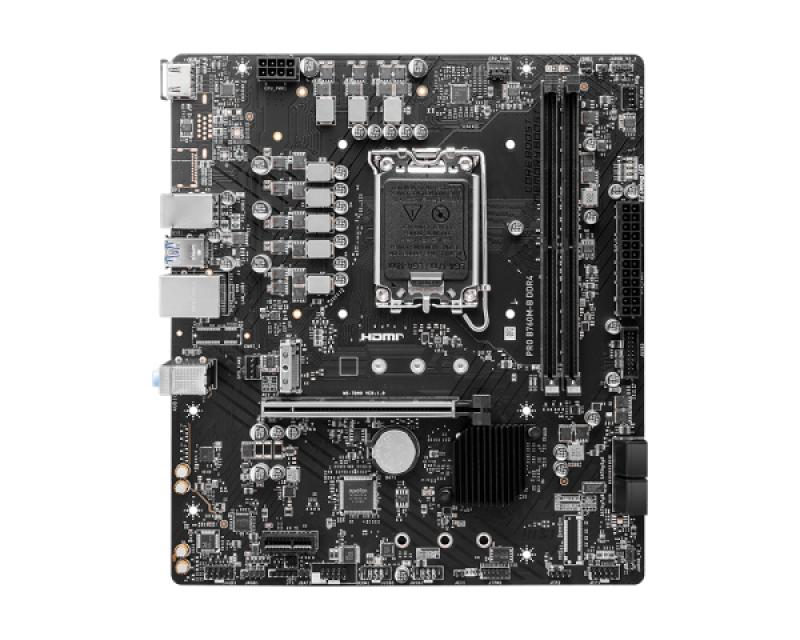

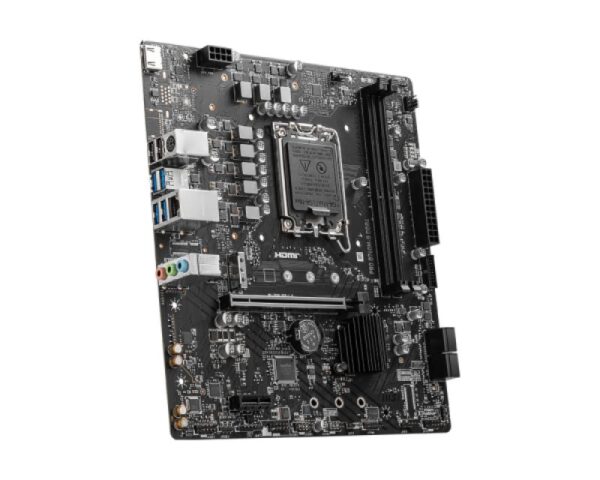

Placa de baza MSI PRO B760M-B DDR4 LGA1700 Socket LGA
397,00 lei
88 în stoc (poate fi pre-comandat)
Descriere
Placa de baza MSI PRO B760M-B DDR4 LGA1700 Socket LGA 1700 Chipset B760 Memorie DDR4 Tip memorie DIMM Frecventa memorie 4800 (OC)/ 4600 (OC)/ 4400 (OC)/ 4266 (OC)/ 4200 (OC)/ 4000 (OC)/ 3800 (OC)/ 3733 (OC)/ 3600 (OC)/ 3466 (OC)/ 3400 (OC)/ 3333 (OC)/ 3200 (OC)/ 3200 (JEDEC)/ 2933 (JEDEC)/ 2666 (JEDEC)/ 2400 (JEDEC)/ 2133 (JEDEC) MHz RAM maxim 128 GB PCI Express 4.0 x16.
Caracteristici
- PCI: 0
- Serial-or-Paralel: No/No
- Video-Connection: HDMI
- Wi-Fi: No
- USB3: 4-8
- PCI-Ex1: 1
- PCI-Ex16: 1
- Onboard-CPU: No
- RAID support: Yes
- Component for: PC
- Windows operating systems supported: Windows 10, Windows 11
- Ethernet interface type: Gigabit Ethernet
- Memory channels: Dual-channel
- Processor manufacturer: Intel
- Maximum internal memory: 64 GB
- Ethernet LAN: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- HDMI ports quantity: 1
- Ethernet LAN (RJ-45) ports: 1
- HDMI version: 2.1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
- USB 2.0 ports quantity: 4
- Audio output channels: 7.1 channels
- PCI Express x16 slots: 1
- Audio Chip: Realtek ALC897
- Number of memory slots: 2
- Supported memory types: DDR4-SDRAM
- VGA (D-Sub) ports quantity: 1
- PCI Express x1 slots: 1
- DVI-D ports quantity: 0
- Model Chipset: B760
- Gaming: Nu
- Format: Micro-ATX (mATX)
- Soclu Procesor: Socket 1700
- Tip Memorie: DDR4
- Numar sloturi memorie: 2
- Memorie maxima: 128 GB
- Tip slot interfata grafica: PCIe 4.0 x16
- Chipset audio integrat: Realtek
- Canale audio: 7.1
- Wireless: Nu
- Bluetooth: Nu
- HDMI: Da
- Thunderbolt: Nu
- Sloturi M.2: 2
- RJ-45 LAN: 1
- Memory slots type: DIMM
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
- Front panel audio connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Motherboard form factor: micro ATX
- RAID levels: 0, 1, 5, 10
- Front panel connector: Yes
- TPM connector: Yes
- RGB LED pin header: Yes
- Motherboard chipset family: Intel
- Power source type: ATX
- Processor socket: LGA 1700
- Maximum number of SMP processors: 1
- Supported processor sockets: LGA 1700
- ECC сompatibility: Non-ECC
- Motherboard chipset: Intel B760
- Number of SATA connectors: 4
- Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold
- Depth: 243.8 mm
- Supported storage drive interfaces: M.2, SATA
- Width: 220 mm
- Supported memory clock speed (max): 4800 MHz
- MB-Socket: 1700
- MB-Format: micro-ATX
- RAM-Slots: 2
- USB Type C: N/A
- Supported memory clock speeds: 2133,2400,2666,2933,3200,3333,3400,3466,3600,3733,3800,4000,4200,4266,4400,4600,4800 MHz
Informații suplimentare
| Greutate | 0,76 kg |
|---|---|
| Dimensiuni | 27 × 26 × 6,5 cm |
| Garanție |
36 luni |
