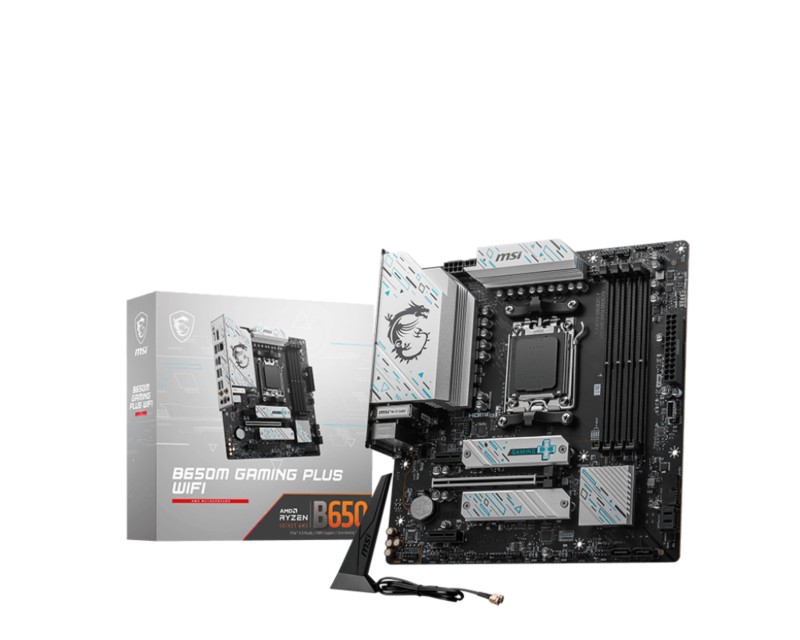

Placa de Baza MSI B650M GAMING PLUS WIFI AM5, 4x DDR5
831,00 lei
Disponibil pentru pre-comenzi
Descriere
Placa de Baza MSI B650M GAMING PLUS WIFI AM5, 4x DDR5, 1x HDMI 1x DP, 1x PCIE 5.0 x16 2x PCIE 4.0 x1, 2x M.2, 4x SATA 6GB/s, mATX.
Caracteristici
- PCI: 0
- Serial-or-Paralel: No/No
- Video-Connection: HDMI
- Wi-FI: Yes
- USB3: 4-8
- Onboard-CPU: No
- RAID support: Yes
- Component for: PC
- DisplayPort version: 1.4
- Memory channels: Dual-channel
- Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
- Ethernet LAN: Yes
- HDMI ports quantity: 1
- HDMI version: 2.1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
- Processor manufacturer: AMD
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- Audio output channels: 7.1 channels
- Audio Chip: Realtek ALC897
- Supported storage drive types: HDD & SSD
- Number of M.2 (M) slots: 2
- S/PDIF out port: Yes
- Maximum internal memory: 192 GB
- USB 3.2 Gen 2x2 Type-C ports quantity: 0
- DisplayPorts quantity: 1
- VGA (D-Sub) ports quantity: 0
- Supported storage drive interfaces: M.2, PCI Express
- Parallel processing technology support: Not supported
- DVI-D ports quantity: 0
- Windows operating systems supported: Windows 10 x64, Windows 11 x64
- Model Chipset: B650
- Gaming: Da
- Format: Micro-ATX (mATX)
- Soclu Procesor: Socket AM5
- Tip Memorie: DDR5
- Numar sloturi memorie: 4
- Memorie maxima: 192 GB
- Tip slot interfata grafica: PCIe 5.0 x16
- Chipset audio integrat: Realtek
- Canale audio: 7.1
- Wireless: Da
- Bluetooth: Da
- HDMI: Da
- Thunderbolt: Nu
- Sloturi M.2: 2
- RJ-45 LAN: 1
- Number of memory slots: 4
- Unbuffered memory: Yes
- Number of SATA III connectors: 4
- Number of SATA II connectors: 0
- Number of SATA connectors: 0
- Front panel audio connector: Yes
- CPU fan connector: Yes
- Motherboard form factor: micro ATX
- Motherboard chipset family: AMD
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
- Supported memory types: DDR5-SDRAM
- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
- Front panel connector: Yes
- TPM connector: Yes
- RGB LED pin header: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- Maximum internal memory supported by processor: 192 GB
- ECC сompatibility: Non-ECC
- Supported memory clock speed (max): 7200 MHz
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
- Chassis intrusion connector: Yes
- Processor socket: Socket AM5
- Supported processor sockets: Socket AM5
- USB 2.0 connectors: 4
- ACPI version: 6.4
- System Management BIOS (SMBIOS) version: 3.5
- Motherboard chipset: AMD B650
- RAID levels: 0, 5, 10
- PCI-Ex1: 0
- RAM-Slots: 4
- MB-Format: micro-ATX
- USB Type C: N/A
- MB-Socket: AM5
- PCI-Ex16: 5
- Supported memory clock speeds: 7200, 7000, 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz
- Bluetooth: Yes
- Bluetooth version: 5.3
- Ethernet LAN (RJ-45) ports: 1
- Cables included: SATA
- Width: 243.8 mm
- Depth: 243.8 mm
Informații suplimentare
| Greutate | 1,609 kg |
|---|---|
| Dimensiuni | 27 × 7 × 28 cm |
| Garanție |
36 luni |
