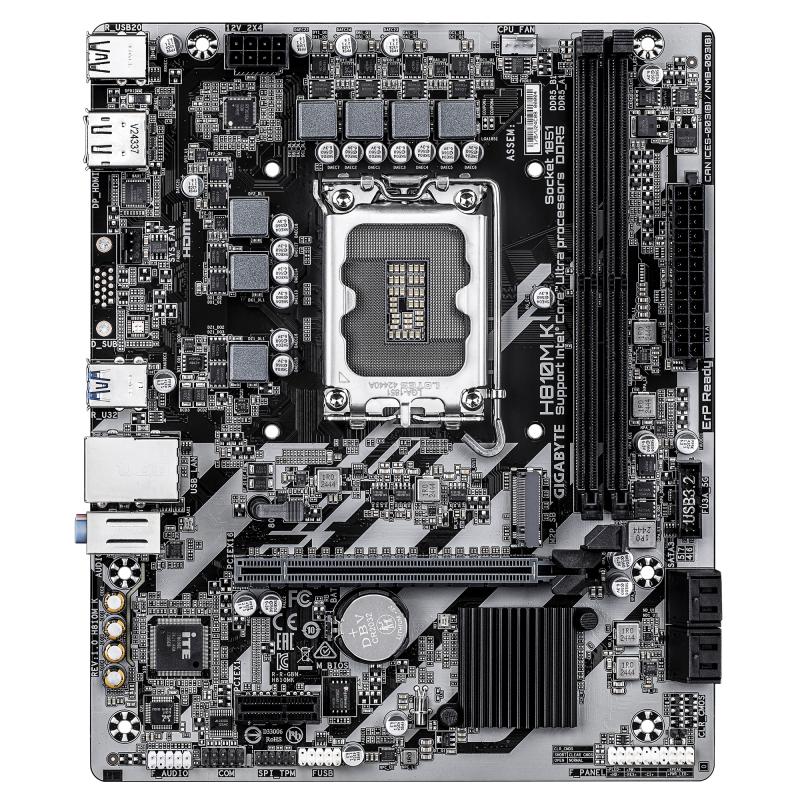

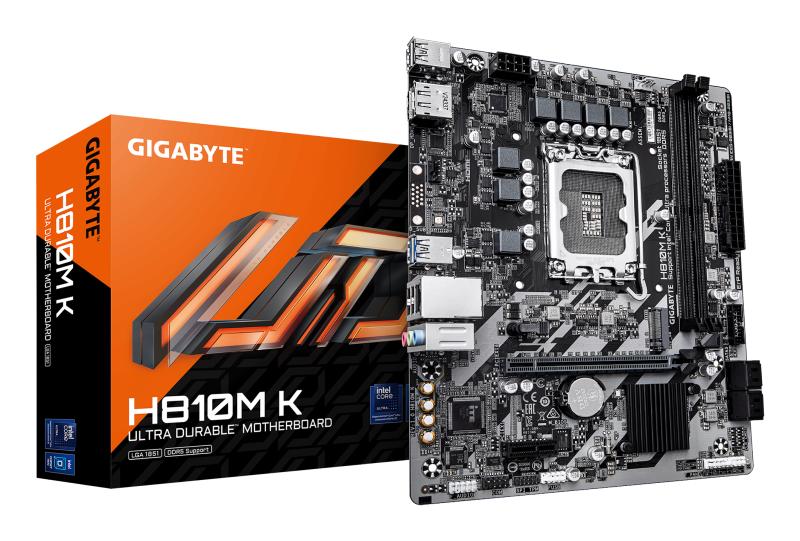

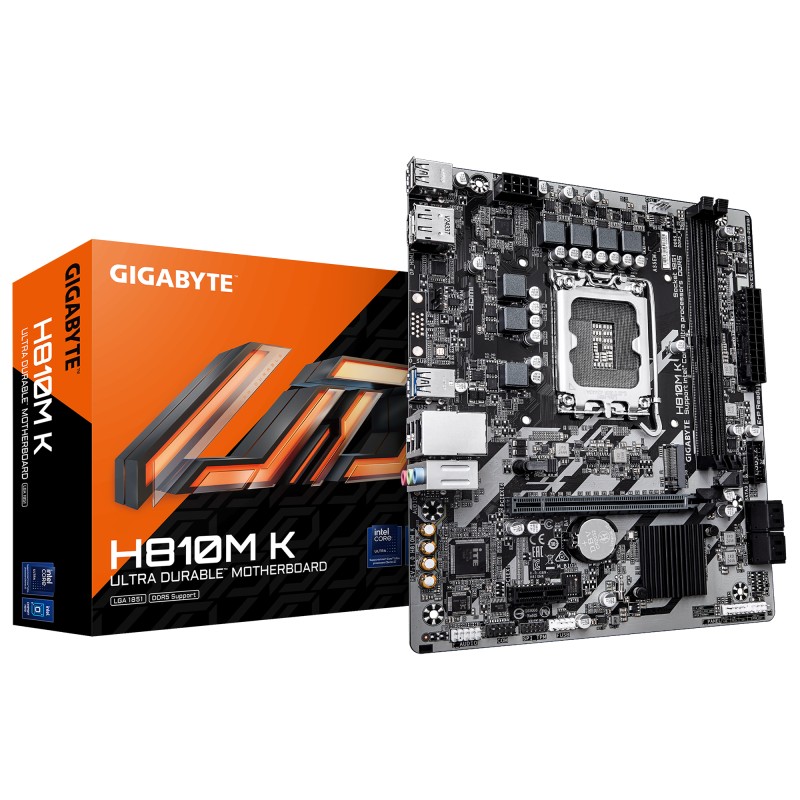

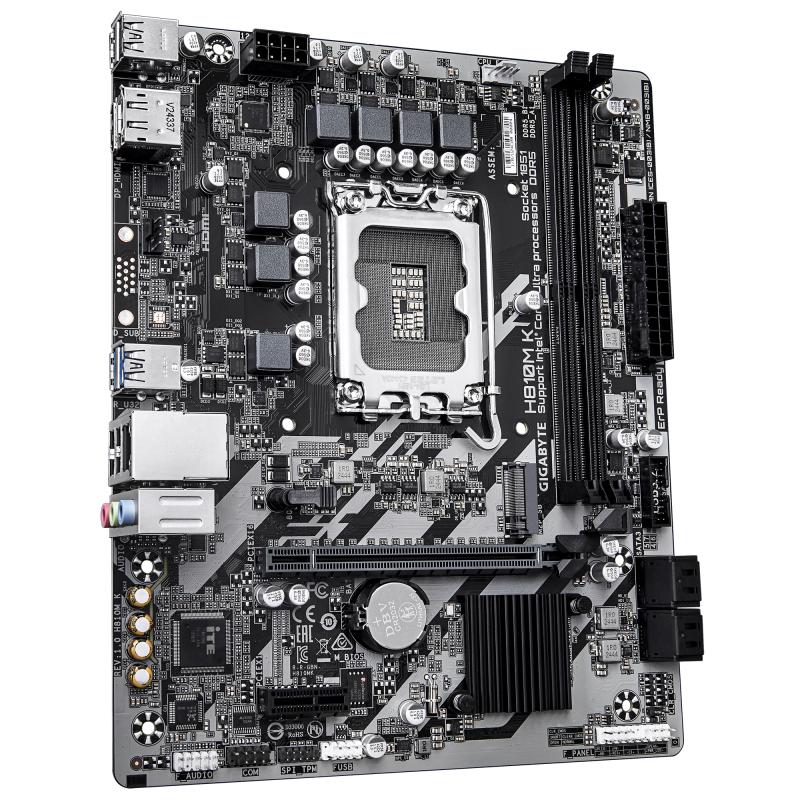

Placa de Baza GIGABYTE H810M K LGA1851, 2x DDR5, 1x DP 1x HDMI
578,00 lei
3 în stoc (poate fi pre-comandat)
Descriere
Placa de Baza GIGABYTE H810M K LGA1851, 2x DDR5, 1x DP 1x HDMI, 1x PCIE 4.0 x16 1x PCIE 3.0 x1, 1x M.2, 4x SATA 6GB/s, mATX.
Caracteristici
- PCI: 0
- Serial-or-Paralel: No/No
- Video-Connection: HDMI/DP
- Wi-FI: No
- HDMI: 1
- USB3: 4-8
- PCI-Ex1: 1
- PCI-Ex16: 1
- Gaming: Nu
- Bluetooth: Nu
- Onboard-CPU: No
- HDMI: Da
- RAID support: Yes
- Component for: PC
- Ethernet interface type: Gigabit Ethernet
- Memory channels: Dual-channel
- Processor manufacturer: Intel
- Ethernet LAN: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- HDMI ports quantity: 1
- HDMI version: 2.1
- Maximum internal memory: 128 GB
- Thunderbolt: Nu
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
- USB 2.0 ports quantity: 4
- Audio output channels: 7.1 channels
- PCI Express x1 (Gen 3.x) slots: 1
- Line-in: Yes
- Audio Chip: Realtek ALC897
- PCI Express x16 (Gen 4.x) slots: 1
- Number of memory slots: 2
- Supported storage drive types: HDD & SSD
- LAN controller: Realtek RTL8111H
- Cooling type: Passive
- Number of M.2 (M) slots: 1
- HDCP: Yes
- Screws included: Yes
- DisplayPort version: 2.1
- DisplayPorts quantity: 1
- VGA (D-Sub) ports quantity: 0
- Sloturi memorie: 2
- Parallel processing technology support: Not supported
- DVI-D ports quantity: 0
- DirectX version: 12.0
- Maximum resolution: 4096 x 2160 pixels
- Windows operating systems supported: Windows 10 x64, Windows 11 x64
- Model Chipset: H810
- Gaming: Nu
- Soclu Procesor: Socket 1851
- Tip Memorie: DDR5
- Numar sloturi memorie: 2
- Memorie maxima: 128 GB
- Tip slot interfata grafica: PCIe 4.0 x16
- Chipset audio integrat: Realtek
- Canale audio: 7.1
- Wireless: Nu
- Bluetooth: Nu
- HDMI: Da
- Thunderbolt: Nu
- Sloturi M.2: 1
- RJ-45 LAN: 1
- Memory slots type: DIMM
- Unbuffered memory: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- EPS power connector (8-pin): Yes
- Motherboard form factor: micro ATX
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
- Clear CMOS jumper: Yes
- Processor socket: LGA 1851 (Socket V1)
- Supported processor sockets: LGA 1851
- Supported memory types: DDR5-SDRAM
- ECC сompatibility: ECC & Non-ECC
- Maximum internal memory per slot: 64 GB
- Number of HDDs supported: 4
- RAID levels: 0, 1, 5, 10
- Front panel connector: Yes
- TPM connector: Yes
- Motherboard chipset family: Intel
- PC health monitoring: Fan, Temperature, Voltage, Water cooling
- ACPI version: 5.0
- Desktop Management Interface (DMI) version: 2.7
- System Management BIOS (SMBIOS) version: 2.7
- Lithium weight per battery: 0.07 g
- Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III
- Serial port headers: 1
- Compatible processor series: Intel Core Ultra (Series 2)
- Supported memory clock speed (max): 6400 MHz
- 1st M.2 largest key size: 2280
- USB 2.0 connectors: 1
- Number of storage drives supported: 5
- Number of chassis fan connectors: 1
- Number of EPS power connectors (8-pin): 1
- Number of CPU fan connectors: 1
- Motherboard chipset: Intel H810
- 1st M.2 highest PCI Express generation: 4.0
- MB-Format: micro-ATX
- RAM-Slots: 2
- Numar sloturi memorie: 2
- Memorie maxima: N/A
- Canale audio: N/A
- Sloturi M.2: 1
- RJ-45 LAN: N/A
- Chipset audio integrat: Realtek
- USB Type C: N/A
- Soclu Procesor: Socket 1851
- Tip Memorie: DDR5
- Wireless: N/A
- USB Type C: N/A
- MB-Socket: LGA1851
- Recomandat Gaming: Da
- Tip slot interfata grafica: PCIe 4.0 x16
- Supported memory clock speeds: 5600,6400 MHz
- Model Chipset: H810
- Microphone in: Yes
- Headphone outputs: 1
- Batteries included: Yes
- Height: 35 mm
- Warranty period: 3 year(s)
- Country of origin: China
- Package height: 54 mm
- Power source type: ATX
- Battery weight: 3 g
- Number of battery cells: 1
- Battery technology: Lithium-Manganese Dioxide (LiMnO2)
- Battery type: CR2032
- Product colour: Dark brown
- Products per shipping (inner) case: 1 pc(s)
- Package width: 265 mm
- Package depth: 265 mm
- Width: 226 mm
- Depth: 185 mm
- Package weight: 766.6 g
- Weight: 688 g
- RJ-45: 1
- Socket procesor: 1851
- SATA III: 4
- USB 2.0: 4
- RAID: 0, 1, 5, 10
- Memorie Suportata: DDR5
- Tehnologie: Dual channel
- PCI Express 4.0: 1 (x16)
- Header USB 3.0: Da
- Suport audio: 7.1
- Bundled software: Norton® Internet Security (OEM version) LAN bandwidth management software
- DisplayPort: 1
- Placa video integrata: Necesita procesor cu tehnologia Intel Integrated Graphics
- Chipset: H810
- Producator chipset: Intel
- Procesoare suportate: Intel Core Ultra din a doua serie
- Capacitate maxima memorie RAM: 128 GB
- USB 3.2 Gen1 tip A: 2
- Chipset audio: Realtek ALC897
- Interfata grafica: PCI Express x16 4.0
- Audio jacks: 3
- Format: mATX
- Placa retea integrata: 1 Gbps
- Chipset retea: Realtek GbE
- BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
- NGFF (M.2): 1
- Frecvente suportate: 6400/5600 MHz
- Alte specificatii: Suporta profil de memorie XMP
- PCI Express x1: 1
- Dimensiuni (L x l, cm): 22.6 x 18.5 cm
- Format: Micro-ATX
Informații suplimentare
| Greutate | 0,691 kg |
|---|---|
| Dimensiuni | 27 × 23,5 × 5 cm |
| Garanție |
36 luni |
