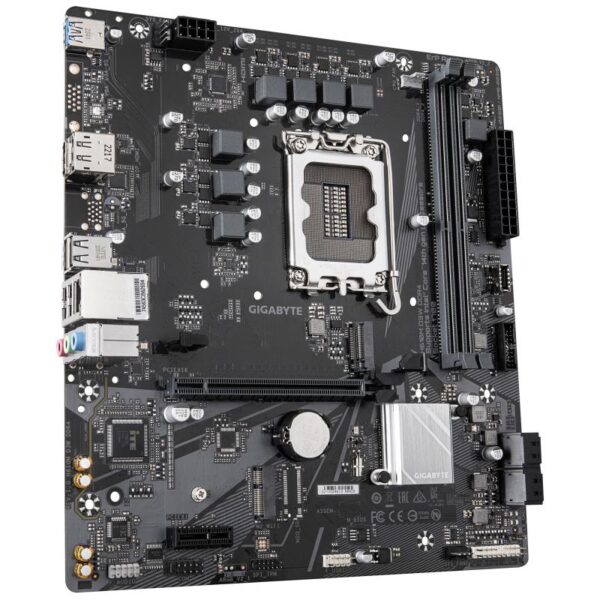

Placa de Baza GIGABYTE H610M D3W DDR4 LGA1700, 2x DDR4
437,92 lei
2 în stoc (poate fi pre-comandat)
SKU:
H610M D3W DDR4
Categorie: Placi de baza
Descriere
Placa de Baza GIGABYTE H610M D3W DDR4 LGA1700, 2x DDR4, 1x DP 1x HDMI, 1x PCIE 4.0 x16 1x PCIE 3.0 x1 2x M.2, 4x SATA 6GB/s, mATX.
Caracteristici
- PCI: 0
- Serial-or-Paralel: No/No
- Video-Connection: HDMI
- Wi-Fi: No
- USB3: 4-8
- PCI-Ex1: 1
- PCI-Ex16: 1
- Onboard-CPU: No
- Country of origin: China
- Warranty period: 3 year(s)
- Component for: PC
- Windows operating systems supported: Windows 10, Windows 11
- Package width: 265 mm
- Ethernet interface type: Gigabit Ethernet
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
- Weight: 770 g
- Package height: 54 mm
- Memory channels: Dual-channel
- Product colour: Grey
- Processor manufacturer: Intel
- Maximum internal memory: 64 GB
- Ethernet LAN: Yes
- HDMI ports quantity: 1
- Ethernet LAN (RJ-45) ports: 1
- HDMI version: 2.1
- Microphone in: Yes
- Products per shipping (inner) case: 1 pc(s)
- Batteries included: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
- USB 2.0 ports quantity: 4
- Audio output channels: 7.1 channels
- PCI Express x1 (Gen 3.x) slots: 1
- Line-in: Yes
- Audio Chip: Realtek ALC897
- PCI Express x16 (Gen 4.x) slots: 1
- Number of memory slots: 2
- Supported storage drive types: HDD & SSD
- Supported memory types: DDR4-SDRAM
- LAN controller: Realtek RTL8111H
- Number of M.2 (M) slots: 1
- Screws included: Yes
- DisplayPort version: 1.2
- DisplayPorts quantity: 1
- VGA (D-Sub) ports quantity: 0
- Parallel processing technology support: Not supported
- DVI-D ports quantity: 0
- DirectX version: 12.0
- Package depth: 265 mm
- Model Chipset: H610
- Gaming: Nu
- Format: Micro-ATX (mATX)
- Soclu Procesor: Socket 1700
- Tip Memorie: DDR4
- Numar sloturi memorie: 2
- Memorie maxima: 64 GB
- Tip slot interfata grafica: PCIe 4.0 x16
- Chipset audio integrat: Realtek
- Canale audio: 7.1
- Wireless: Nu
- Bluetooth: Nu
- HDMI: Da
- Thunderbolt: Nu
- Sloturi M.2: 2
- RJ-45 LAN: 1
- Memory slots type: DIMM
- Unbuffered memory: Yes
- Supported storage drive interfaces: M.2, SATA III
- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Number of chassis fan connectors: 2
- EPS power connector (8-pin): Yes
- Motherboard form factor: micro ATX
- BIOS type: UEFI AMI
- Clear CMOS jumper: Yes
- Width: 244 mm
- ECC сompatibility: ECC & Non-ECC
- Number of HDDs supported: 4
- Front panel connector: Yes
- TPM connector: Yes
- Motherboard chipset family: Intel
- PC health monitoring: Fan, Temperature, Voltage, Water cooling
- Power source type: ATX
- ACPI version: 5.0
- Desktop Management Interface (DMI) version: 2.7
- System Management BIOS (SMBIOS) version: 2.7
- Battery weight: 3 g
- Lithium weight per battery: 0.07 g
- Number of battery cells: 1
- Battery technology: Lithium-Manganese Dioxide (LiMnO2)
- Battery type: CR2032
- Height: 35 mm
- Bundled software: Norton® Internet Security (OEM version) LAN bandwidth management software
- Processor socket: LGA 1700
- Supported processor sockets: LGA 1700
- BIOS memory size: 128 Mbit
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
- Serial port headers: 1
- 1st M.2 largest key size: 2280
- USB 2.0 connectors: 1
- Supported memory clock speeds: 2133,2400,2666,2933,3000,3200 MHz
- Number of storage drives supported: 5
- Number of EPS power connectors (8-pin): 1
- Supported memory clock speed (max): 3200 MHz
- Motherboard chipset: Intel H610
- Number of CPU fan connectors: 1
- 1st M.2 highest PCI Express generation: 3.0
- Maximum internal memory per slot: 32 GB
- Depth: 220 mm
- MB-Socket: 1700
- MB-Format: micro-ATX
- RAM-Slots: 2
- USB Type C: N/A
- Package weight: 800 g
Informații suplimentare
Greutate | 0,76 kg |
---|---|
Dimensiuni | 27 × 27 × 6 cm |
Garanție |
36 luni |
