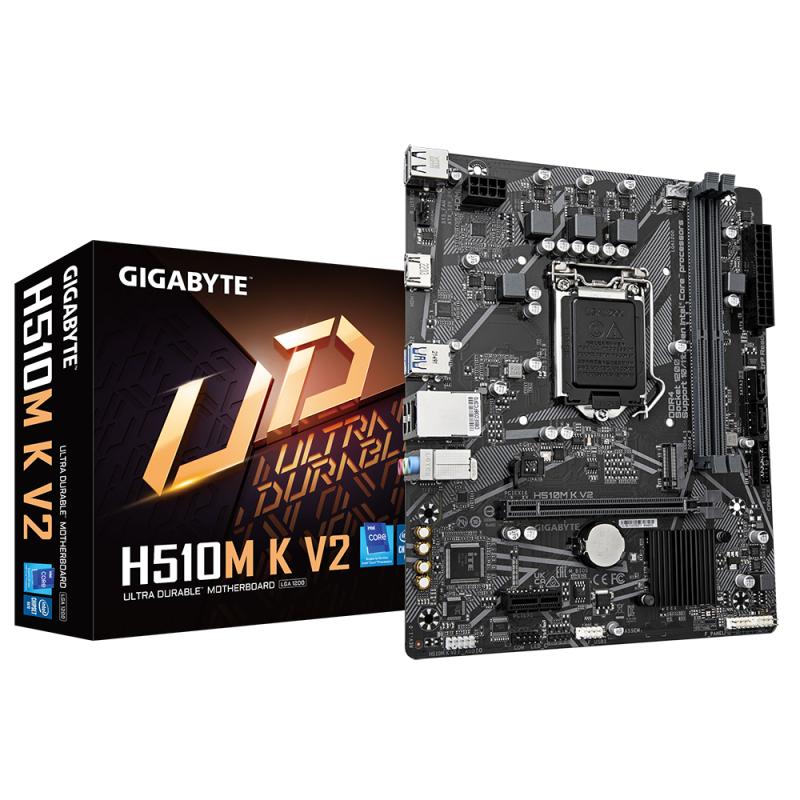

Placa de baza GIGABYTE H510M K V2 LGA1200, 2x DDR4, 1x HDMI

371,28 lei

18 în stoc (poate fi pre-comandat)



SKU: H510M K V2 Categorie:
Descriere

Placa de baza GIGABYTE H510M K V2 LGA1200, 2x DDR4, 1x HDMI, 1x Pci Express x16, 1x Pci Express x1,1x M.2, 2x Sata 6 Gbps, LAN 1 Gbps, M ATX.

Caracteristici
  • PCI: 0
  • Serial-or-Paralel: No/No
  • Video-Connection: VGA/HDMI
  • Wi-Fi: No
  • Onboard-CPU: No
  • Country of origin: China
  • Warranty period: 3 year(s)
  • Component for: PC
  • Package width: 265 mm
  • Cooling type: Active
  • Ethernet interface type: Gigabit Ethernet
  • Package height: 52 mm
  • Memory channels: Dual-channel
  • Processor manufacturer: Intel
  • Maximum internal memory: 64 GB
  • On-board graphics card: Yes
  • Ethernet LAN: Yes
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
  • HDMI ports quantity: 1
  • Ethernet LAN (RJ-45) ports: 1
  • Headphone outputs: 1
  • Microphone in: Yes
  • Graphics card family: Intel
  • Products per shipping (inner) case: 1 pc(s)
  • Batteries included: Yes
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 0
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
  • USB 2.0 ports quantity: 4
  • Audio output channels: 7.1 channels
  • Number of SATA III connectors: 2
  • Line-in: Yes
  • Package depth: 235 mm
  • Number of memory slots: 2
  • Supported memory types: DDR4-SDRAM
  • Total number of SATA connectors: 2
  • HDCP: Yes
  • Product colour: Brown
  • VGA (D-Sub) ports quantity: 0
  • DVI-D ports quantity: 0
  • DirectX version: 12.0
  • Maximum resolution: 4096 x 2160 pixels
  • Windows operating systems supported: Windows 10 x64, Windows 11 x64
  • Model Chipset: H470
  • Gaming: Nu
  • Format: Micro-ATX (mATX)
  • Soclu Procesor: Socket 1200
  • Tip Memorie: DDR4
  • Numar sloturi memorie: 2
  • Memorie maxima: 64 GB
  • Tip slot interfata grafica: PCIe 3.0 x16
  • Chipset audio integrat: Realtek
  • Canale audio: 7.1
  • Wireless: Nu
  • Bluetooth: Nu
  • USB Type C: Da
  • HDMI: Da
  • Thunderbolt: Nu
  • Sloturi M.2: 1
  • RJ-45 LAN: 1
  • Memory slots type: DIMM
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
  • USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
  • Front panel audio connector: Yes
  • ATX Power connector (24-pin): Yes
  • CPU fan connector: Yes
  • EPS power connector (8-pin): Yes
  • Motherboard form factor: micro ATX
  • BIOS type: UEFI AMI
  • Clear CMOS jumper: Yes
  • ECC сompatibility: ECC & Non-ECC
  • RGB LED pin header: Yes
  • Motherboard chipset family: Intel
  • Power source type: ATX
  • ACPI version: 5.0
  • Desktop Management Interface (DMI) version: 2.7
  • System Management BIOS (SMBIOS) version: 2.7
  • Battery weight: 3 g
  • Lithium weight per battery: 0.07 g
  • Number of battery cells: 1
  • Battery technology: Lithium-Manganese Dioxide (LiMnO2)
  • Battery type: CR2032
  • Height: 35 mm
  • Bundled software: Norton® Internet Security (OEM version) LAN bandwidth management software
  • Maximum number of SMP processors: 1
  • 12V power connector: Yes
  • Clear CMOS button: Yes
  • BIOS memory size: 128 Mbit
  • Serial port headers: 1
  • USB 2.0 connectors: 1
  • Processor socket: LGA 1200 (Socket H5)
  • Supported processor sockets: LGA 1200 (Socket H5)
  • Supported memory clock speeds: 2133,2400,2666,2933,3000,3200 MHz
  • PC health monitoring: Fan, Temperature, Voltage
  • Supported memory clock speed (max): 3200 MHz
  • Width: 226 mm
  • Depth: 185 mm
  • Maximum internal memory supported by processor: 64 GB
  • Supported memory module capacities: 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
  • Graphics card: HD Graphics
  • Power fan connector: Yes
  • Supported storage drive types: SSD
  • Number of HDDs supported: 2
  • Compatible processor series: Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
  • Motherboard chipset: Intel H470 Express
  • Number of storage drives supported: 3
  • Supported storage drive interfaces: M.2, PCI Express 3.0, SATA
  • Mini PCI Express slots: 1
  • Package weight: 683 g
Informații suplimentare
Greutate 0,61 kg
Dimensiuni 27 × 23,5 × 5,5 cm
