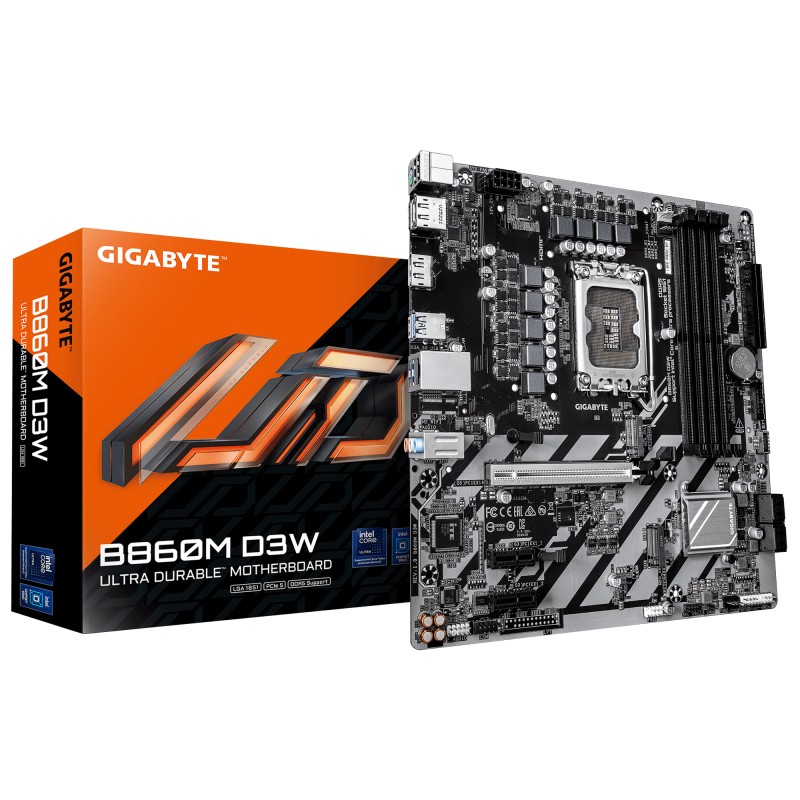

Placa de baza Gigabyte B860M D3W
755,00 lei
20 în stoc (poate fi pre-comandat)
Descriere
Placa de baza Gigabyte B860M D3W.
Caracteristici
- Wi-FI: No
- RAID support: Yes
- Component for: PC
- Ethernet interface type: Gigabit Ethernet
- Memory channels: Dual-channel
- Processor manufacturer: Intel
- Ethernet LAN: Yes
- HDMI ports quantity: 1
- HDMI version: 2.1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
- PCI Express x1 (Gen 3.x) slots: 2
- Audio output channels: 7.1 channels
- USB 2.0 ports quantity: 3
- DisplayPorts quantity: 2
- Line-in: Yes
- PCI Express x16 (Gen 5.x) slots: 1
- Audio Chip: Realtek ALC897
- Supported storage drive types: HDD & SSD
- LAN controller: Realtek RTL8111H
- Number of M.2 (M) slots: 2
- Cooling type: Passive
- HDCP: Yes
- Screws included: Yes
- HDCP version: 2.3
- DisplayPort version: 2.1
- VGA (D-Sub) ports quantity: 0
- Parallel processing technology support: Not supported
- DVI-D ports quantity: 0
- DirectX version: 12.0
- Maximum resolution: 4096 x 2160 pixels
- Windows operating systems supported: Windows 10 x64, Windows 11 x64
- Model Chipset: B860
- Gaming: Nu
- Soclu Procesor: Socket 1851
- Tip Memorie: DDR5
- Numar sloturi memorie: 4
- Memorie maxima: 256 GB
- Tip slot interfata grafica: PCIe 5.0 x16
- Chipset audio integrat: Realtek
- Canale audio: 7.1
- Wireless: Nu
- Bluetooth: Nu
- HDMI: Da
- Thunderbolt: Nu
- Sloturi M.2: 2
- RJ-45 LAN: 1
- Number of memory slots: 4
- Memory slots type: DIMM
- Unbuffered memory: Yes
- Supported storage drive interfaces: M.2, SATA III
- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Number of chassis fan connectors: 2
- EPS power connector (8-pin): Yes
- PS/2 ports quantity: 1
- Motherboard form factor: micro ATX
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
- Clear CMOS jumper: Yes
- Processor socket: LGA 1851 (Socket V1)
- Compatible processor series: Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2)
- Supported processor sockets: LGA 1851
- Supported memory types: DDR5-SDRAM
- Maximum internal memory: 256 GB
- ECC сompatibility: ECC & Non-ECC
- Maximum internal memory per slot: 64 GB
- Number of HDDs supported: 4
- RAID levels: 0, 1, 5, 10
- Front panel connector: Yes
- Number of CPU fan connectors: 2
- TPM connector: Yes
- Number of water pump connectors: 2
- Motherboard chipset family: Intel
- Motherboard chipset: Intel B860
- PC health monitoring: Fan, Temperature, Voltage, Water cooling
- 2nd M.2 highest PCI Express generation: 4.0
- ACPI version: 5.0
- Desktop Management Interface (DMI) version: 2.7
- System Management BIOS (SMBIOS) version: 2.7
- Lithium weight per battery: 0.07 g
- Number of storage drives supported: 6
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
- Serial port headers: 1
- 1st M.2 largest key size: 2280
- 2nd M.2 largest key size: 2280
- USB 2.0 connectors: 1
- Number of EPS power connectors (8-pin): 1
- Supported memory clock speed (max): 9066 MHz
- 1st M.2 highest PCI Express generation: 4.0
- Battery capacity: 220 mAh
- USB Type C: N/A
- Bundled software: Norton® Internet Security (OEM version)
- Microphone in: Yes
- Headphone outputs: 1
- Batteries included: Yes
- Ethernet LAN (RJ-45) ports: 1
- Height: 35 mm
- Width: 244 mm
- Depth: 244 mm
- Warranty period: 3 year(s)
- Country of origin: China
- Package height: 54 mm
- Power source type: ATX
- Battery weight: 3 g
- Number of battery cells: 1
- Battery technology: Lithium-Manganese Dioxide (LiMnO2)
- Battery type: CR2032
- Product colour: Dark brown
- Products per shipping (inner) case: 1 pc(s)
- Package width: 265 mm
- Package depth: 265 mm
- Package weight: 1.6 kg
- Weight: 1.35 kg
- Supported memory clock speeds: 5600,6400,9066,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200,8266,8400,8600,8800 MHz
- Format: Micro-ATX
Informații suplimentare
| Greutate | 0,86 kg |
|---|---|
| Dimensiuni | 27 × 6 × 26 cm |
