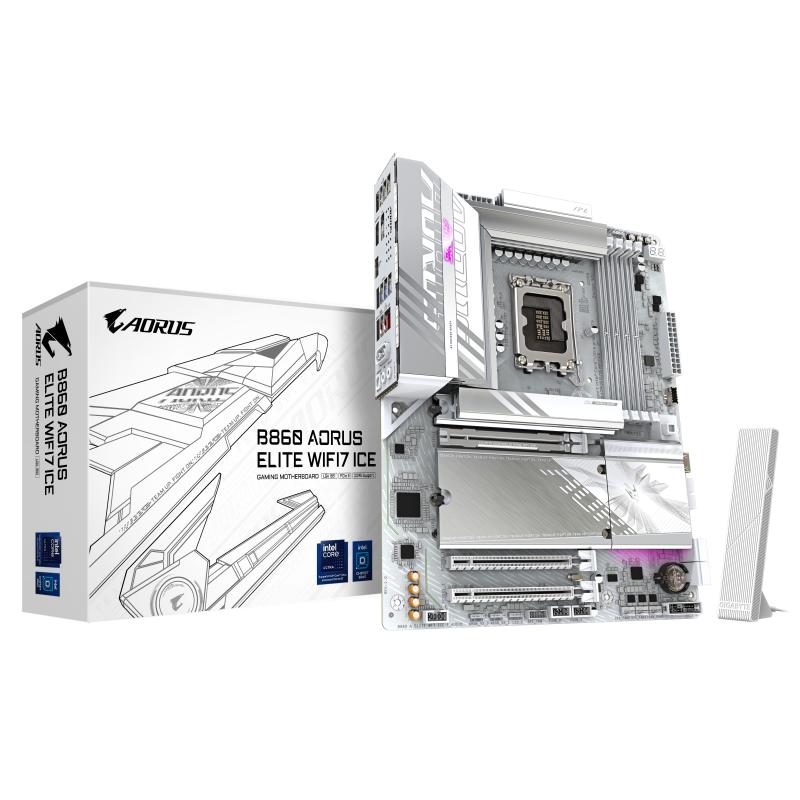

Placa de Baza GIGABYTE B860 AORUS ELITE WIFI7 ICE LGA1851, 4x DDR5, 1x USB4 1x DP 1x HDMI 1x Front HDMI, 3x PCIE x16, 3x M.2, 4x SATA 6GB/s, ATX.
Placa de Baza GIGABYTE B860 AORUS ELITE WIFI7 ICE LGA1851 – B860 A ELITE WF7 ICE
1.401,82 lei
42 în stoc (poate fi pre-comandat)
SKU:
B860 A ELITE WF7 ICE
Categorie: Placi de baza
Descriere
Caracteristici
- PCI: 0
- Serial-or-Paralel: No/No
- Video-Connection: HDMI/DP
- Wi-Fi: Yes
- Onboard-CPU: No
- Country of origin: China
- RAID support: Yes
- Warranty period: 3 year(s)
- Component for: PC
- Product colour: White
- Memory channels: Dual-channel
- BLUETOOTH: Yes
- Processor manufacturer: Intel
- Ethernet LAN: Yes
- HDMI ports quantity: 1
- Ethernet LAN (RJ-45) ports: 1
- HDMI version: 2.1
- Top Wi-Fi standard: Wi-Fi 7 (802.11be)
- Headphone outputs: 1
- Width: 305 mm
- Depth: 244 mm
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
- Bluetooth version: 5.4
- Products per shipping (inner) case: 1 pc(s)
- Batteries included: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
- USB 2.0 ports quantity: 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- Audio output channels: 7.1 channels
- Line-in: Yes
- PCI Express x16 (Gen 5.x) slots: 1
- Audio Chip: Realtek ALC897
- Supported storage drive types: HDD & SSD
- S/PDIF out port: Yes
- USB4 Gen 2x2 ports quantity: 1
- PCI Express x16 (Gen 4.x) slots: 2
- HDCP: Yes
- Screws included: Yes
- DisplayPort version: 2.1
- Digital audio optical out: 1
- DisplayPorts quantity: 1
- VGA (D-Sub) ports quantity: 0
- Parallel processing technology support: Not supported
- DVI-D ports quantity: 0
- DirectX version: 12.0
- Maximum resolution: 4096 x 2160 pixels
- Model Chipset: B860
- Gaming: Da
- Format: ATX
- Soclu Procesor: Socket 1851
- Tip Memorie: DDR5
- Numar sloturi memorie: 4
- Memorie maxima: 256 GB
- Tip slot interfata grafica: N/A
- Chipset audio integrat: Realtek
- Canale audio: 7.1
- Wireless: Da
- Bluetooth: Da
- USB Type C: Da
- HDMI: Da
- Thunderbolt: Nu
- Sloturi M.2: 3
- RJ-45 LAN: 1
- Number of memory slots: 4
- Memory slots type: DIMM
- Unbuffered memory: Yes
- Supported storage drive interfaces: M.2, SATA III
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- EPS power connector (8-pin): Yes
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
- Clear CMOS jumper: Yes
- Processor socket: LGA 1851 (Socket V1)
- Compatible processor series: Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2)
- Supported processor sockets: LGA 1851
- Supported memory types: DDR5-SDRAM
- Maximum internal memory: 256 GB
- ECC сompatibility: ECC & Non-ECC
- Supported memory clock speeds: 5600,6400,9200 MHz
- Supported memory clock speed (max): 9200 MHz
- Maximum internal memory per slot: 64 GB
- Number of HDDs supported: 4
- Number of storage drives supported: 7
- RAID levels: 0, 1, 5, 10
- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
- Front panel connector: Yes
- Number of CPU fan connectors: 2
- Number of chassis fan connectors: 4
- Number of EPS power connectors (8-pin): 2
- TPM connector: Yes
- Number of water pump connectors: 2
- RGB LED pin header: Yes
- Number of RGB LED pin headers: 4
- WiFi-AP antenna jack: 2
- Ethernet interface type: 2.5 Gigabit Ethernet
- LAN controller: Realtek RTL8125
- WLAN controller model: Realtek RTL8922AE
- Motherboard form factor: ATX
- Motherboard chipset family: Intel
- Motherboard chipset: Intel B860
- PC health monitoring: Fan, Temperature, Voltage, Water cooling
- Power source type: ATX
- Windows operating systems supported: Windows 11 x64
- Number of M.2 (M) slots: 3
- 1st M.2 largest key size: 25110
- 1st M.2 highest PCI Express generation: 5.0
- 2nd M.2 largest key size: 22110
- 2nd M.2 highest PCI Express generation: 4.0
- 3rd M.2 largest key size: 22110
- 3rd M.2 highest PCI Express generation: 4.0
- ACPI version: 5.0
- Desktop Management Interface (DMI) version: 2.7
- System Management BIOS (SMBIOS) version: 2.7
- Battery weight: 3 g
- Lithium weight per battery: 0.07 g
- Number of battery cells: 1
- Battery technology: Lithium-Manganese Dioxide (LiMnO2)
- Battery type: CR2032
- Package width: 335 mm
- Package depth: 270 mm
- Package height: 80 mm
- Package weight: 2.49 kg
- Height: 35 mm
- Antenna included: Yes
- Weight: 2.21 kg
- Bundled software: Norton Internet Security (OEM version) LAN bandwidth management software
Informații suplimentare
Greutate | 2 kg |
---|---|
Dimensiuni | 27 × 8 × 34 cm |
Garanție |
36 luni |
