Nou

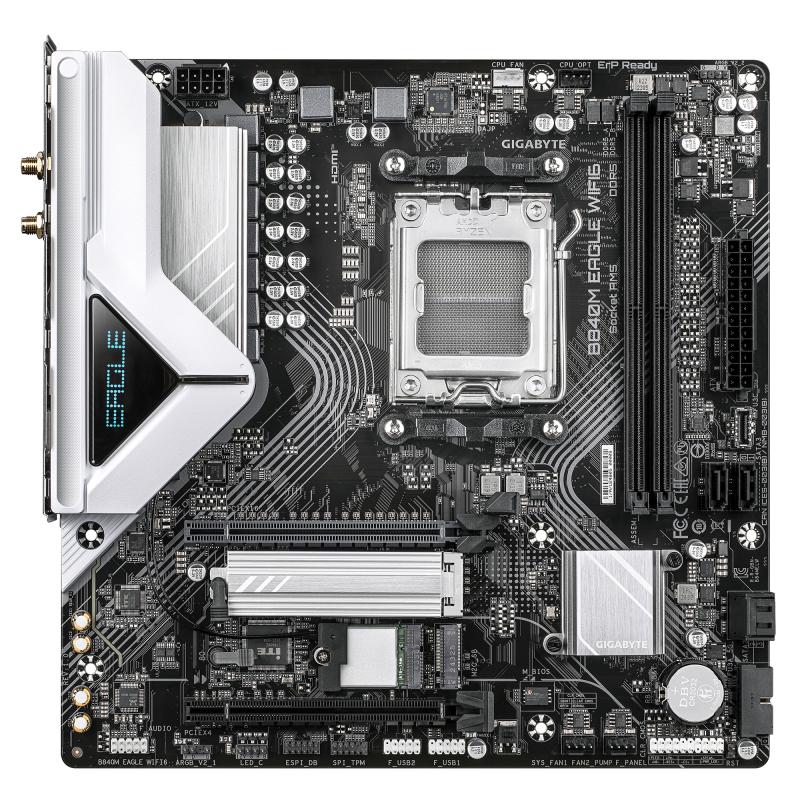

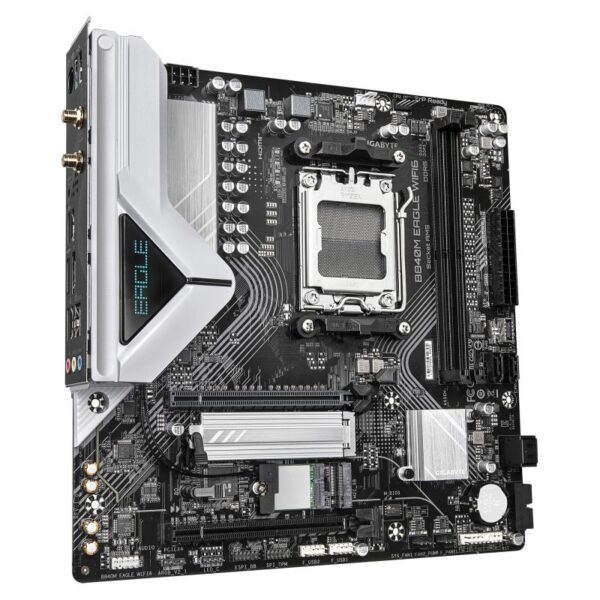

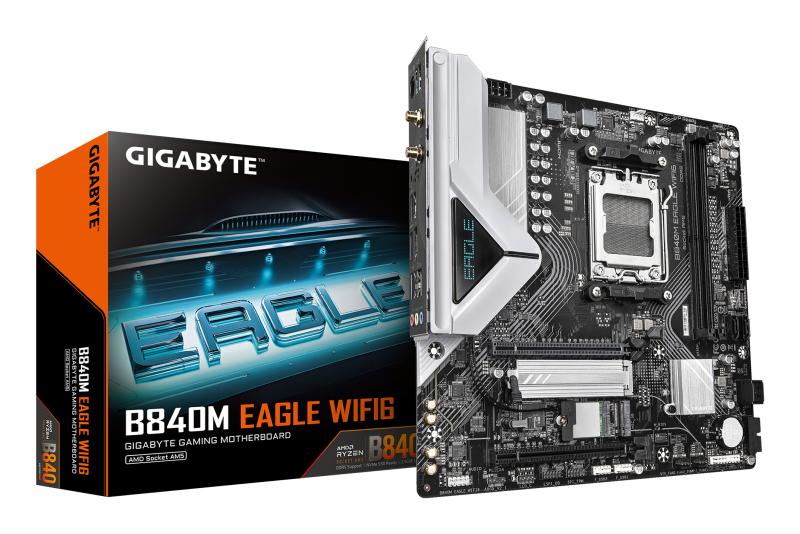

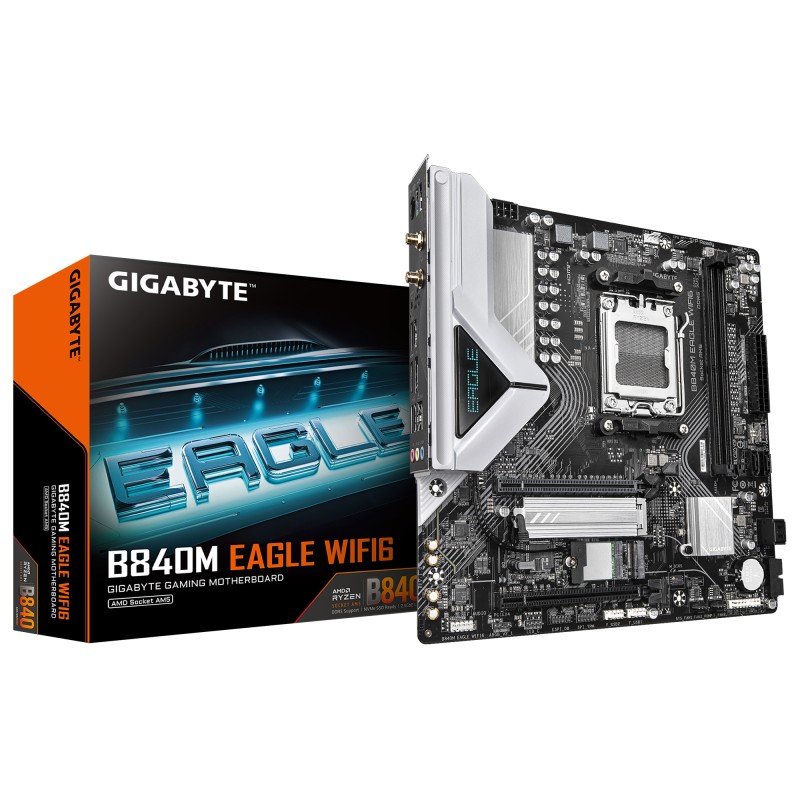

Placa de Baza GIGABYTE B840M EAGLE WIFI6 AM5, 2x DDR5
621,00 lei
5 în stoc (poate fi pre-comandat)
Descriere
Placa de Baza GIGABYTE B840M EAGLE WIFI6 AM5, 2x DDR5, 1x DP 1x HDMI, 1x PCIE 4.0 x16 1x PCIE 3.0 x16, 2x M.2, 4x SATA 6GB/s, mATX.
Caracteristici
- PCI: 0
- Serial-or-Paralel: No/No
- Video-Connection: HDMI
- Wi-Fi: Yes
- USB3: 4-8
- Onboard-CPU: No
- RAID support: Yes
- Warranty period: 3 year(s)
- Component for: PC
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
- DisplayPort version: 1.4
- Memory channels: Dual-channel
- Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
- BLUETOOTH: Yes
- Ethernet LAN: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- HDMI ports quantity: 1
- Ethernet LAN (RJ-45) ports: 1
- HDMI version: 2.1
- Maximum internal memory: 128 GB
- Bluetooth version: 5.3
- Headphone outputs: 1
- Processor manufacturer: AMD
- Microphone in: Yes
- Depth: 244 mm
- Products per shipping (inner) case: 1 pc(s)
- Batteries included: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
- USB 2.0 ports quantity: 4
- PCI Express x16 (Gen 3.x) slots: 1
- Audio output channels: 7.1 channels
- Line-in: Yes
- Audio Chip: Realtek ALC897
- PCI Express x16 (Gen 4.x) slots: 1
- Number of memory slots: 2
- Supported storage drive types: HDD & SSD
- Number of M.2 (M) slots: 2
- Cooling type: Passive
- HDCP: Yes
- Screws included: Yes
- Package depth: 268 mm
- DisplayPorts quantity: 1
- VGA (D-Sub) ports quantity: 0
- Parallel processing technology support: Not supported
- DVI-D ports quantity: 0
- DirectX version: 12.0
- Maximum resolution: 4096 x 2160 pixels
- Windows operating systems supported: Windows 10 x64, Windows 11 x64
- Package height: 68 mm
- Model Chipset: B840
- Gaming: Nu
- Format: Micro-ATX (mATX)
- Soclu Procesor: Socket AM5
- Tip Memorie: DDR5
- Numar sloturi memorie: 2
- Memorie maxima: 128 GB
- Tip slot interfata grafica: N/A
- Chipset audio integrat: Realtek
- Canale audio: 7.1
- Wireless: Da
- Bluetooth: Da
- HDMI: Da
- Thunderbolt: Nu
- Sloturi M.2: 2
- RJ-45 LAN: 1
- Memory slots type: DIMM
- Unbuffered memory: Yes
- USB 2.0 connectors: 2
- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Number of chassis fan connectors: 2
- EPS power connector (8-pin): Yes
- PS/2 ports quantity: 1
- Motherboard form factor: micro ATX
- Motherboard chipset family: AMD
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
- Clear CMOS jumper: Yes
- Width: 244 mm
- Supported memory types: DDR5-SDRAM
- Maximum internal memory per slot: 64 GB
- Number of HDDs supported: 4
- Front panel connector: Yes
- Number of CPU fan connectors: 2
- TPM connector: Yes
- Number of water pump connectors: 2
- RGB LED pin header: Yes
- WiFi-AP antenna jack: 2
- Ethernet interface type: 2.5 Gigabit Ethernet
- LAN controller: Realtek RTL8125
- PC health monitoring: Fan, Temperature, Voltage, Water cooling
- Power source type: ATX
- ACPI version: 5.0
- Desktop Management Interface (DMI) version: 2.7
- System Management BIOS (SMBIOS) version: 2.7
- Battery weight: 3 g
- Lithium weight per battery: 0.07 g
- Number of battery cells: 1
- Battery technology: Lithium-Manganese Dioxide (LiMnO2)
- Battery type: CR2032
- Height: 35 mm
- Antenna included: Yes
- Bundled software: Norton® Internet Security (OEM version) LAN bandwidth management software
- Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III
- 12V power connector: Yes
- ECC сompatibility: Non-ECC
- Number of storage drives supported: 6
- Package width: 270 mm
- Supported memory clock speed (max): 7600 MHz
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
- RAID levels: 0, 1, 10
- Processor socket: Socket AM5
- Supported processor sockets: Socket AM5
- Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- 2nd M.2 largest key size: 2280
- Number of EPS power connectors (8-pin): 1
- 1st M.2 highest PCI Express generation: 4.0
- Package weight: 1.31 kg
- Number of RGB LED pin headers: 3
- 1st M.2 largest key size: 2580
- WLAN controller model: Realtek RTL8851BE
- Weight: 1.22 kg
- PCI-Ex1: 0
- RAM-Slots: 4
- MB-Format: micro-ATX
- Product colour: Dark brown
- 2nd M.2 highest PCI Express generation: 3.0
- USB Type C: N/A
- MB-Socket: AM5
- PCI-Ex16: 2
- Motherboard chipset: AMD B840
- Supported memory clock speeds: 7600,7200,7000,6800,6600,6400,6200,6000,5800,5600,5200,4800,4400 MHz
Informații suplimentare
| Greutate | 1,187 kg |
|---|---|
| Dimensiuni | 27,5 × 7 × 27 cm |
| Garanție |
36 luni |
