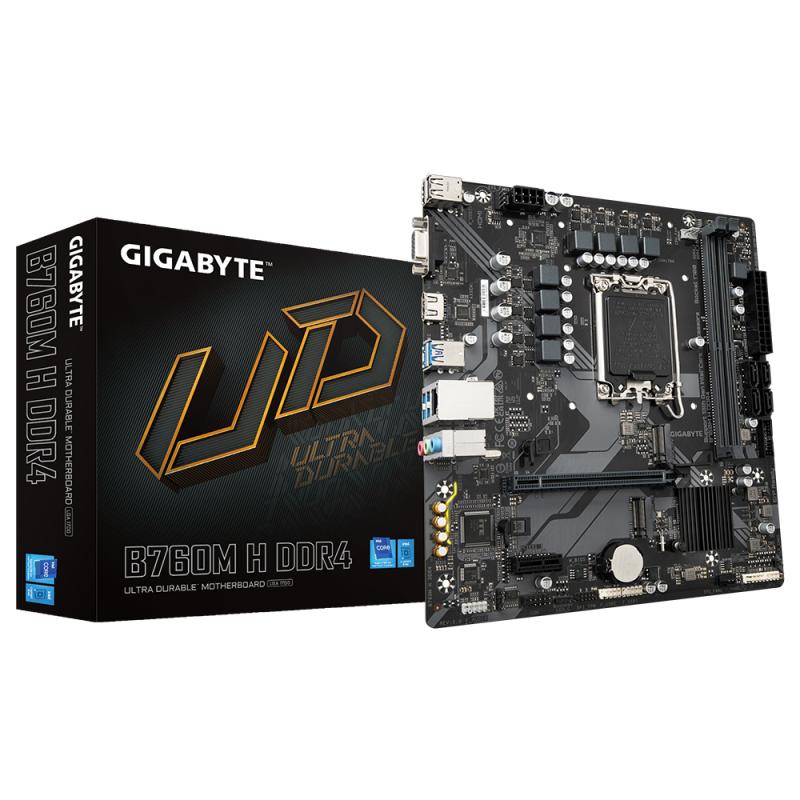

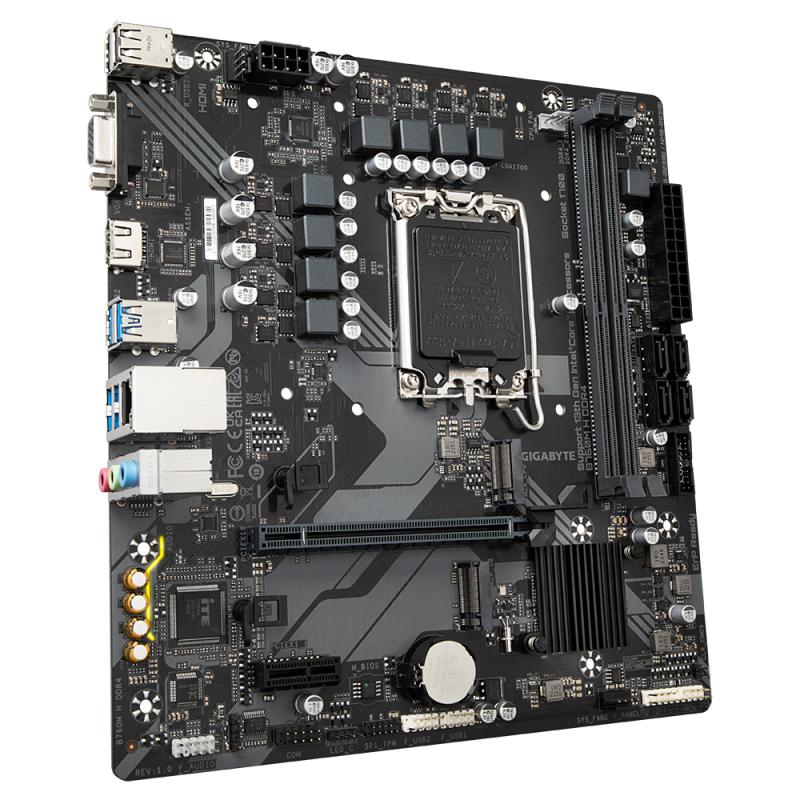

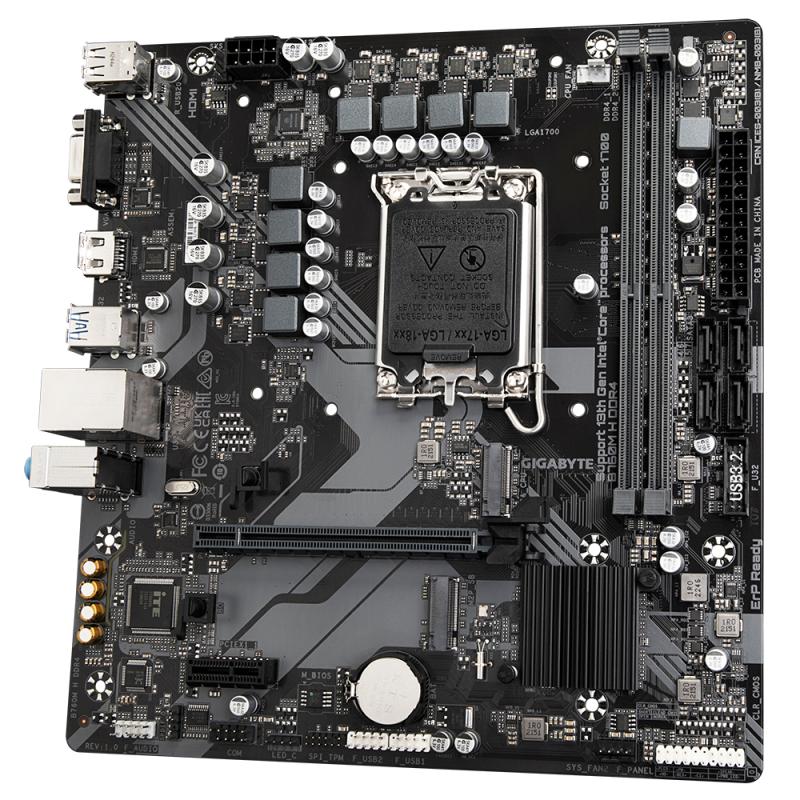

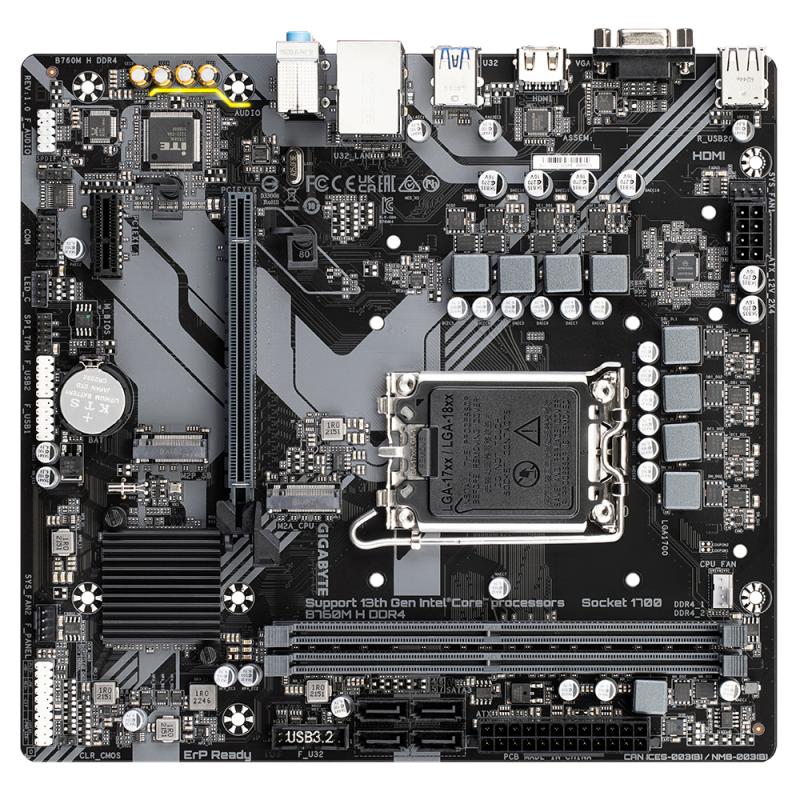

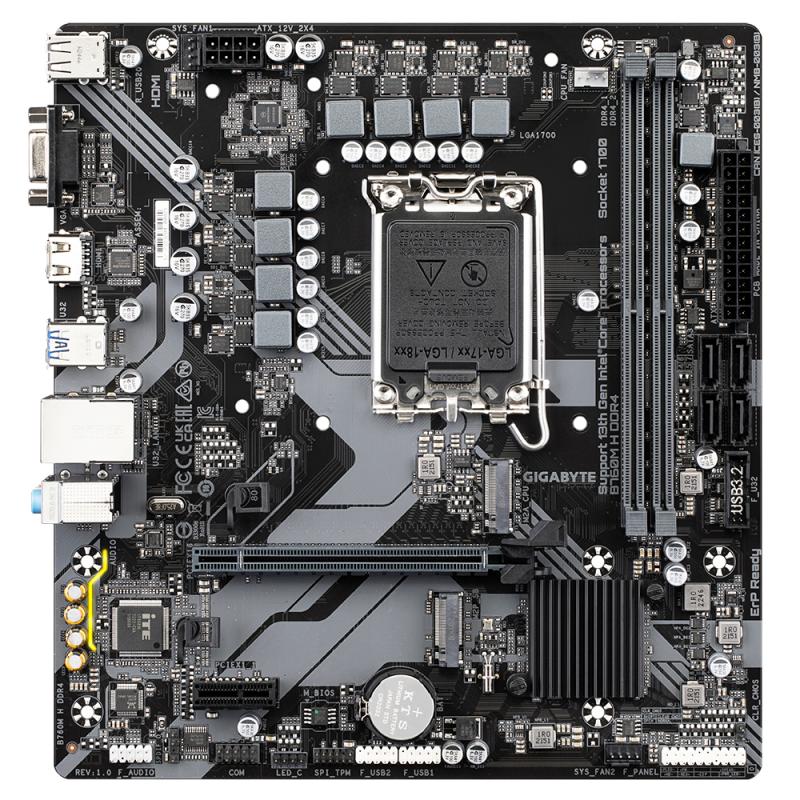

Placa de baza Gigabyte B760M H LGA1700, 2x DDR4, 1x D-Sub – B760M H DDR4
598,00 lei
33 în stoc
Descriere

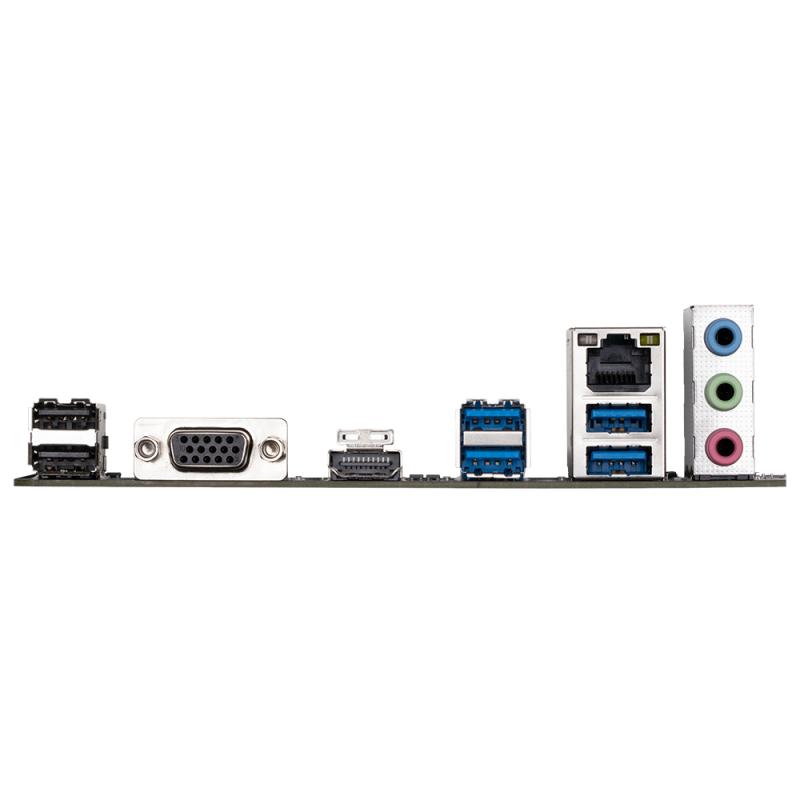

Placa de baza Gigabyte B760M H LGA1700, 2x DDR4, 1x D-Sub, 1x HDMI, 1x PCIe x16, 1x PCIe x1, 2x M.2, 4x SATA 6Gbps, 1Gbps LAN, mATX.
Caracteristici
- PCI: 0
- Serial-or-Paralel: No/No
- Video-Connection: HDMI/DP
- Wi-FI: No
- Onboard-CPU: No
- RAID support: Yes
- Component for: PC
- Windows operating systems supported: Windows 10, Windows 11
- DisplayPort version: 1.4
- Ethernet interface type: Gigabit Ethernet
- Memory channels: Dual-channel
- Processor manufacturer: Intel
- Maximum internal memory: 64 GB
- Ethernet LAN: Yes
- HDMI ports quantity: 1
- HDMI version: 1.4
- USB 2.0 ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- Audio output channels: 7.1 channels
- Audio Chip: Realtek ALC897
- PCI Express x16 (Gen 4.x) slots: 1
- Number of memory slots: 2
- Supported memory types: DDR4-SDRAM
- Number of M.2 (M) slots: 2
- VGA (D-Sub) ports quantity: 1
- DisplayPorts quantity: 1
- Parallel processing technology support: Not supported
- DVI-D ports quantity: 0
- Model Chipset: B760
- Gaming: Nu
- Format: Micro-ATX (mATX)
- Soclu Procesor: Socket 1700
- Tip Memorie: DDR4
- Numar sloturi memorie: 2
- Memorie maxima: 64 GB
- Tip slot interfata grafica: PCIe 4.0 x16
- Chipset audio integrat: Realtek
- Canale audio: 7.1
- Wireless: Nu
- Bluetooth: Nu
- USB Type C: Da
- HDMI: Da
- Thunderbolt: Nu
- Sloturi M.2: 2
- RJ-45 LAN: 1
- Memory slots type: DIMM
- Supported storage drive interfaces: M.2, SATA III
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- EPS power connector (8-pin): Yes
- Motherboard form factor: micro ATX
- BIOS type: UEFI AMI
- Clear CMOS jumper: Yes
- Number of HDDs supported: 4
- RAID levels: 0, 1, 5, 10
- Front panel connector: Yes
- TPM connector: Yes
- RGB LED pin header: Yes
- Motherboard chipset family: Intel
- ACPI version: 5.0
- Desktop Management Interface (DMI) version: 2.7
- System Management BIOS (SMBIOS) version: 2.7
- Lithium weight per battery: 0.07 g
- Processor socket: LGA 1700
- Maximum number of SMP processors: 1
- Supported processor sockets: LGA 1700
- Total number of SATA connectors: 4
- ECC сompatibility: Non-ECC
- Number of storage drives supported: 6
- BIOS memory size: 128 Mbit
- Serial port headers: 1
- Motherboard chipset: Intel B760 Express
- Supported memory clock speeds: 2133,2400,2666,2933,3000,3200 MHz
- Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold
- Supported memory clock speed (max): 3200 MHz
- Maximum internal memory supported by processor: 64 GB
- Supported memory module capacities: 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
- DirectX version: 12.1
- Depth: 215 mm
- Height: 35 mm
- Width: 230 mm
- Country of origin: China
- Package height: 54 mm
- Power source type: ATX
- Battery weight: 3 g
- Number of battery cells: 1
- Battery technology: Lithium-Manganese Dioxide (LiMnO2)
- Battery type: CR2032
- Product colour: Brown
- Package width: 265 mm
- Package depth: 265 mm
- Package weight: 825 g
Informații suplimentare
| Greutate | 0,833 kg |
|---|---|
| Dimensiuni | 27 × 27 × 5,5 cm |
| Garanție |
36 luni |
