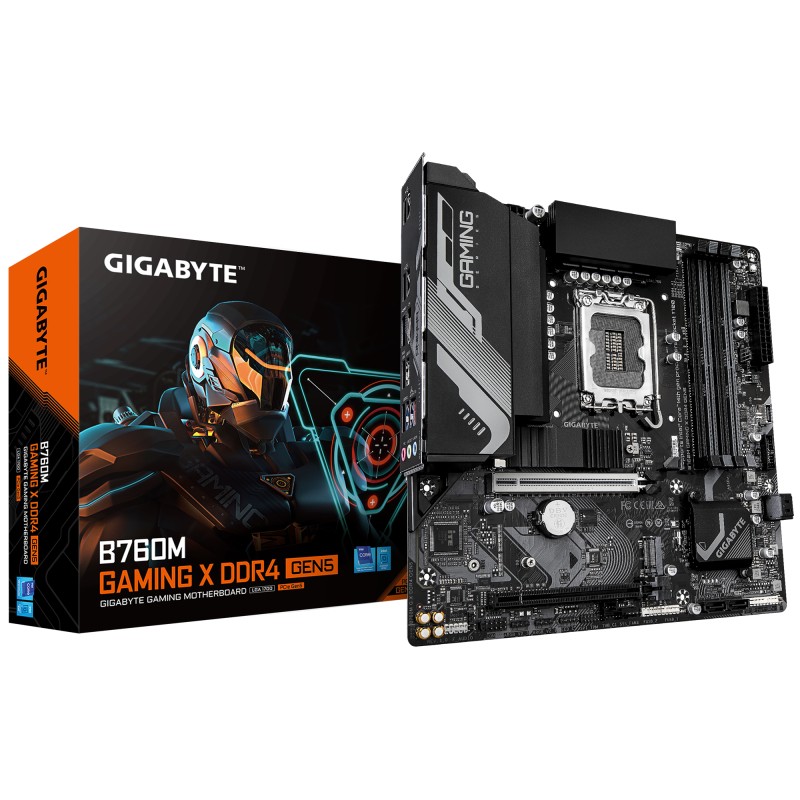

Name: PLaca de baza Gigabyte B760M GAMING X DDR4 LGA1700 - B760M G X DDR4 GEN5 - DLX
Brand: Gigabyte
SKU: B760M G X DDR4 GEN5
Price: 693.00 RON
Availability: InStock

PLaca de baza Gigabyte B760M GAMING X DDR4 LGA1700 – B760M G X DDR4 GEN5

693,00 lei

10 în stoc

SKU: B760M G X DDR4 GEN5 Categorie: Placi de baza

PCI: 0
Serial-or-Paralel: No/No
Video-Connection: HDMI/DP
Wi-FI: No
USB3: 4-8
PCI-Ex16: 1
Onboard-CPU: No
RAID support: Yes
Component for: PC
Memory channels: Dual-channel
Processor manufacturer: Intel
Ethernet LAN: Yes
HDMI ports quantity: 1
HDMI version: 2.1
Maximum internal memory: 128 GB
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
PCI Express x16 (Gen 3.x) slots: 1
Audio output channels: 7.1 channels
Line-in: Yes
PCI Express x16 (Gen 5.x) slots: 1
Audio Chip: Realtek ALC897
Supported storage drive types: HDD & SSD
Supported memory types: DDR4-SDRAM
Number of M.2 (M) slots: 2
Cooling type: Passive
USB 2.0 ports quantity: 5
HDCP: Yes
Screws included: Yes
DisplayPort version: 1.2
DisplayPorts quantity: 1
VGA (D-Sub) ports quantity: 0
Parallel processing technology support: Not supported
DVI-D ports quantity: 0
DirectX version: 12.0
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Model Chipset: B760
Gaming: Da
Format: Micro-ATX (mATX)
Soclu Procesor: Socket 1700
Tip Memorie: DDR4
Numar sloturi memorie: 4
Memorie maxima: 128 GB
Tip slot interfata grafica: PCIe 5.0 x16
Chipset audio integrat: Realtek
Canale audio: 7.1
Wireless: Nu
Bluetooth: Nu
HDMI: Da
Thunderbolt: Da
Sloturi M.2: 2
RJ-45 LAN: 1
Number of memory slots: 4
Memory slots type: DIMM
Unbuffered memory: Yes
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 4
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
EPS power connector (8-pin): Yes
Motherboard form factor: micro ATX
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
Clear CMOS jumper: Yes
ECC сompatibility: ECC & Non-ECC
Number of HDDs supported: 4
RAID levels: 0, 1, 5, 10
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Front panel connector: Yes
TPM connector: Yes
RGB LED pin header: Yes
Number of RGB LED pin headers: 4
Ethernet interface type: 2.5 Gigabit Ethernet
LAN controller: Realtek RTL8125
Motherboard chipset family: Intel
PC health monitoring: Fan, Temperature, Voltage, Water cooling
2nd M.2 largest key size: 22110
2nd M.2 highest PCI Express generation: 4.0
ACPI version: 5.0
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
Lithium weight per battery: 0.07 g
Processor socket: LGA 1700
Supported processor sockets: LGA 1700
Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III
Maximum resolution: 4096 x 2304 pixels
Thunderbolt headers: 2
12V power connector: Yes
Number of storage drives supported: 6
S/PDIF out connector: Yes
Motherboard chipset: Intel B760
Serial port headers: 1
Number of chassis fan connectors: 3
1st M.2 largest key size: 2280
Number of EPS power connectors (8-pin): 1
Supported memory clock speed (max): 3200 MHz
Number of CPU fan connectors: 1
1st M.2 highest PCI Express generation: 4.0
Maximum internal memory per slot: 32 GB
MB-Socket: 1700
PCI-Ex1: 0
RAM-Slots: 4
MB-Format: micro-ATX
USB Type C: N/A
Microphone in: Yes
Headphone outputs: 1
Batteries included: Yes
Ethernet LAN (RJ-45) ports: 1
Height: 35 mm
Width: 244 mm
Depth: 244 mm
Warranty period: 3 year(s)
Country of origin: China
Package height: 68 mm
Power source type: ATX
Battery weight: 3 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
Product colour: Dark brown
Products per shipping (inner) case: 1 pc(s)
Package width: 270 mm
Package depth: 268 mm
Package weight: 1.6 kg
Weight: 1.19 kg
Supported memory clock speeds: 3200,3000,2933,2666,2400,2133 MHz
Bundled software: Norton® Internet Security (OEM version) LAN bandwidth management software
