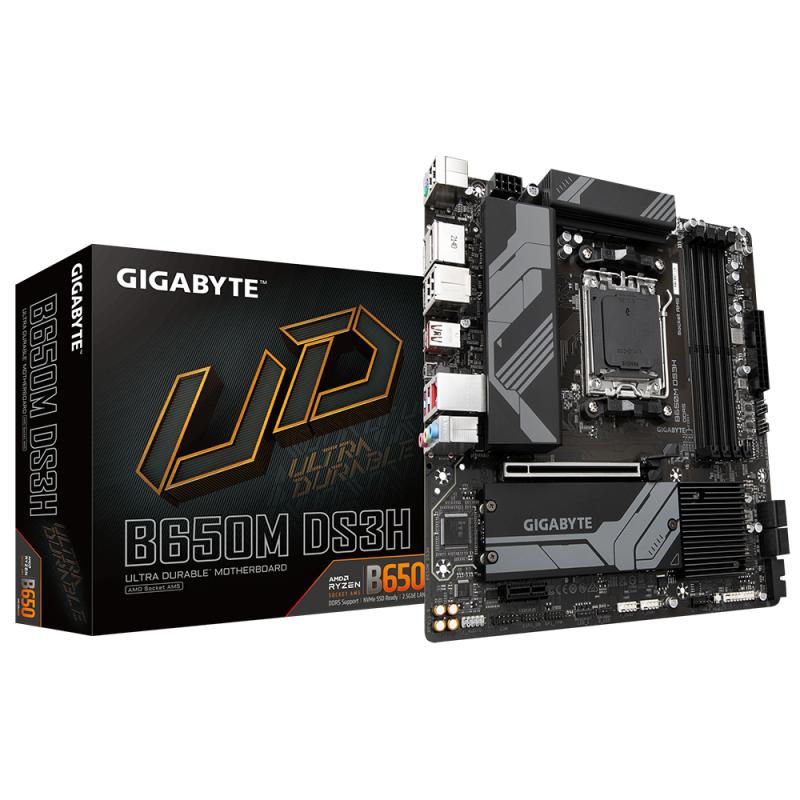

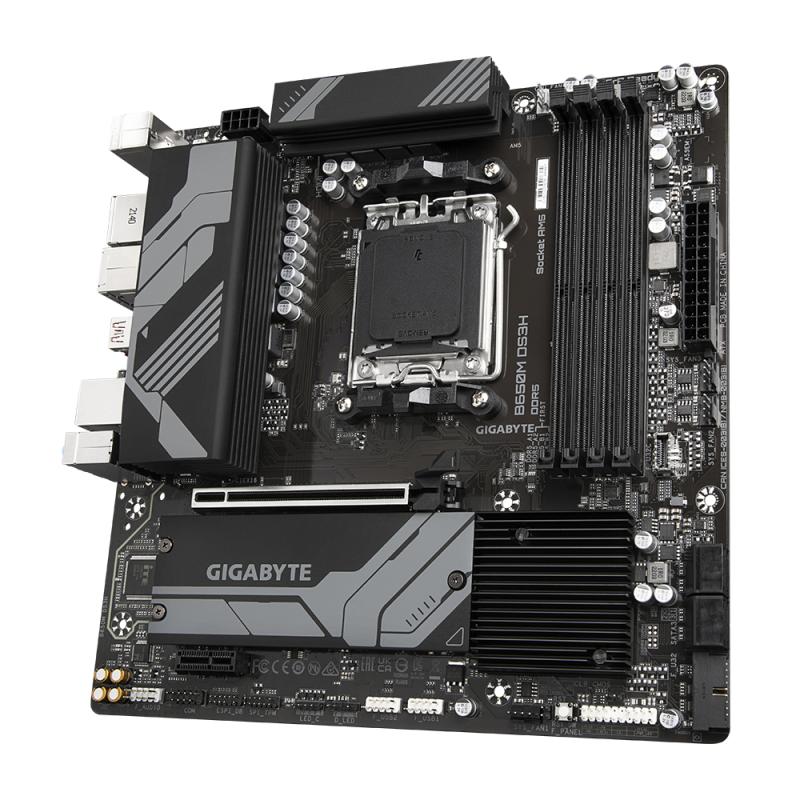

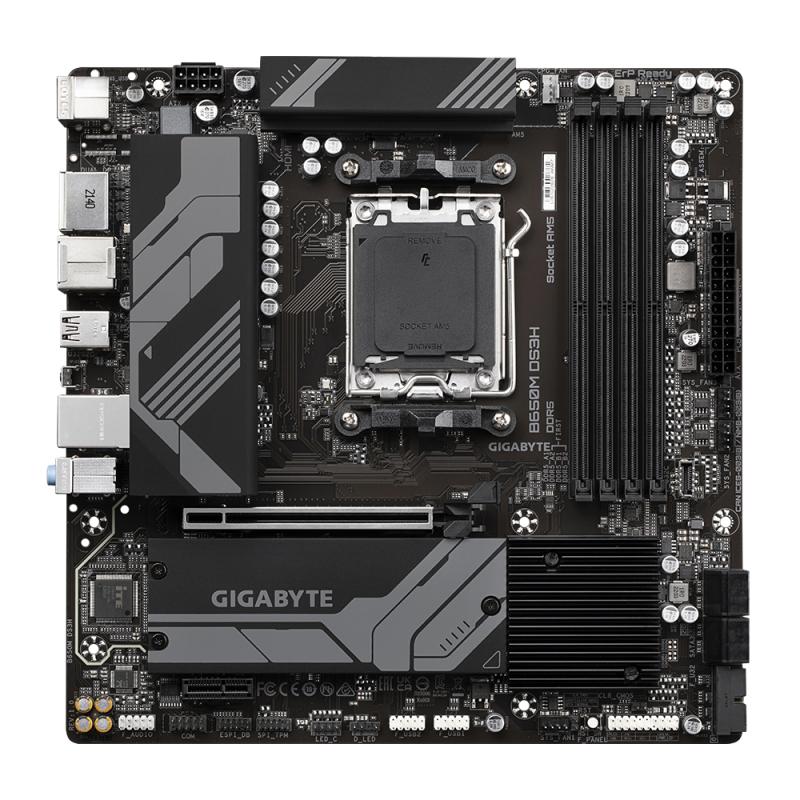

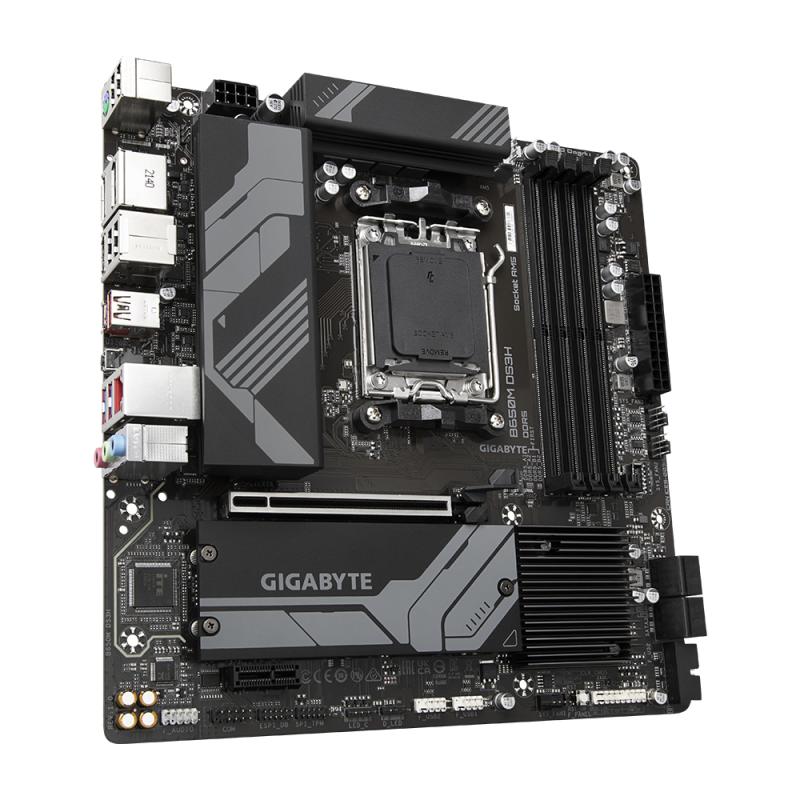

Placa de baza Gigabyte B650M DS3H AM5 AMD Socket AM5
1.054,00 lei
Stoc epuizat
Descriere
Placa de baza Gigabyte B650M DS3H AM5 AMD Socket AM5: Supports AMD Ryzen™ 7000 Series Processors Unparalleled Performance: Direct 6+2+1 Phases Digital VRM Solution Dual Channel DDR5: 4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support SuperSpeed Storage: 2*PCIe 4.0 x4 M.2 Connectors Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & 25110 M.2 SSD Performance PCIe x16 EZ-Latch with Quick Release & Screwless Design Fast Networks: 2.5GbE LAN Extended Connectivity: 2*DP, HDMI, 2*USB-C® 10Gb/s Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card.
Caracteristici
- PCI: 0
- Serial-or-Paralel: No/No

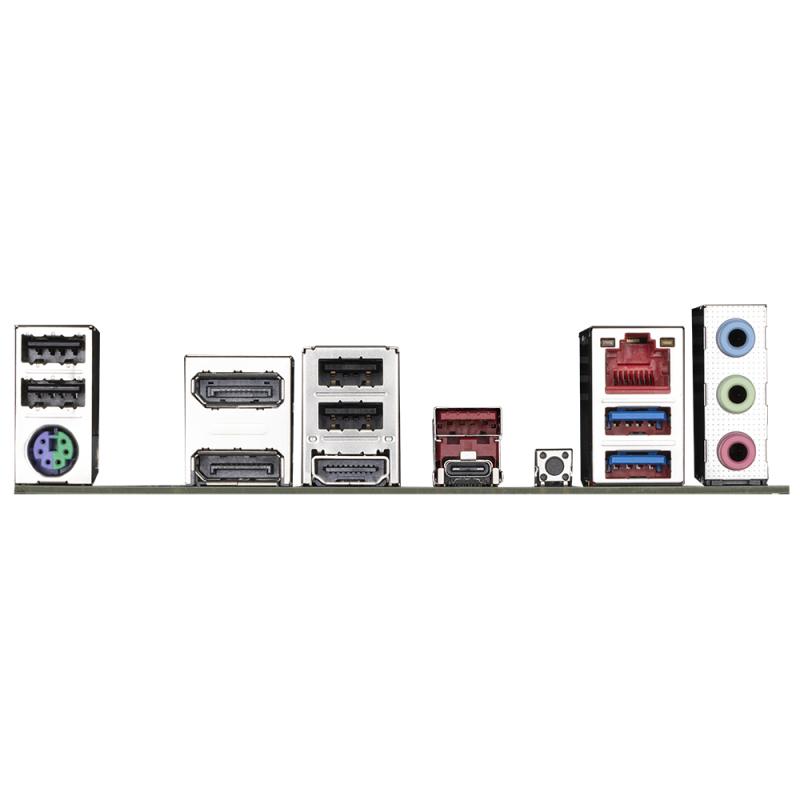

- Video-Connection: HDMI/DP
- Wi-FI: No
- Onboard-CPU: No
- RAID support: Yes
- Component for: PC
- DisplayPort version: 1.4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
- Memory channels: Dual-channel
- Ethernet LAN: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- HDMI ports quantity: 1
- HDMI version: 2.1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
- Processor manufacturer: AMD
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
- USB 2.0 ports quantity: 4
- Audio output channels: 7.1 channels
- PCI Express x1 (Gen 3.x) slots: 1
- DisplayPorts quantity: 2
- Line-in: Yes
- Audio Chip: Realtek ALC897
- PCI Express x16 (Gen 4.x) slots: 1
- Supported storage drive types: HDD & SSD
- Number of M.2 (M) slots: 2
- HDCP: Yes
- Screws included: Yes
- VGA (D-Sub) ports quantity: 0
- Parallel processing technology support: Not supported
- DVI-D ports quantity: 0
- DirectX version: 12.0
- Maximum resolution: 4096 x 2160 pixels
- Windows operating systems supported: Windows 10 x64, Windows 11 x64
- Model Chipset: B650
- Gaming: Nu
- Format: Micro-ATX (mATX)
- Soclu Procesor: Socket AM5
- Tip Memorie: DDR5
- Numar sloturi memorie: 4
- Memorie maxima: 256 GB
- Tip slot interfata grafica: PCIe 4.0 x16
- Chipset audio integrat: Realtek
- Canale audio: 7.1
- Wireless: Nu
- Bluetooth: Nu
- USB Type C: Da
- HDMI: Da
- Thunderbolt: Nu
- Sloturi M.2: 2
- RJ-45 LAN: 1
- Number of memory slots: 4
- Memory slots type: DIMM
- Unbuffered memory: Yes
- Supported storage drive interfaces: M.2, SATA III
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- EPS power connector (8-pin): Yes
- PS/2 ports quantity: 1
- Motherboard form factor: micro ATX
- Motherboard chipset family: AMD
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
- Clear CMOS jumper: Yes
- Supported memory types: DDR5-SDRAM
- Maximum internal memory: 256 GB
- Maximum internal memory per slot: 64 GB
- Number of HDDs supported: 4
- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
- Front panel connector: Yes
- TPM connector: Yes
- RGB LED pin header: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- LAN controller: Realtek RTL8125
- 2nd M.2 highest PCI Express generation: 4.0
- ACPI version: 5.0
- Desktop Management Interface (DMI) version: 2.7
- System Management BIOS (SMBIOS) version: 2.7
- Lithium weight per battery: 0.07 g
- Discrete graphics support: Yes
- 12V power connector: Yes
- ECC сompatibility: Non-ECC
- Number of storage drives supported: 6
- Serial port headers: 1
- RAID levels: 0, 1, 10
- Processor socket: Socket AM5
- Supported processor sockets: Socket AM5
- Supported memory clock speed (max): 8000 MHz
- Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- Number of chassis fan connectors: 3
- PC health monitoring: Fan, Temperature, Voltage
- Motherboard chipset: AMD B650
- Number of EPS power connectors (8-pin): 1
- 2nd M.2 largest key size: 25110
- Number of CPU fan connectors: 1
- 1st M.2 highest PCI Express generation: 4.0
- Number of RGB LED pin headers: 3
- Supported memory clock speeds: 4800,5200,5600,6000,6200,6400,6600,6800,7000,7200,7600,7800,8000 MHz
- 1st M.2 largest key size: 22110
- Microphone in: Yes
- Headphone outputs: 1
- Height: 35 mm
- Width: 244 mm
- Depth: 244 mm
- Country of origin: China
- Package height: 68 mm
- Power source type: ATX
- Battery weight: 3 g
- Number of battery cells: 1
- Battery technology: Lithium-Manganese Dioxide (LiMnO2)
- Battery type: CR2032
- Product colour: Brown
- Package width: 270 mm
- Package depth: 268 mm
- Package weight: 1.68 kg
Informații suplimentare
| Greutate | 1,517 kg |
|---|---|
| Dimensiuni | 28 × 27 × 7 cm |
