Placa de baza Gigabyte B650 GAMING X AX AM5
1.475,00 lei
Placa de baza Gigabyte B650M DS3H AM5 AMD Socket AM5
1.054,00 lei

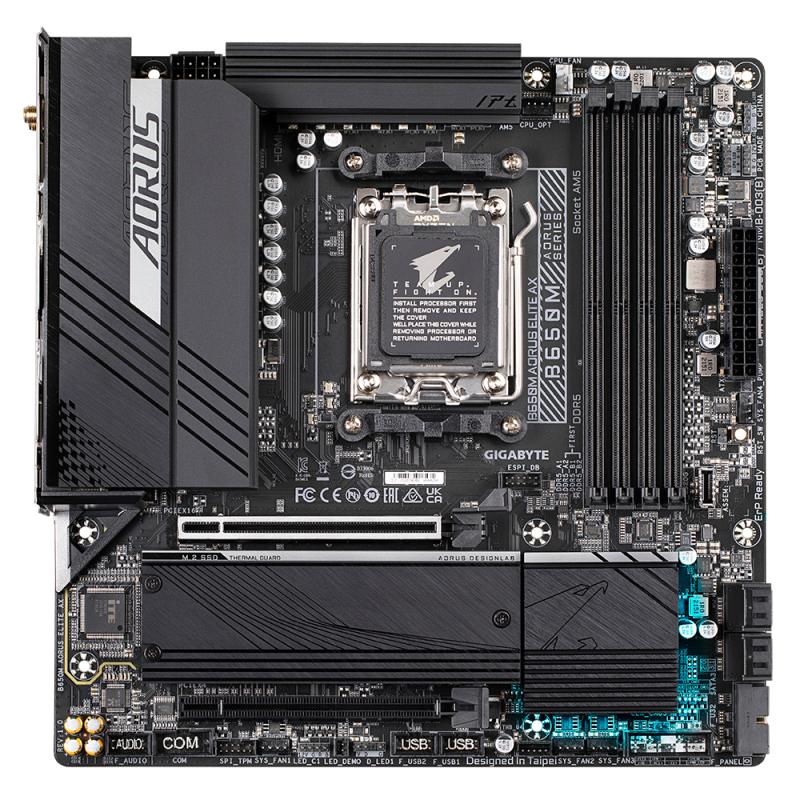

Placa de baza Gigabyte B650M AORUS ELITE AX AM5 – B650M AOR ELITE AX
1.475,00 lei
Stoc epuizat
Descriere
Placa de baza Gigabyte B650M AORUS ELITE AX AM5, B650 Chipset, Supports 7000 series AMD Ryzen, 4x DIMM Slots, DDR5 6600MHz, PCIe Gen 4, 4x SATA 6Gb/s connectors, 2xM.2 Slot, 2.5GB LAN, USB Type-C, WIFI 6E, Micro-ATX.
Caracteristici
- PCI: 0
- Serial-or-Paralel: No/No
- Video-Connection: HDMI/DP
- Wi-FI: Yes
- Onboard-CPU: No
- RAID support: Yes
- Component for: PC
- DisplayPort version: 1.4
- Memory channels: Dual-channel
- Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
- Ethernet LAN: Yes
- HDMI ports quantity: 1
- HDMI version: 2.1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
- Processor manufacturer: AMD
- WLAN controller model: Realtek RTL8852CE
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
- USB 2.0 ports quantity: 4
- Audio output channels: 7.1 channels
- Audio Chip: Realtek ALC897
- Supported storage drive types: HDD & SSD
- Number of M.2 (M) slots: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 5
- S/PDIF out port: Yes
- PCI Express x16 (Gen 4.x) slots: 2
- HDCP: Yes
- Screws included: Yes
- Digital audio optical out: 1
- DisplayPorts quantity: 1
- VGA (D-Sub) ports quantity: 0
- Parallel processing technology support: Not supported
- DVI-D ports quantity: 0
- DirectX version: 12.0
- Maximum resolution: 4096 x 2160 pixels
- Windows operating systems supported: Windows 10 x64, Windows 11 x64
- Model Chipset: B650
- Gaming: Nu
- Format: Micro-ATX (mATX)
- Soclu Procesor: Socket AM5
- Tip Memorie: DDR5
- Numar sloturi memorie: 4
- Memorie maxima: 256 GB
- Tip slot interfata grafica: PCIe 4.0 x16
- Chipset audio integrat: Realtek
- Canale audio: 7.1
- Wireless: Da
- Bluetooth: Da
- USB Type C: Da
- HDMI: Da
- Thunderbolt: Nu
- Sloturi M.2: 2
- RJ-45 LAN: 1
- Number of memory slots: 4
- Memory slots type: DIMM
- Unbuffered memory: Yes
- Supported storage drive interfaces: M.2, SATA III
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- EPS power connector (8-pin): Yes
- Motherboard form factor: micro ATX
- Motherboard chipset family: AMD
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
- Clear CMOS jumper: Yes
- Supported memory types: DDR5-SDRAM
- Maximum internal memory: 256 GB
- Maximum internal memory per slot: 64 GB
- Number of HDDs supported: 4
- Front panel connector: Yes
- Number of CPU fan connectors: 2
- Number of chassis fan connectors: 4
- TPM connector: Yes
- Number of water pump connectors: 2
- RGB LED pin header: Yes
- WiFi-AP antenna jack: 2
- Ethernet interface type: 2.5 Gigabit Ethernet
- LAN controller: Realtek RTL8125
- PC health monitoring: Fan, Temperature, Voltage, Water cooling
- 1st M.2 largest key size: 25110
- 1st M.2 highest PCI Express generation: 5.0
- 2nd M.2 largest key size: 22110
- 2nd M.2 highest PCI Express generation: 4.0
- ACPI version: 5.0
- Desktop Management Interface (DMI) version: 2.7
- System Management BIOS (SMBIOS) version: 2.7
- Lithium weight per battery: 0.07 g
- Antenna included: Yes
- Discrete graphics support: Yes
- USB 3.2 Gen 2x2 connectors: 1
- 12V power connector: Yes
- ECC сompatibility: Non-ECC
- Number of storage drives supported: 6
- Serial port headers: 1
- RAID levels: 0, 1, 10
- Processor socket: Socket AM5
- Supported processor sockets: Socket AM5
- Supported memory clock speed (max): 8000 MHz
- Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- Motherboard chipset: AMD B650
- Supported memory clock speeds: 4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000 MHz
- Number of RGB LED pin headers: 5
- Microphone in: Yes
- Headphone outputs: 1
- Bluetooth version: 5.3
- Height: 35 mm
- Width: 244 mm
- Depth: 244 mm
- Country of origin: China
- Package height: 68 mm
- Power source type: ATX
- Battery weight: 3 g
- Number of battery cells: 1
- Battery technology: Lithium-Manganese Dioxide (LiMnO2)
- Battery type: CR2032
- Package width: 270 mm
- Package depth: 268 mm
- Package weight: 1.96 kg
- Bundled software: Norton® Internet Security (OEM version); LAN bandwidth management software
Informații suplimentare
| Greutate | 1,754 kg |
|---|---|
| Dimensiuni | 27 × 27,5 × 7 cm |
| Garanție |
36 luni |
