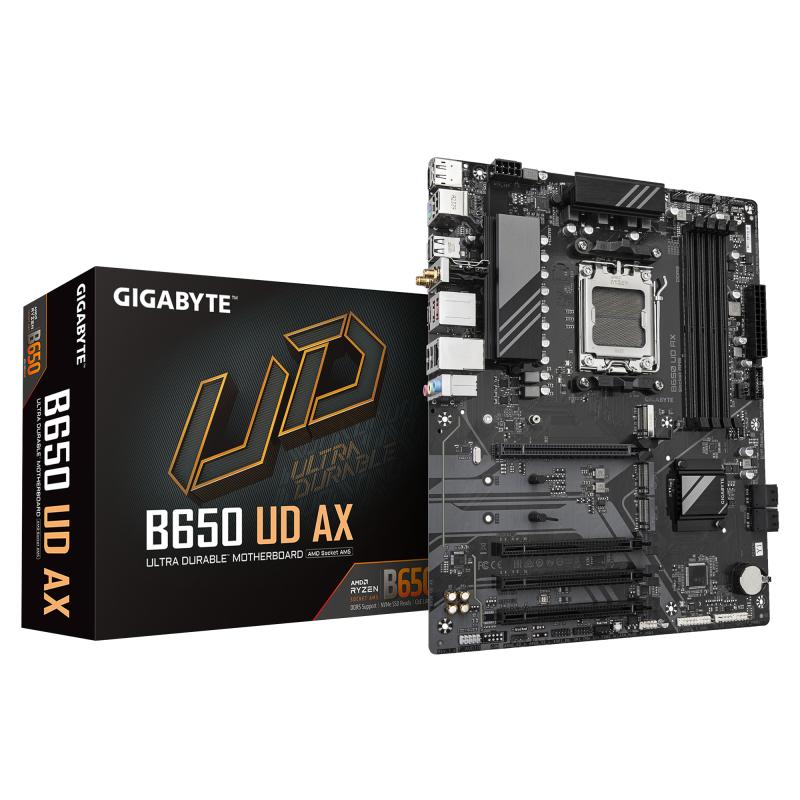

Placa de Baza GIGABYTE B650 UD AX AM5, 4x DDR5, 1x DP 1x HDMI
821,10 lei
72 în stoc (poate fi pre-comandat)
Descriere
Placa de Baza GIGABYTE B650 UD AX AM5, 4x DDR5, 1x DP 1x HDMI, 1x PCIE 4.0 x16 2x PCIE 3.0 x16 1x PCIE 3.0 x1, 3x M.2, 4x SATA 6GB/s, ATX.
Caracteristici
- PCI: 0
- Serial-or-Paralel: No/No
- Video-Connection: HDMI/DP
- Wi-Fi: Yes
- USB3: 4-8
- PCI-Ex1: 1
- Onboard-CPU: No
- Country of origin: China
- RAID support: Yes
- Warranty period: 3 year(s)
- Component for: PC
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
- DisplayPort version: 1.4
- Ethernet interface type: Gigabit Ethernet
- Memory channels: Dual-channel
- Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
- Ethernet LAN: Yes
- HDMI ports quantity: 1
- Ethernet LAN (RJ-45) ports: 1
- HDMI version: 2.1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
- Headphone outputs: 1
- Processor manufacturer: AMD
- Microphone in: Yes
- Width: 305 mm
- Depth: 244 mm
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
- Products per shipping (inner) case: 1 pc(s)
- Batteries included: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
- Audio output channels: 7.1 channels
- Audio Chip: Realtek ALC897
- PCI Express x16 (Gen 4.x) slots: 1
- Supported storage drive types: HDD & SSD
- LAN controller: Realtek RTL8111H
- HDCP: Yes
- Screws included: Yes
- Product colour: Brown
- Package weight: 2.2 kg
- DisplayPorts quantity: 1
- VGA (D-Sub) ports quantity: 0
- Parallel processing technology support: Not supported
- DVI-D ports quantity: 0
- DirectX version: 12.0
- Maximum resolution: 4096 x 2160 pixels
- Windows operating systems supported: Windows 10 x64, Windows 11 x64
- Model Chipset: B650
- Gaming: Nu
- Format: ATX
- Soclu Procesor: Socket AM5
- Tip Memorie: DDR5
- Numar sloturi memorie: 4
- Memorie maxima: 256 GB
- Tip slot interfata grafica: N/A
- Chipset audio integrat: Realtek
- Canale audio: 7.1
- Wireless: Da
- Bluetooth: Nu
- HDMI: Da
- Thunderbolt: Nu
- Sloturi M.2: 3
- RJ-45 LAN: 1
- Number of memory slots: 4
- Memory slots type: DIMM
- Unbuffered memory: Yes
- Supported storage drive interfaces: M.2, SATA III
- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- EPS power connector (8-pin): Yes
- Motherboard chipset family: AMD
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
- Clear CMOS jumper: Yes
- Supported memory types: DDR5-SDRAM
- Maximum internal memory: 256 GB
- Maximum internal memory per slot: 64 GB
- Number of HDDs supported: 4
- Number of storage drives supported: 7
- Front panel connector: Yes
- Number of CPU fan connectors: 2
- TPM connector: Yes
- Number of water pump connectors: 2
- RGB LED pin header: Yes
- Number of RGB LED pin headers: 4
- WiFi-AP antenna jack: 2
- Motherboard form factor: ATX
- PC health monitoring: Fan, Temperature, Voltage, Water cooling
- Power source type: ATX
- Number of M.2 (M) slots: 3
- 1st M.2 largest key size: 25110
- 1st M.2 highest PCI Express generation: 5.0
- 2nd M.2 largest key size: 22110
- 2nd M.2 highest PCI Express generation: 4.0
- 3rd M.2 largest key size: 22110
- 3rd M.2 highest PCI Express generation: 4.0
- ACPI version: 5.0
- Desktop Management Interface (DMI) version: 2.7
- System Management BIOS (SMBIOS) version: 2.7
- Battery weight: 3 g
- Lithium weight per battery: 0.07 g
- Number of battery cells: 1
- Battery technology: Lithium-Manganese Dioxide (LiMnO2)
- Battery type: CR2032
- Package width: 335 mm
- Package depth: 270 mm
- Package height: 80 mm
- Height: 35 mm
- Antenna included: Yes
- Bundled software: Norton® Internet Security (OEM version) LAN bandwidth management software
- 12V power connector: Yes
- Clear CMOS button: Yes
- ECC сompatibility: Non-ECC
- USB 2.0 connectors: 3
- Supported memory clock speed (max): 7600 MHz
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
- Serial port headers: 1
- RAID levels: 0, 1, 10
- Processor socket: Socket AM5
- Supported processor sockets: Socket AM5
- Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- Number of chassis fan connectors: 3
- Motherboard chipset: AMD B650
- Number of EPS power connectors (8-pin): 1
- USB 2.0 ports quantity: 6
- PCI Express x16 (Gen 3.x) slots: 2
- WLAN controller model: Realtek RTL8851BE
- Supported memory clock speeds: 4800,5200,5600,6000,6200,6400,6600,6800,7000,7200,7600 MHz
- MB-Format: ATX
- RAM-Slots: 4
- USB Type C: N/A
- MB-Socket: AM5
- PCI-Ex16: 4
- Weight: 1.95 kg
Informații suplimentare
| Greutate | 1,34 kg |
|---|---|
| Dimensiuni | 27 × 8 × 34 cm |
