Placa de baza Gigabyte B450M DS3H WIFI CPU AM4 Socket Chipset AMD B450 Memory 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory Dual channel memory architecture Support for DDR4 3600 (O.C.)/3466 (O.C.)/2933/2667/2400/2133 MHz memory modules Onboard Graphics – Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz (Note) Audio Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out LAN Realtek® GbE LAN chip (10/100/1000 Mbit) Wireless Communication module Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band BLUETOOTH 4.2 1 x PCI Express x16 slot 1 x PCI Express x16 slot, running at x1 (PCIEX1_2) 1 x PCI Express x1 slot 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support) USB 4 x USB 3.1 Gen 1 ports on the back panel Chipset: 2 x USB 3.1 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x CPU cooler LED strip/RGB LED strip header 1 x RGB LED strip header 2 x addressable LED strip headers 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2×10 pin, for the GC-TPM2.0 module only) 1 x serial port header 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x HDMI port 4 x USB 3.1 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (1T1R) 1 x RJ-45 port 3 x audio jacks I/O Controller Form Factor Micro ATX Form Factor; 24.4cm x 21.5cm.

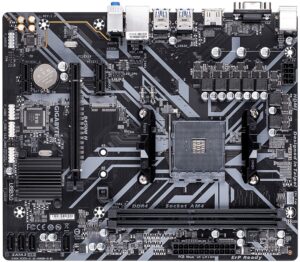

Placa de baza Gigabyte B450M DS3H WIFI, Socket AM4
486,71 lei
Disponibil pentru precomandă
SKU:
B450M DS3H WIFI
Categorie: Placi de baza
Descriere
Caracteristici
- Video-Connection: HDMI
- Wi-Fi: Yes
- Country of origin: China
- RAID support: Yes
- Warranty period: 3 year(s)
- Component for: PC
- Package width: 265 mm
- Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
- USB connector type: USB Type-A
- Ethernet interface type: Gigabit Ethernet
- Package height: 54 mm
- Memory channels: Dual-channel
- BLUETOOTH: Yes
- Ethernet LAN: Yes
- HDMI ports quantity: 1
- Ethernet LAN (RJ-45) ports: 1
- Maximum internal memory: 128 GB
- HDMI version: 2.0
- WLAN controller model: Realtek RTL8821CE
- Processor manufacturer: AMD
- Bluetooth version: 4.2
- Products per shipping (inner) case: 1 pc(s)
- Batteries included: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
- USB 2.0 ports quantity: 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- Audio output channels: 7.1 channels
- On-board graphics card: No
- Supported storage drive types: HDD & SSD
- Supported memory types: DDR4-SDRAM
- Processor socket: Socket AM4
- Number of M.2 (M) slots: 1
- PCI Express x1 slots: 1
- HDCP: Yes
- DVI-D ports quantity: 1
- Product colour: Brown
- VGA (D-Sub) ports quantity: 0
- Parallel processing technology support: Not supported
- DirectX version: 12.0
- Maximum resolution: 4096 x 2160 pixels
- Package depth: 265 mm
- Model Chipset: B450
- Gaming: Nu
- Format: Micro-ATX (mATX)
- Soclu Procesor: Socket AM4
- Tip Memorie: DDR4
- Numar sloturi memorie: 4
- Memorie maxima: 128 GB
- Tip slot interfata grafica: PCIe 3.0 x16
- Chipset audio integrat: Realtek
- Canale audio: 7.1
- Wireless: Da
- Bluetooth: Da
- USB Type C: Da
- HDMI: Da
- Thunderbolt: Nu
- Sloturi M.2: 1
- RJ-45 LAN: 1
- Number of memory slots: 4
- Memory slots type: DIMM
- Unbuffered memory: Yes
- Supported storage drive interfaces: M.2, SATA III
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
- Number of SATA III connectors: 4
- Number of SATA II connectors: 0
- Number of SATA connectors: 0
- Number of Parallel ATA connectors: 0
- Front panel audio connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- PS/2 ports quantity: 1
- Motherboard form factor: micro ATX
- Motherboard chipset family: AMD
- Audio Chip: Realtek ALC887
- BIOS type: UEFI AMI
- Clear CMOS jumper: Yes
- mSATA ports quantity: 0
- ECC сompatibility: ECC & Non-ECC
- Number of HDDs supported: 4
- Front panel connector: Yes
- TPM connector: Yes
- RGB LED pin header: Yes
- Power source type: ATX
- ACPI version: 5.0
- Desktop Management Interface (DMI) version: 2.7
- System Management BIOS (SMBIOS) version: 2.7
- Battery weight: 3 g
- Lithium weight per battery: 0.07 g
- Number of battery cells: 1
- Battery technology: Lithium-Manganese Dioxide (LiMnO2)
- Battery type: CR2032
- Height: 35 mm
- Maximum number of SMP processors: 1
- Discrete graphics support: Yes
- Total number of SATA connectors: 4
- 12V power connector: Yes
- S/PDIF out connector: Yes
- BIOS memory size: 128 Mbit
- Serial port headers: 1
- RAID levels: 0, 1, 10
- Maximum graphics card memory: 16000 MB
- eSATA ports quantity: 0
- Firewire (IEEE 1394) ports: 0
- PCI Express x16 slots: 2
- Number of storage drives supported: 5
- PC health monitoring: Fan, Temperature, Voltage
- Supported processor sockets: Socket AM4
- Maximum internal memory supported by processor: 128 GB
- Supported processor sockets (cooler): Socket AM4
- Supported memory module capacities: 4GB, 8GB, 16GB, 32GB
- Motherboard chipset: AMD B450
- Bundled software: Norton Internet Security, cFosSpeed
- Windows operating systems supported: Windows 10 x64, Windows 7 x64
- Supported memory clock speeds: 2133,2400,2667,2933,3200,3466,3600 MHz
- Supported memory clock speed (max): 3600 MHz
- Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 2000 Series
- Wi-Fi standards: 802.11a, 802.11ad, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
- Package weight: 950 g
Informații suplimentare
Greutate | 1 kg |
---|---|
Dimensiuni | 27 × 27 × 5 cm |
Garanție |
36 luni |
