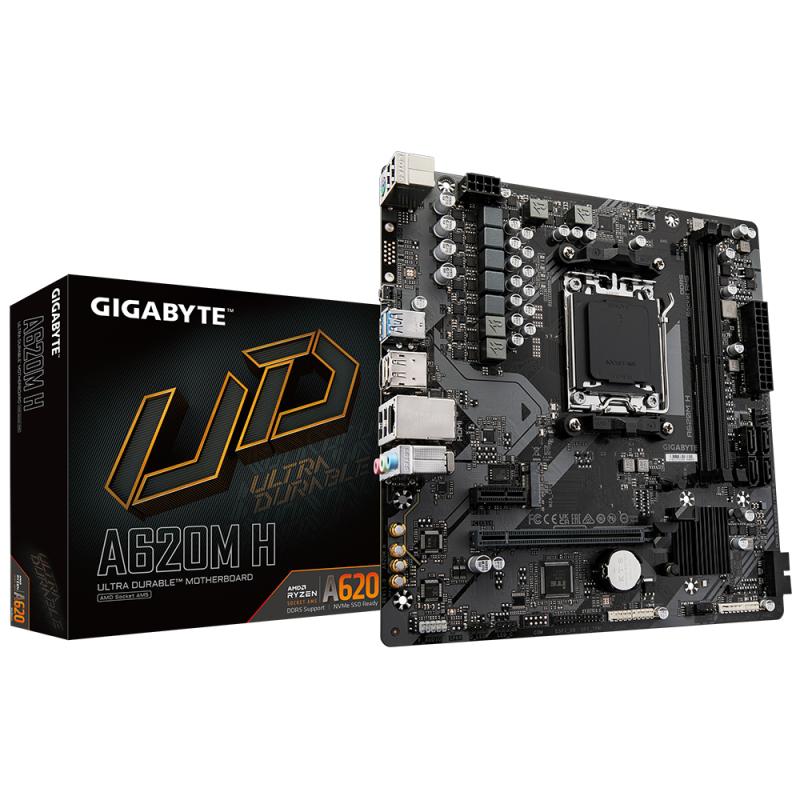

Placa de baza Gigabyte A620M H AM5, 2x DDR5, 1x DisplayPort

Name: Placa de baza Gigabyte A620M H AM5, 2x DDR5, 1x DisplayPort - DLX
Brand: Gigabyte
SKU: A620M H
Price: 558.11 RON
Availability: InStock

558,11 lei

8 în stoc

Adaugă la lista de dorințe

SKU: A620M H Categorie: Placi de baza

Descriere

Placa de baza Gigabyte A620M H AM5, 2x DDR5, 1x DisplayPort, 1x HDMI, 1x PCIe x16, 1x PCIe x1, 1x M.2, 4x SATA 6Gbps, mATX.

Caracteristici

PCI: 0
Serial-or-Paralel: No/No
Video-Connection: DVI/HDMI
Wi-Fi: No
Onboard-CPU: No
Country of origin: China
RAID support: Yes
Warranty period: 3 year(s)
Component for: PC
Package width: 265 mm
DisplayPort version: 1.4
USB connector type: USB Type-A, USB Type-C
Ethernet interface type: Gigabit Ethernet
Package height: 54 mm
Memory channels: Dual-channel
Ethernet LAN: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
HDMI ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI version: 2.1
Maximum internal memory: 96 GB
Processor manufacturer: AMD
Microphone in: Yes
Products per shipping (inner) case: 1 pc(s)
Batteries included: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
USB 2.0 ports quantity: 4
Audio output channels: 7.1 channels
PCI Express x16 slots: 1
Number of memory slots: 2
Supported storage drive types: HDD & SSD
Number of M.2 (M) slots: 1
PCI Express x1 slots: 1
HDCP: Yes
Product colour: Brown
DisplayPorts quantity: 1
VGA (D-Sub) ports quantity: 0
Parallel processing technology support: Not supported
DVI-D ports quantity: 0
DirectX version: 12.0
Maximum resolution: 4096 x 2160 pixels
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Package depth: 265 mm
Model Chipset: A620
Gaming: Nu
Format: Micro-ATX (mATX)
Soclu Procesor: Socket AM5
Tip Memorie: DDR5
Numar sloturi memorie: 2
Memorie maxima: 96 GB
Tip slot interfata grafica: PCIe 4.0 x16
Chipset audio integrat: Realtek
Canale audio: 7.1
Wireless: Nu
Bluetooth: Nu
USB Type C: Da
HDMI: Da
Thunderbolt: Nu
Sloturi M.2: 1
RJ-45 LAN: 1
Memory slots type: DIMM
Unbuffered memory: Yes
Supported storage drive interfaces: M.2, SATA III
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
Number of SATA III connectors: 4
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
EPS power connector (8-pin): Yes
PS/2 ports quantity: 1
Motherboard form factor: micro ATX
Motherboard chipset family: AMD
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
Clear CMOS jumper: Yes
Supported memory types: DDR5-SDRAM
Number of HDDs supported: 4
Front panel connector: Yes
TPM connector: Yes
RGB LED pin header: Yes
PC health monitoring: Fan, Temperature, Voltage, Water cooling
ACPI version: 5.0
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
Battery weight: 3 g
Lithium weight per battery: 0.07 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
Height: 35 mm
Total number of SATA connectors: 4
12V power connector: Yes
Cables included: SATA
ECC сompatibility: Non-ECC
Supported memory clock speed (max): 7200 MHz
Supported memory module capacities: 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
Headphone outputs: 3
RAID levels: 0, 1, 10
Processor socket: Socket AM5
Supported processor sockets: Socket AM5
Compatible processor series: AMD Ryzen 7000 Series
Width: 230 mm
Number of storage drives supported: 5
Maximum internal memory supported by processor: 96 GB
Motherboard chipset: AMD A620
Depth: 225 mm
Bundled software: Norton Internet Security LAN bandwidth management software
Supported memory clock speeds: 4400,4800,5200,5600,6000,6200,6400,6800,7200 MHz
Package weight: 897 g
