Vândut

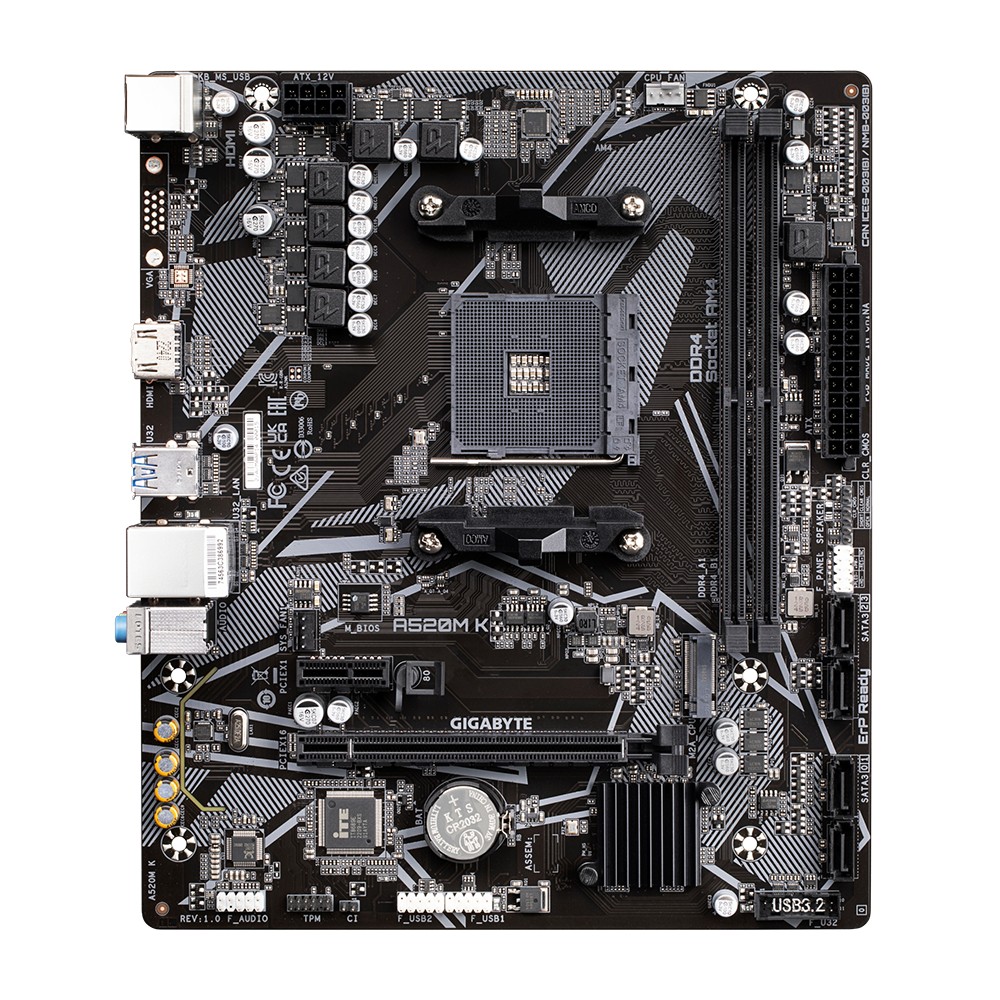

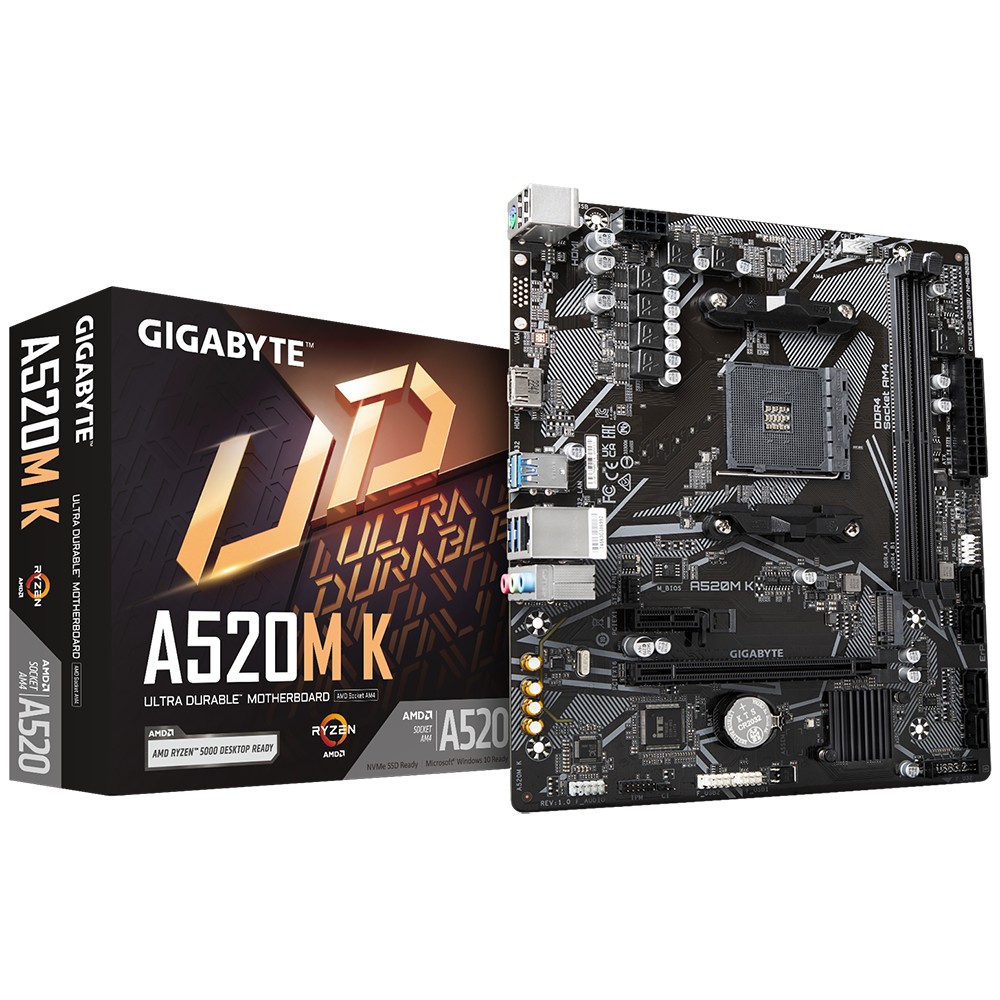

Placa de baza Gigabyte A520M K AM4 DDR4
368,00 lei
Stoc epuizat
Descriere
Placa de baza Gigabyte A520M K AM4 DDR4, 2x sloturi RAM, max. 64GB, frecventa maxima suportata 5100MHz, 1x HDMI, 1x PCIe x16, 1x PCIe x1, 1x M.2, 4x conectori SATA 6GB/s, 1x LAN 1Gbps, microATX.
Caracteristici
- PCI: 0
- Serial-or-Paralel: No/No
- Video-Connection: DVI/HDMI
- Wi-FI: No
- Onboard-CPU: No
- Component for: PC
- Cooling type: Active
- USB connector type: USB Type-A
- Ethernet interface type: Gigabit Ethernet
- Windows operating systems supported: Windows 10 x64
- Memory channels: Dual-channel
- Maximum internal memory: 64 GB
- Ethernet LAN: Yes
- HDMI ports quantity: 1
- HDMI version: 2.1
- Processor manufacturer: AMD
- USB 2.0 ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- PCI Express x1 (Gen 3.x) slots: 2
- PCI Express x16 (Gen 3.x) slots: 1
- Audio output channels: 7.1 channels
- Number of memory slots: 2
- Supported storage drive types: HDD & SSD
- Supported memory types: DDR4-SDRAM
- Processor socket: Socket AM4
- Number of M.2 (M) slots: 1
- Serial ports quantity: 1
- HDCP: Yes
- DVI-D ports quantity: 1
- Digital audio optical out: 1
- VGA (D-Sub) ports quantity: 0
- Maximum resolution: 4096 x 2160 pixels
- Drivers included: Yes
- Model Chipset: A520
- Gaming: Nu
- Format: Micro-ATX (mATX)
- Soclu Procesor: Socket AM4
- Tip Memorie: DDR4
- Numar sloturi memorie: 2
- Memorie maxima: 64 GB
- Tip slot interfata grafica: PCIe 3.0 x16
- Chipset audio integrat: Realtek
- Canale audio: 7.1
- Wireless: Nu
- Bluetooth: Nu
- USB Type C: Da
- HDMI: Da
- Thunderbolt: Nu
- Sloturi M.2: 1
- RJ-45 LAN: 1
- Memory slots type: DIMM
- Unbuffered memory: Yes
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
- Number of SATA III connectors: 4
- Number of SATA II connectors: 0
- Number of Parallel ATA connectors: 0
- Front panel audio connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- PS/2 ports quantity: 1
- Motherboard form factor: micro ATX
- Motherboard chipset family: AMD
- Audio Chip: Realtek ALC887
- BIOS type: UEFI AMI
- Clear CMOS jumper: Yes
- ECC сompatibility: ECC & Non-ECC
- Front panel connector: Yes
- TPM connector: Yes
- RGB LED pin header: Yes
- ACPI version: 5.0
- Desktop Management Interface (DMI) version: 2.7
- System Management BIOS (SMBIOS) version: 2.7
- Discrete graphics support: Yes
- Total number of SATA connectors: 4
- 12V power connector: Yes
- Clear CMOS button: Yes
- BIOS memory size: 128 Mbit
- Serial port headers: 1
- RAID levels: 0, 1, 10
- Chassis intrusion connector: Yes
- eSATA ports quantity: 0
- Firewire (IEEE 1394) ports: 0
- Motherboard chipset: AMD A520
- Supported storage drive interfaces: M.2, PCI Express 3.0, SATA III
- Supported processor sockets: Socket AM4
- Number of displays supported: 2
- Maximum internal memory supported by processor: 64 GB
- Power fan connector: Yes
- Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen Threadripper 3000 Series, AMD Ryzen Threadripper PRO 3000 WX-Series
- PC health monitoring: CPU, Fan, LED, Power supply, Temperature, Voltage
- Supported memory module capacities: 1GB, 2GB, 4GB, 8GB, 16GB, 32GB
- Supported memory clock speeds: 2133,2400,2667,2933,3200,3333,3600,4000,4600,4866,5000 MHz
- Microphone in: Yes
- Headphone outputs: 1
- Cables included: SATA
- Power source type: ATX
- Width: 233 mm
- Depth: 19.8 mm
- Bundled software: Norton® Internet Security (OEM version); LAN bandwidth management software
Informații suplimentare
| Greutate | 0,66 kg |
|---|---|
| Dimensiuni | 27 × 22 × 5,5 cm |
| Garanție |
36 luni |
