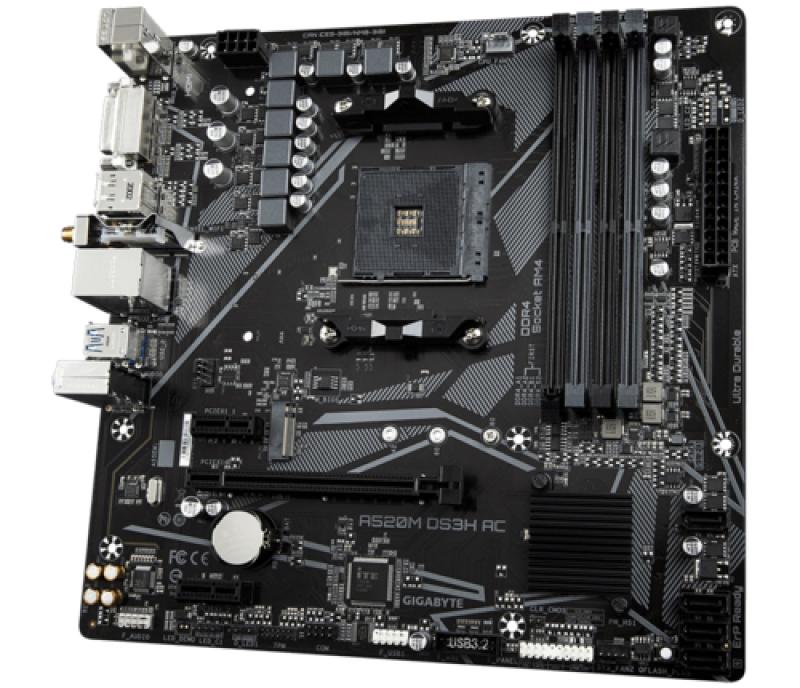

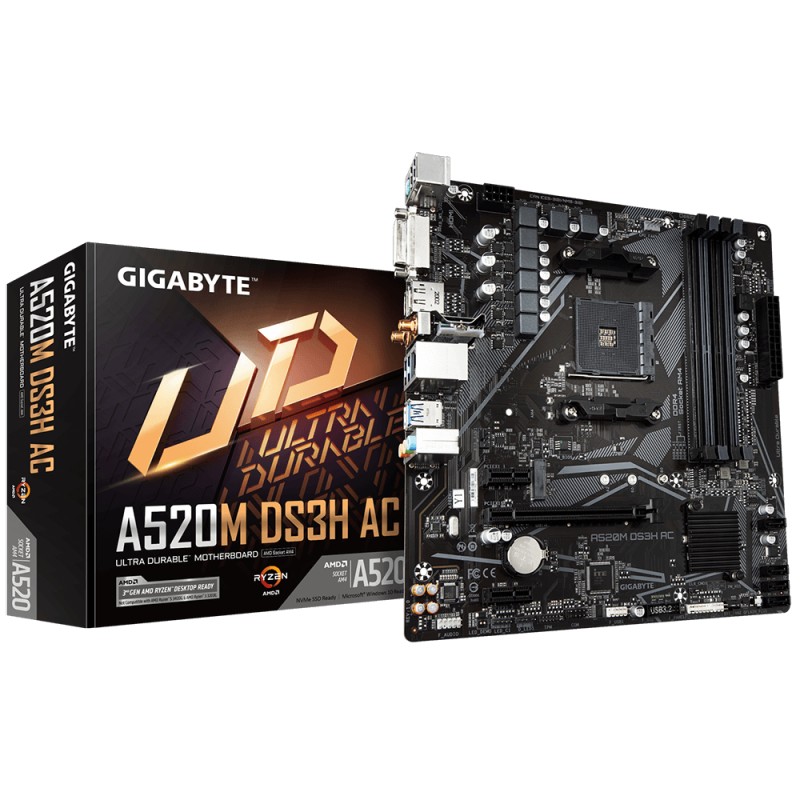

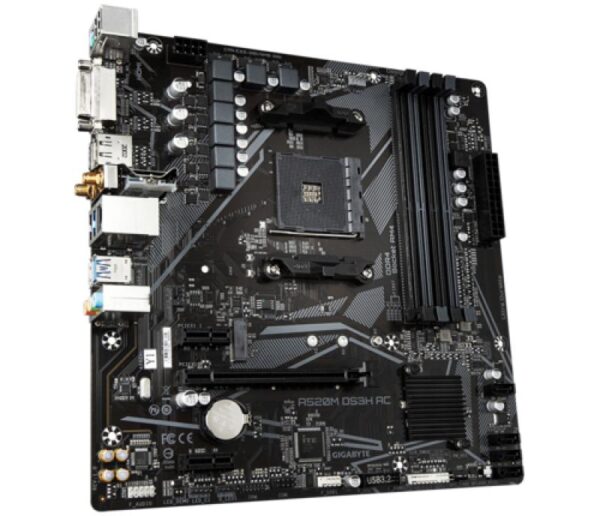

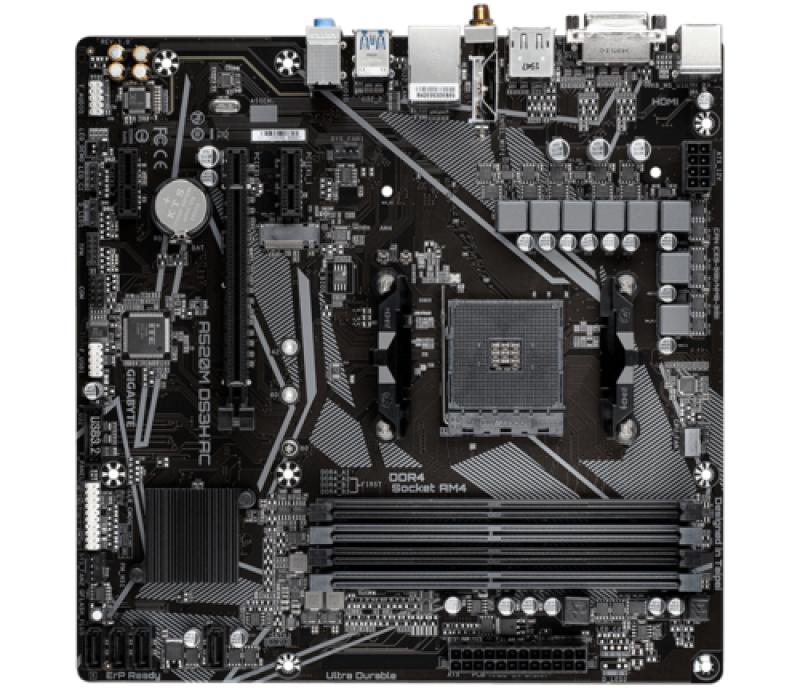

Placa de Baza GIGABYTE A520M DS3H AC AM4, 4x DDR4
453,00 lei
4 în stoc (poate fi pre-comandat)
Descriere
Placa de Baza GIGABYTE A520M DS3H AC AM4, 4x DDR4, 1x PCIE 3.0 x16 2x PCIE 3.0 x1, 1x M.2, 4x SATA 6GB/s, mATX.
Caracteristici
- PCI: 0
- Serial-or-Paralel: No/No
- Video-Connection: HDMI
- Wi-FI: Yes
- USB3: 4-8
- PCI-Ex16: 1
- Onboard-CPU: No
- RAID support: Yes
- Component for: PC
- Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
- DisplayPort version: 1.4
- Ethernet interface type: Gigabit Ethernet
- Memory channels: Dual-channel
- Ethernet LAN: Yes
- HDMI ports quantity: 1
- HDMI version: 2.1
- Maximum internal memory: 128 GB
- Processor manufacturer: AMD
- USB 2.0 ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- PCI Express x1 (Gen 3.x) slots: 2
- PCI Express x16 (Gen 3.x) slots: 1
- Audio output channels: 7.1 channels
- Line-in: Yes
- Supported storage drive types: HDD & SSD
- Supported memory types: DDR4-SDRAM
- Processor socket: Socket AM4
- WLAN controller model: Intel Dual Band Wireless-AC 3168
- Number of M.2 (M) slots: 1
- HDCP: Yes
- Screws included: Yes
- DVI-D ports quantity: 1
- DisplayPorts quantity: 1
- VGA (D-Sub) ports quantity: 0
- Parallel processing technology support: Not supported
- Maximum resolution: 5120 x 2880 pixels
- Windows operating systems supported: Windows 10 x64, Windows 11
- Model Chipset: A520
- Gaming: Nu
- Format: Micro-ATX (mATX)
- Soclu Procesor: Socket AM4
- Tip Memorie: DDR4
- Numar sloturi memorie: 4
- Memorie maxima: 128 GB
- Tip slot interfata grafica: PCIe 3.0 x16
- Chipset audio integrat: Realtek
- Canale audio: 7.1
- Wireless: Da
- Bluetooth: Da
- HDMI: Da
- Thunderbolt: Nu
- Sloturi M.2: 1
- RJ-45 LAN: 1
- Number of memory slots: 4
- Memory slots type: DIMM
- Unbuffered memory: Yes
- Supported storage drive interfaces: M.2, SATA III
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
- Number of SATA III connectors: 4
- Number of SATA II connectors: 0
- Front panel audio connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Number of chassis fan connectors: 2
- EPS power connector (8-pin): Yes
- PS/2 ports quantity: 1
- Motherboard form factor: micro ATX
- Motherboard chipset family: AMD
- BIOS type: UEFI AMI
- Clear CMOS jumper: Yes
- ECC сompatibility: ECC & Non-ECC
- Number of HDDs supported: 4
- Front panel connector: Yes
- TPM connector: Yes
- RGB LED pin header: Yes
- WiFi-AP antenna jack: 2
- ACPI version: 5.0
- Desktop Management Interface (DMI) version: 2.7
- System Management BIOS (SMBIOS) version: 2.7
- Lithium weight per battery: 0.07 g
- Antenna included: Yes
- Maximum number of SMP processors: 1
- Discrete graphics support: Yes
- Total number of SATA connectors: 4
- 12V power connector: Yes
- BIOS memory size: 128 Mbit
- Serial port headers: 1
- RAID levels: 0, 1, 10
- Motherboard chipset: AMD A520
- 1st M.2 largest key size: 2280
- USB 2.0 connectors: 1
- Number of storage drives supported: 5
- PC health monitoring: Fan, Temperature, Voltage
- Number of EPS power connectors (8-pin): 1
- Supported processor sockets: Socket AM4
- Supported memory clock speed (max): 4733 MHz
- Number of displays supported: 3
- Number of CPU fan connectors: 1
- 1st M.2 highest PCI Express generation: 3.0
- Maximum internal memory per slot: 32 GB
- Number of RGB LED pin headers: 2
- Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen Threadripper 3000 Series, AMD Ryzen Threadripper PRO 3000 WX-Series
- RAM-Slots: 4
- MB-Format: micro-ATX
- MB-Socket: AM4
- PCI-Ex1: 2
- USB Type C: N/A
- Supported memory clock speeds: 2133,2400,2667,2933,3200,3300,3333,3400,3466,3600,3733,3800,3866,4000,4400,4733 MHz
- Microphone in: Yes
- Headphone outputs: 1
- Bluetooth version: 4.2
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
- Batteries included: Yes
- Height: 35 mm
- Width: 244 mm
- Depth: 244 mm
- Warranty period: 3 year(s)
- Package height: 68 mm
- Power source type: ATX
- Battery weight: 3 g
- Number of battery cells: 1
- Battery technology: Lithium-Manganese Dioxide (LiMnO2)
- Battery type: CR2032
- Products per shipping (inner) case: 1 pc(s)
- Package width: 270 mm
- Package depth: 268 mm
- Package weight: 1.21 kg
- Weight: 720 g
Informații suplimentare
| Greutate | 0,938 kg |
|---|---|
| Dimensiuni | 27,5 × 27 × 7 cm |
| Garanție |
36 luni |
