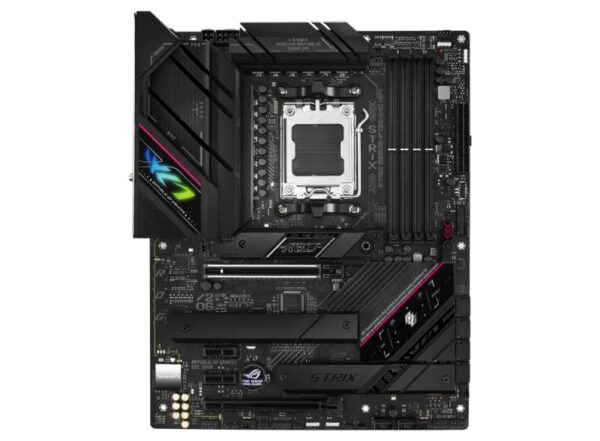

Placa de baza Asus ROG STRIX B650E-F AM5 WIFI, 4x DDR5 – RS B650E-F WIFI

Name: Placa de baza Asus ROG STRIX B650E-F AM5 WIFI, 4x DDR5 - RS B650E-F WIFI - DLX
Brand: Asus
SKU: RS B650E-F WIFI
Price: 1871.87 RON
Availability: InStock

1.871,87 lei

Disponibil pentru precomandă

Adaugă la lista de dorințe

SKU: RS B650E-F WIFI Categorie: Placi de baza

Descriere

Placa de baza Asus ROG STRIX B650E-F AM5 WIFI, 4x DDR5, 1x DisplayPort, 1x HDMI, 2x PCIe x16, 2x PCIe x1, 3x M.2, 4x SATA 6Gbps, WIFI 6, 2.5Gbps LAN, ATX.

Caracteristici

PCI: 0
Serial-or-Paralel: No/No
Video-Connection: HDMI/DP
Wi-Fi: Yes
Onboard-CPU: No
RAID support: Yes
Component for: PC
Memory channels: Dual-channel
BLUETOOTH: Yes
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Ethernet LAN: Yes
HDMI ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Maximum internal memory: 128 GB
Bluetooth version: 5.2
Processor manufacturer: AMD
Microphone in: Yes
Width: 305 mm
Depth: 244 mm
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Audio output channels: 7.1 channels
Line-in: Yes
PCI Express x16 (Gen 5.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
Supported storage drive types: HDD & SSD
Package weight: 9.22 kg
Package width: 280 mm
DisplayPorts quantity: 1
VGA (D-Sub) ports quantity: 0
Parallel processing technology support: Not supported
DVI-D ports quantity: 0
Package depth: 265 mm
Model Chipset: B650
Gaming: Da
Format: ATX
Soclu Procesor: Socket AM5
Tip Memorie: DDR5
Numar sloturi memorie: 4
Memorie maxima: 128 GB
Tip slot interfata grafica: PCIe 5.0 x16
Chipset audio integrat: Realtek
Canale audio: 7.1
Wireless: Da
Bluetooth: Nu
USB Type C: Da
HDMI: Da
Thunderbolt: Nu
Sloturi M.2: 3
RJ-45 LAN: 1
Number of memory slots: 4
Memory slots type: DIMM
Unbuffered memory: Yes
Supported storage drive interfaces: M.2, SATA III
Number of SATA III connectors: 4
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
EPS power connector (8-pin): Yes
Motherboard chipset family: AMD
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
Supported memory types: DDR5-SDRAM
ECC сompatibility: ECC & Non-ECC
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Number of chassis fan connectors: 4
RGB LED pin header: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Motherboard form factor: ATX
Windows operating systems supported: Windows 11 x64
Number of M.2 (M) slots: 3
12V power connector: Yes
Clear CMOS button: Yes
Cables included: SATA
S/PDIF out connector: Yes
Number of COM connectors: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Headphone outputs: 3
Thunderbolt headers: 1
Audio Chip: Realtek ALC4080
RAID levels: 0, 1, 10
Chassis intrusion connector: Yes
Processor socket: Socket AM5
Supported processor sockets: Socket AM5
Supported memory clock speeds: 4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz
Peripheral (Molex) power connectors (4-pin): 1
USB 2.0 connectors: 4
Motherboard chipset: AMD B650
PCI Express x1 (Gen 4.x) slots: 2
Compatible processor series: AMD Ryzen™ 7
Package height: 71 mm
LAN controller: Intel I225-V
