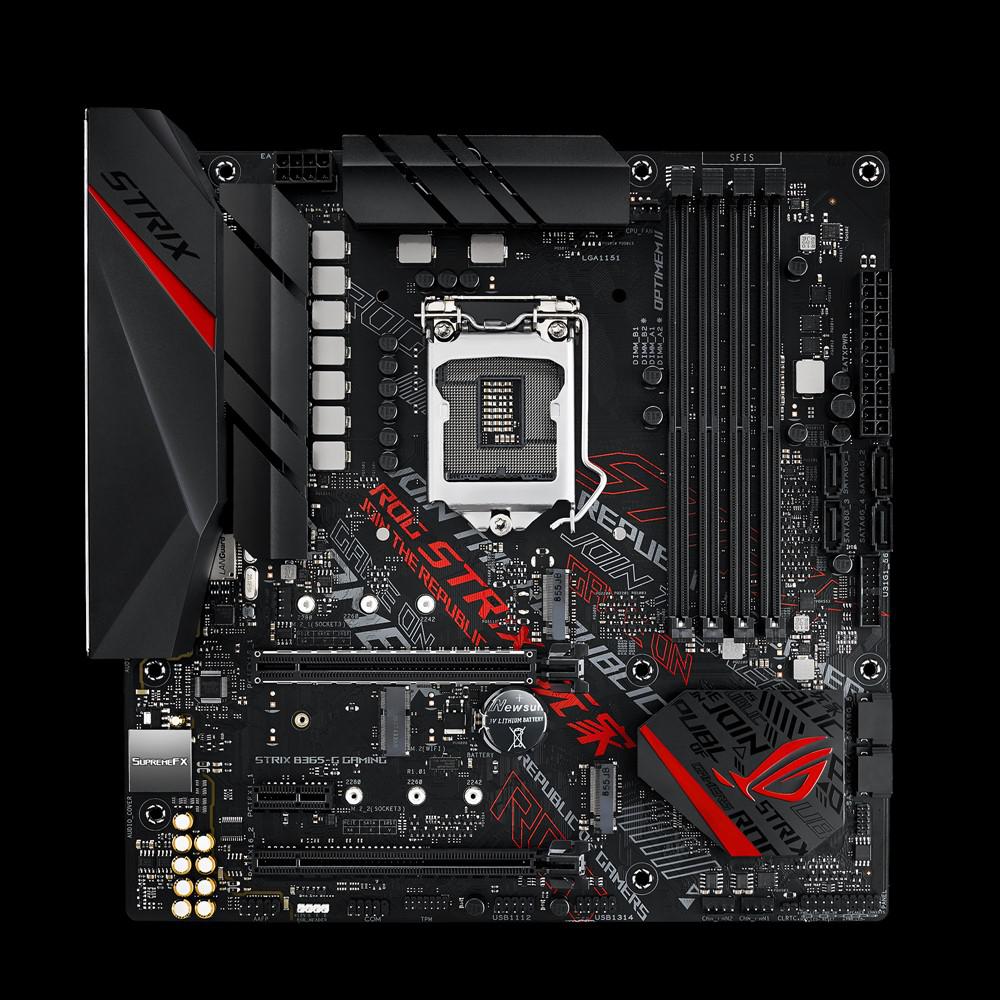

Placa de baza Asus Socket LGA1151 v2 ROG STRIX B365-G GAMING CPU Intel® 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® Turbo Boost Technology 2.0 * Refer to www.asus.com for CPU support list Chipset Build in Intel® B365 Memory Intel® B365 Chipset 4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). Graphic Integrated Graphics Processor- Intel® HD Graphics support Multi-VGA output support: HDMI/DVI-D ports – Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz – Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz Multi-GPU Support Supports AMD 2-Way CrossFireX Technology Expansion Slots 1 x PCIe 3.0 x16 1 x PCIe 3.0 x16 (max at x4 mode) *1 1 x PCIe 3.0 x1 Storage Intel® B365 Chipset: 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*2 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port (s) Support Raid 0, 1, 5, 10 Intel® Rapid Storage Technology supports Intel® Optane™ Memory Ready * LAN Intel® I219V Anti-surge LANGuard ROG GameFirst Technology Audio ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A – Dual OP Amplifiers – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB (Line-out at rear) 113 dB SNR recording input Audio Feature: – SupremeFX Shielding™ Technology – Optical S/PDIF out port (s) at back panel – LED-lit Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference, with a gorgeous illuminated trace path – Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity – Sonic Radar III – Sonic Studio III + Sonic Studio Link USB Ports Intel® B365 Chipset: 2 x USB 3.1 Gen 2 port (s) Intel® B365 Chipset: 6 x USB 3.1 Gen 1 port (s) Intel® B365 Chipset: 6 x USB 2.0 port (s) ROG Exclusive Features Pre-mounted I/O Shield ROG Exclusive Software – RAMCache III – CPU-Z – GameFirst V – Sonic Studio III + Sonic Studio Link – Sonic Radar III – Overwolf Special Features Gamer’s Guardian: – ESD Guards on LAN, Audio, KBMS and USB3.1/3.0/2.0 ports – DRAM Overcurrent Protection – 10K Black Metallic Capacitors – Stainless Steel Back I/O – Highly Durable Components – DIGI+ VRM – SafeSlot AURA: – Aura Lighting Control – Aura RGB Strip Headers ASUS Exclusive Features: – GPU Boost – AI Suite 3 – ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface ASUS Quiet Thermal Solution: – ASUS Fan Xpert 4 Core ASUS EZ DIY: – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS MyLogo ASUS Q-Design: – ASUS Q-Slot – ASUS Q-DIMM Armoury Crate Back I/O Ports 1 x PS/2 keyboard/mouse combo port (s) 1 x DVI 1 x HDMI 2 x USB 3.1 Gen 2 (red) Type-A 4 x USB 3.1 Gen 1 (blue) Type-A 2 x USB 2.0 1 x Optical S/PDIF out 5 x Audio jack (s) Anti-surge LAN (RJ45) port Internal I/O Ports 1 x AAFP connector 1 x Aura RGB Strip Header 1 x USB 3.1 Gen 1 (up to 5Gbps) connector (s) support (s) additional 2 USB 3.1 Gen 1 port (s) 2 x USB 2.0 connector (s) support (s) additional 4 USB 2.0 port (s) 1 x M.2 Socket 2 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 with E key for Wi-Fi module 1 x TPM header 1 x COM port (s) connector (s) 6 x SATA 6Gb/s connector (s) 1 x CPU Fan connector (s) 2 x Chassis Fan connector (s) 1 x AIO_PUMP connector 1 x 24-pin EATX Power connector (s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel connector (s) 1 x Clear CMOS jumper (s) Accessories User’s manual 2 x SATA 6Gb/s cable (s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x Strix door hanger 1 x CABLE TIE BLACK 1 x ROG Strix stickers BIOS 1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI6.1 Manageability WOL, PXE Operating System Windows® 10 64-bit Form Factor mATX Form Factor 9.6″ x 9.6″ (24.4 cm x 24.4 cm) Note *1 When the M.2 Socket with E key is occupied, PCIe x16_2 will run at x2 mode. *2 The M.2_1 socket shares bandwidth with SATA6G_1 ports when using M.2 SATA mode device.
Descriere
Caracteristici
- Form factor: micro-ATX
- Socket CPU: 1151
- Slot PCI-Ex1: 1
- Slot PCI-Ex16: 1
- Slot RAM: 4
- USB: 4-8
- Video-Connection: DVI/HDMI
- Conectori SATA: 6GB/s
- Chipset: Intel
- Slot M.2: 2
- RAM type: DDR4
- Video output: DVI/HDMI
Informații suplimentare
Greutate | 1 kg |
---|---|
Dimensiuni | 28 × 7,5 × 27,5 cm |
Garanție |
36 luni |
