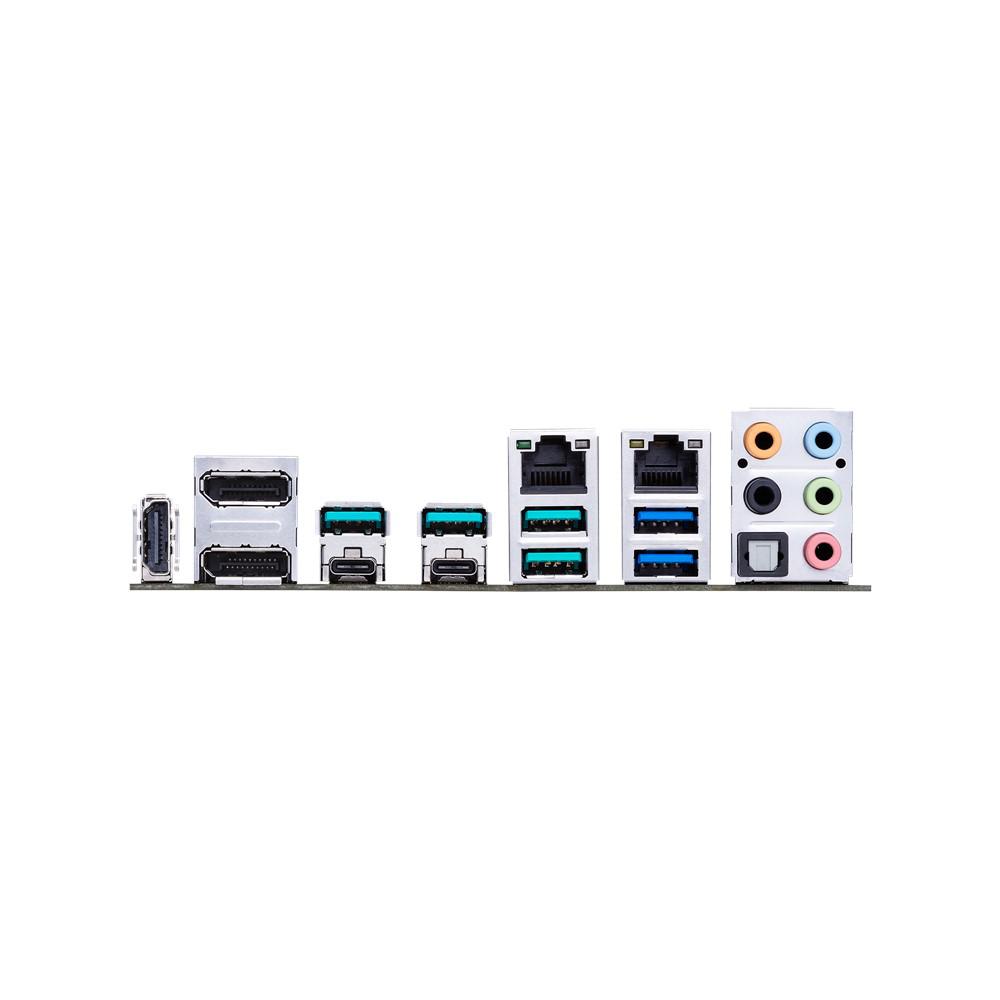

Placa de baza Asus Z490 Pro WS W480-ACE Socket LGA 1200 CPU Intel® Socket 1200 for 10th Gen Intel® Xeon® Core™, Pentium® Gold and Celeron® Processors * Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel® W480 Memory 4 x DIMM, Max. 128GB, DDR4 4800 (O.C.)/4600 (O.C)/4500 (O.C)/4400 (O.C)/4266 (O.C.)/4133 (O.C.)/4000 (O.C.)/3866 (O.C.)/3733 (O.C.)/3600 (O.C.)/3466 (O.C.)/3400 (O.C.)/3333 (O.C.)/3300 (O.C.)/3200 (O.C.)/3000 (O.C.)/2933 (O.C.)/2800 (O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * 10th Gen Intel® Core™ i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). ECC Memory (ECC mode) support varies by CPU. Thunderbolt 2 x Intel® Thunderbolt™ 3 ports (TypeC™) support DisplayPort and Thunderbolt™ video outputs Supports DisplayPort 1.4/ with max. resolution 7680/ x 3840/@ 60 Hz* * VGA resolution support depends on VGA cards’ resolution. Data transfer rate up to 40 Gbps Daisy-chain up to 12 Thunderbolt devices Up to 5V/3A, 15W charging support Graphic Integrated Graphics Processor 1 x DisplayPort 1.4 ** 1 x HDMI 1.4b *Graphics specifications may vary between CPU types. **Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update. Multi-GPU Support Supports AMD 3-Way CrossFireX™ Technology Expansion Slots Intel® 10th Gen Processors 2 x PCIe 3.0 x16 (x16 or dual x8) *1 Intel® W480 Chipset 1 x PCIe 3.0 x16 (x4 mode) *2 2 x PCIe 3.0 x1 Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel® W480 Chipset: 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*3 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*4 6 x SATA 6Gb/s port (s) Support Raid 0, 1, 5, 10 Intel® Rapid Storage Technology supports Intel® Optane™ Memory Ready LAN Intel® I225-LM 2.5Gb Ethernet Realtek® RTL8117 Audio Realtek® ALC S1220A 8-Channel High Definition Audio CODEC – Supports: Jack-detection, Multi-streaming, Front Panel Jack- retasking, Front Panel MIC Jack-retasking, up to 24-Bit/192kHz playback – High quality 120 dB SNR stereo playback output and SNR recording input Audio Feature: – Optical S/PDIF out port (s) at back panel – Audio Shielding – Dedicated audio PCB layers – Premium Japanese audio capacitors – Audio Cover – Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. https://www.asus.com/Motherboards/Pro-WS-W480-ACE/specifications.
Descriere
Caracteristici
- Form factor: ATX
- PCI: 1
- Slot PCI-Ex1: 2
- Slot PCI-Ex16: 3
- Slot RAM: 4
- Serial-or-Paralel: No/No
- USB: 4-8
- Video-Connection: HDMI/DP
- Conectori SATA: 6GB/s
- Chipset: Intel
- CPU încorporat: No
- Slot M.2: 2
- Socket CPU: 1200
- RAM type: DDR4
- Video output: HDMI/Display Port
Informații suplimentare
Greutate | 1 kg |
---|---|
Garanție |
36 luni |
