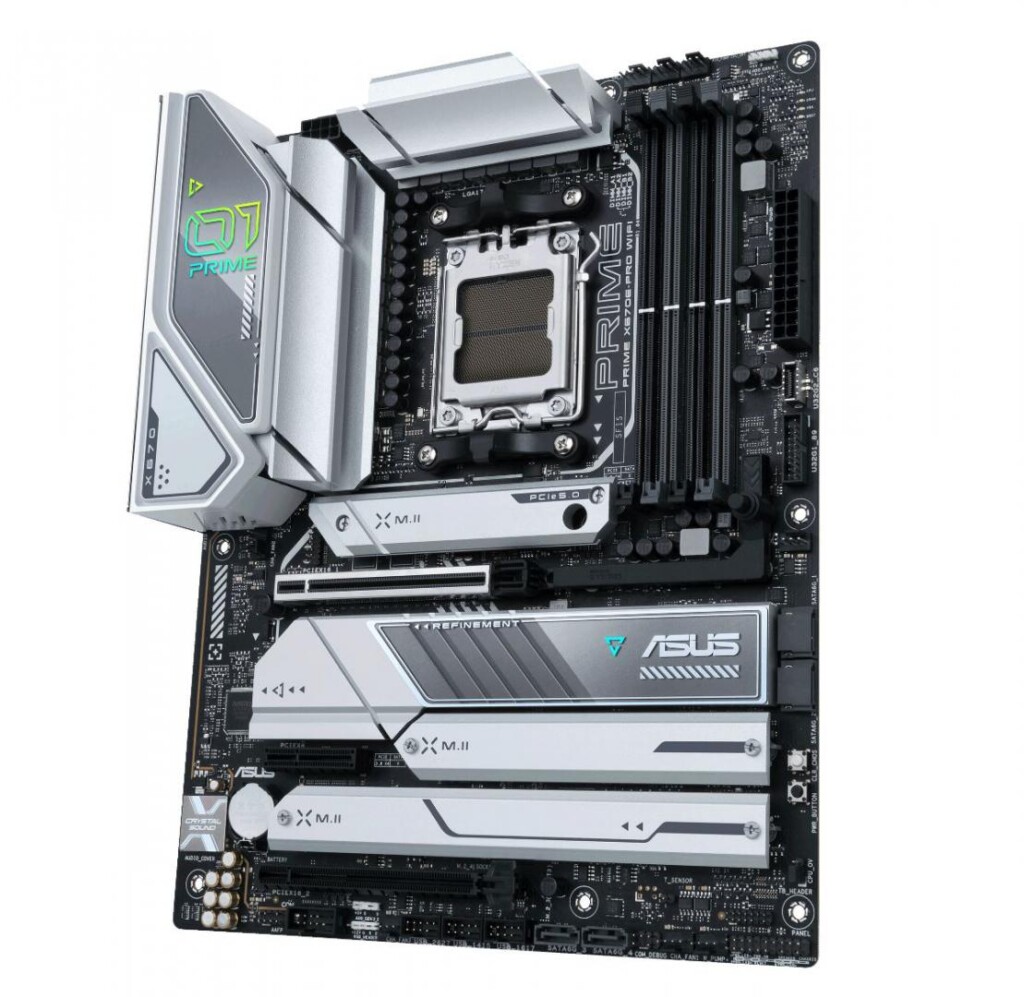

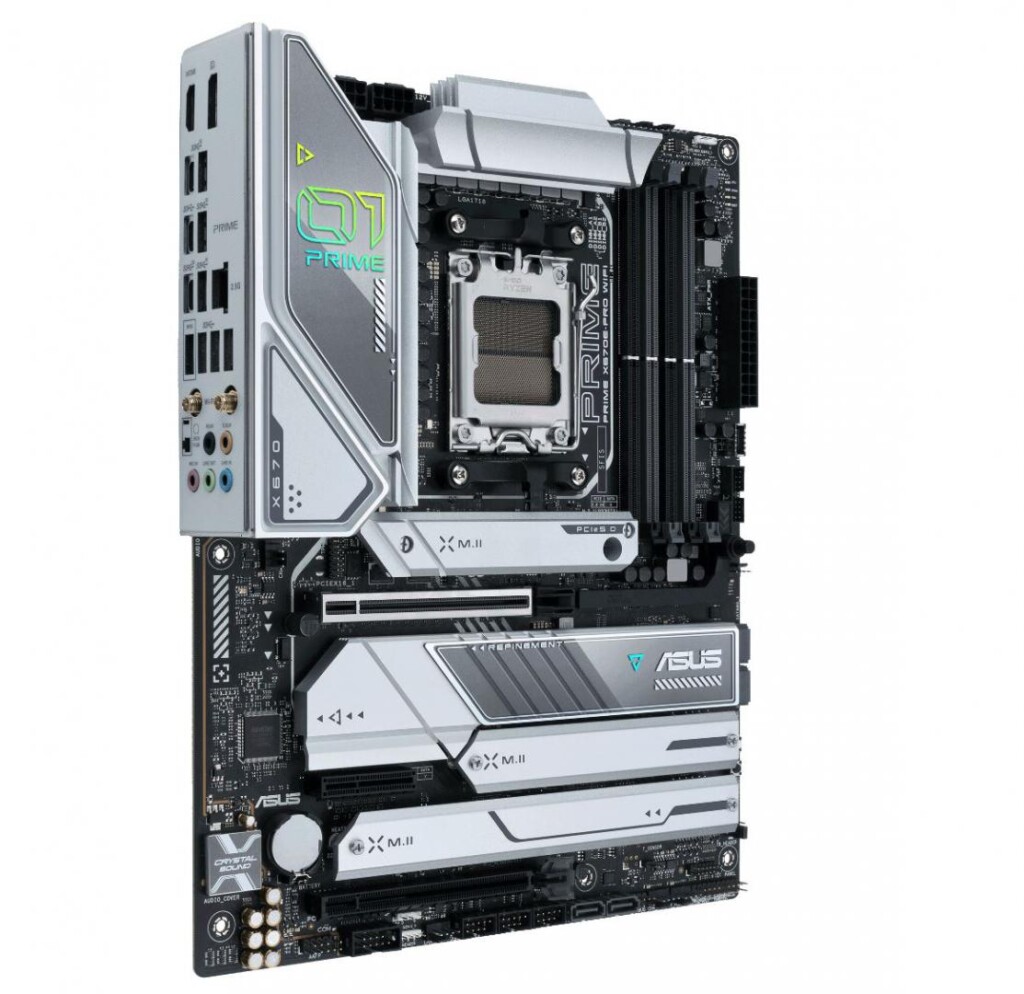

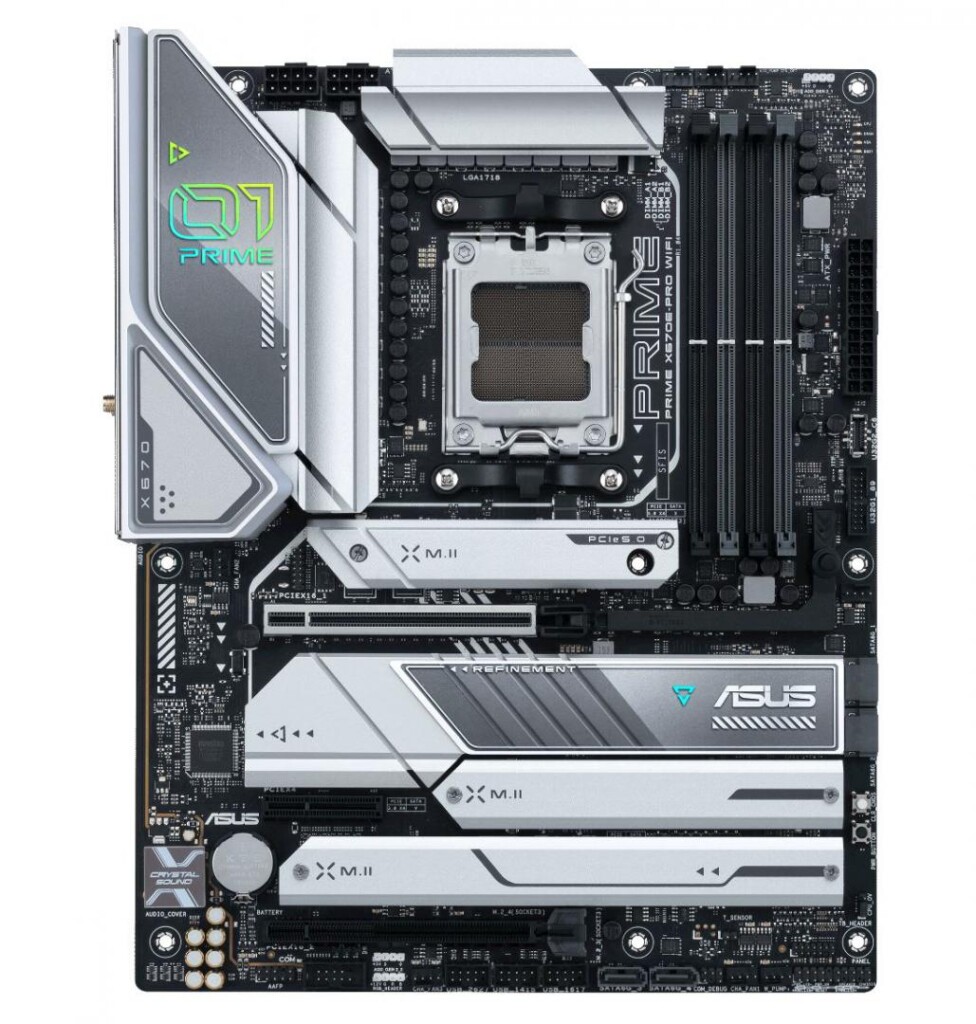

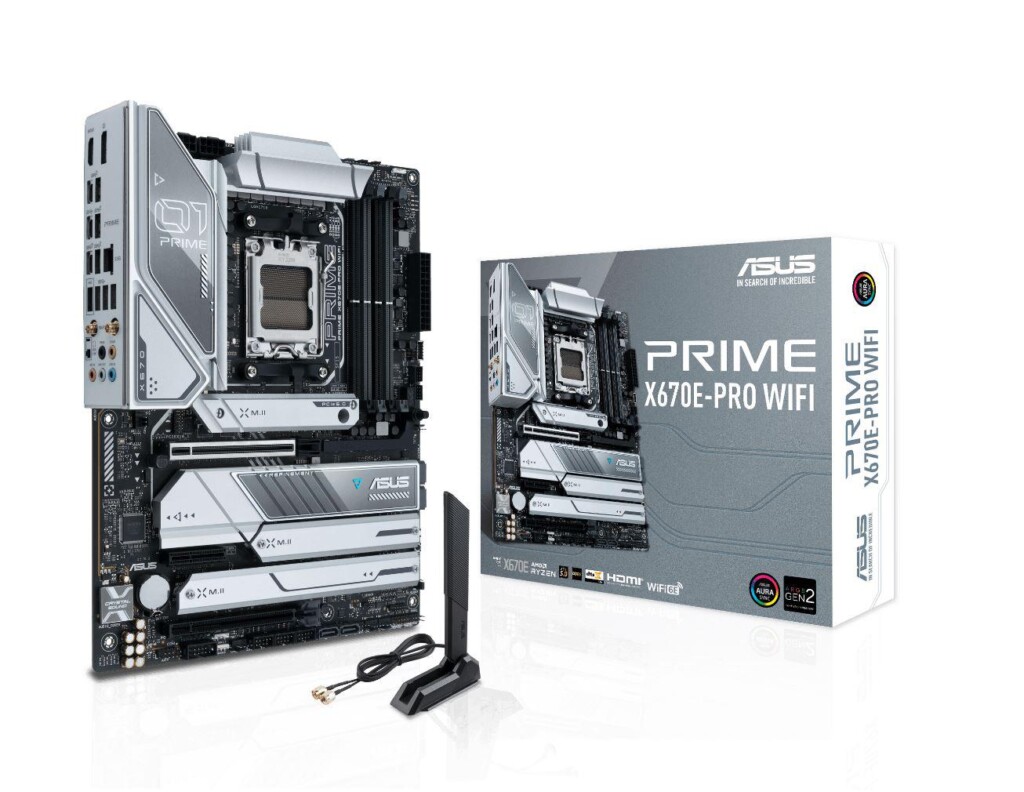

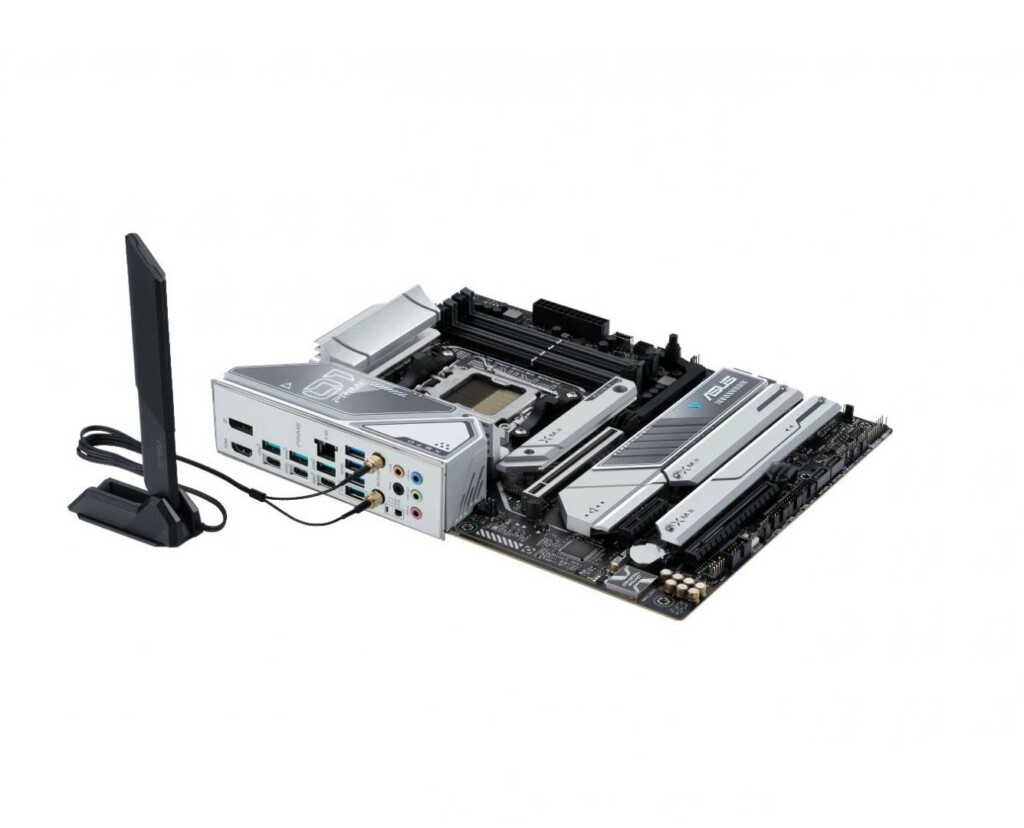

Placa de baza Asus PRIME X670E-PRO WIFI AM5 CPU AMD
2.260,00 lei
Stoc epuizat
Placa de baza Asus PRIME X670E-PRO WIFI AM5 CPU AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors* * Refer to www.asus.com for CPU support list. Chipset AMD X670 Memory 4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200 (OC)/ 6000 (OC)/ 5800 (OC)/ 5600 (OC)/ 5400 (OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO™) OptiMem II * Supported memory types, data rate (Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. ** Non-ECC, Un-buffered DDR5 Memroy supports On-Die ECC function. Graphics 1 x DisplayPort** 1 x HDMI® port*** * Graphics specifications may vary between CPU types. ** Supports max. 8K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. Expansion Slots AMD Ryzen™ 7000 Series Desktop Processors* -1 x PCIe 5.0 x16 slot AMD X670 Chipset -1 x PCIe 4.0 x16 slot (supports x4 mode) -1 x PCIe 4.0 x4 slots * Please check PCIe bifurcation table at https://www.asus.com/support/FAQ/1037507/. Storage Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen™ 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD X670 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)** M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports *AMD RAID Xpert Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10. ** M.2_2 slot shares bandwidth with SATA6G_1&2. When M.2_2 runs at PCIe x4 mode, SATA6G_1&2 will be disabled. Ethernet 1 x Realtek 2.5Gb Ethernet ASUS LANGuard Wireless & Bluetooth Wi-Fi 6E 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.2.
- PCI: 0
- Serial-or-Paralel: No/No
- Video-Connection: HDMI/DP
- Wi-FI: Yes
- Onboard-CPU: No
- RAID support: Yes
- Component for: PC
- Memory channels: Dual-channel
- Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
- Ethernet LAN: Yes
- HDMI ports quantity: 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
- Maximum internal memory: 128 GB
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
- Processor manufacturer: AMD
- USB 3.2 Gen 2x2 Type-C ports quantity: 1
- USB 2.0 ports quantity: 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- Audio output channels: 7.1 channels
- Line-in: Yes
- PCI Express x16 (Gen 5.x) slots: 1
- PCI Express x4 (Gen 4.x) slots: 1
- PCI Express x16 (Gen 4.x) slots: 1
- On-board graphics card: No
- Supported storage drive types: HDD & SSD
- DisplayPorts quantity: 1
- VGA (D-Sub) ports quantity: 0
- DVI-D ports quantity: 0
- Windows operating systems supported: Windows 10 x64, Windows 11 x64
- Model Chipset: X670E
- Gaming: Nu
- Format: ATX
- Soclu Procesor: Socket AM5
- Tip Memorie: DDR5
- Numar sloturi memorie: 4
- Memorie maxima: 128 GB
- Tip slot interfata grafica: N/A
- Chipset audio integrat: Realtek
- Canale audio: 7.1
- Wireless: Da
- Bluetooth: Da
- USB Type C: Da
- HDMI: Da
- Thunderbolt: Nu
- Sloturi M.2: 4
- RJ-45 LAN: 1
- Number of memory slots: 4
- Memory slots type: DIMM
- Unbuffered memory: Yes
- Supported storage drive interfaces: M.2, SATA III
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- Number of SATA III connectors: 4
- Number of SATA II connectors: 0
- Number of SATA connectors: 0
- Front panel audio connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- EPS power connector (8-pin): Yes
- Motherboard chipset family: AMD
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
- mSATA ports quantity: 0
- Supported memory types: DDR5-SDRAM
- ECC сompatibility: ECC & Non-ECC
- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
- Number of chassis fan connectors: 4
- TPM connector: Yes
- Motherboard form factor: ATX
- Clear CMOS button: Yes
- USB 2.0 connectors: 3
- Number of COM connectors: 1
- Number of storage drives supported: 8
- Thunderbolt headers: 1
- Number of M.2 (M) slots: 4
- Processor socket: Socket AM5
- Supported memory clock speeds: 4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz
- Motherboard chipset: AMD X670
- Audio Chip: Realtek S1220A
- Ethernet interface type: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
- Microphone in: Yes
- Bluetooth version: 5.2
- Weight: 1.7 kg
- Width: 305 mm
- Depth: 244 mm
- Package depth: 68 mm
- Package weight: 2.55 kg
- Package height: 273 mm
- Package width: 338 mm
- Product colour: Aluminium, Black
| Greutate | 2,1 kg |
|---|---|
| Dimensiuni | 34 × 7 × 27 cm |
| Garanție |
36 luni |
