Nou

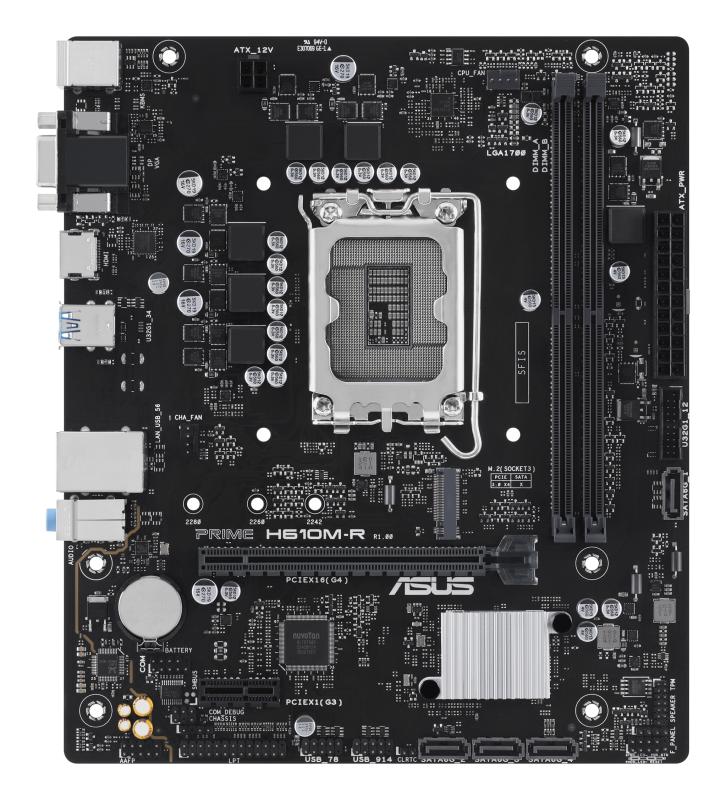

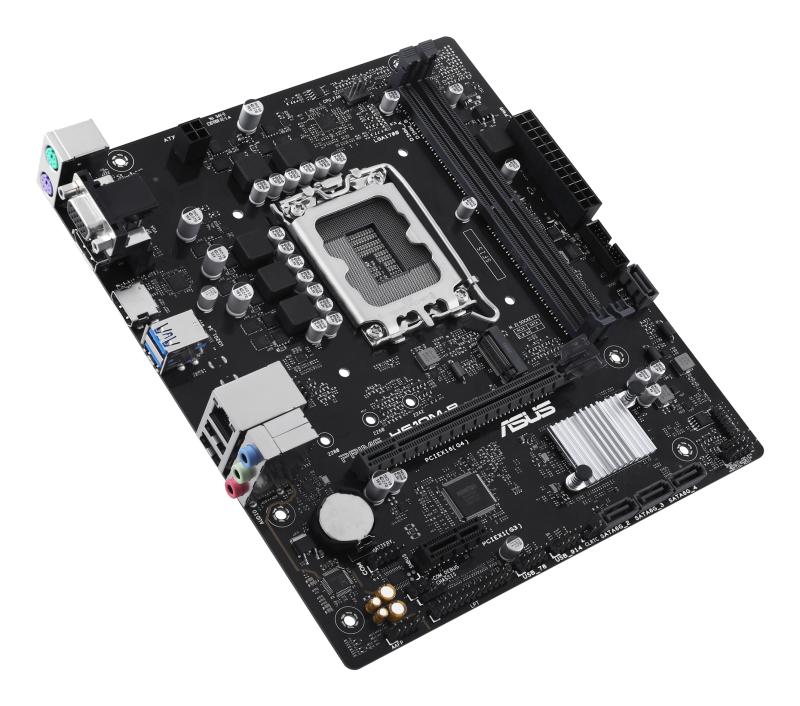

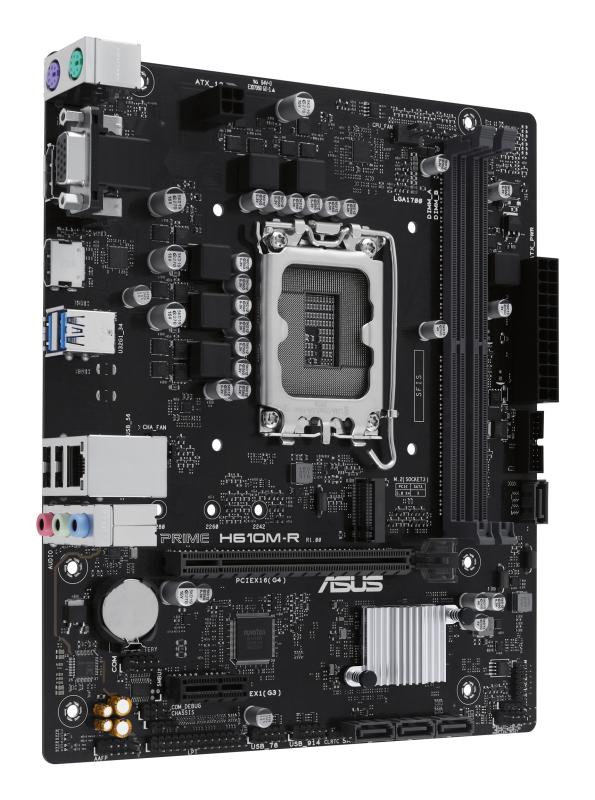

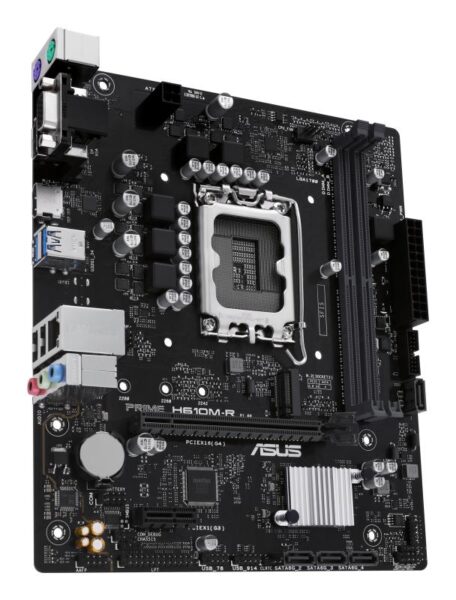

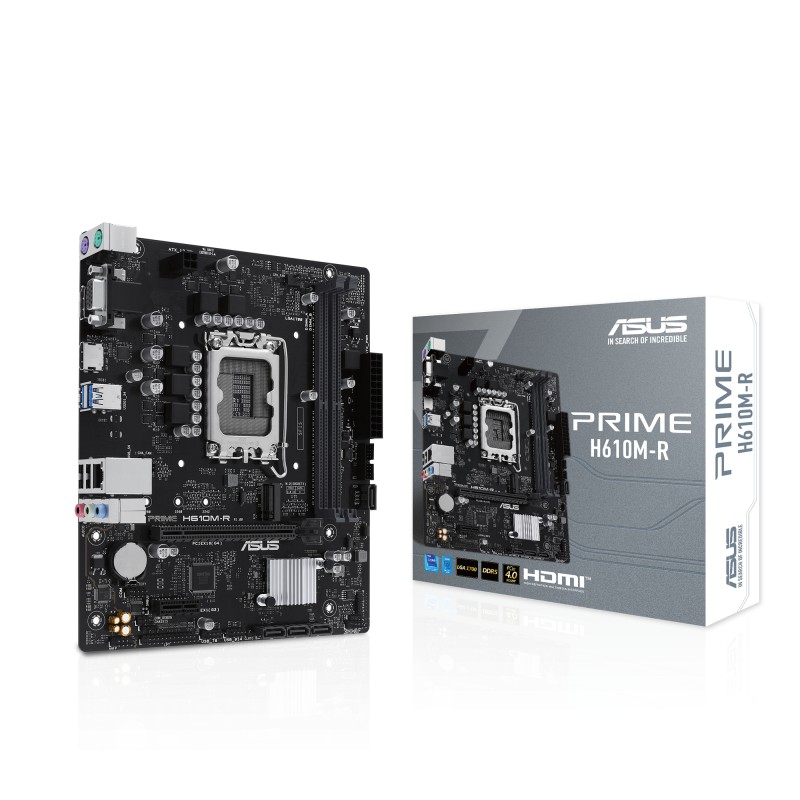

Placa de Baza ASUS PRIME H610M-R LGA1700, 2x DDR5 – PRIME H610M-R-SI
331,00 lei
Disponibil pentru pre-comenzi
Descriere
Placa de Baza ASUS PRIME H610M-R LGA1700, 2x DDR5, 1x DP 1x VGA 1x HDMI, 1x PCIE 4.0 x16 1x PCIE 3.0 x1, 1x M.2, 4x SATA 6GB/s, mATX.
Caracteristici
- PCI: 0
- Serial-or-Paralel: No/No
- Video-Connection: VGA/DVI/HDMI
- Wi-Fi: No
- USB3: 4-8
- PCI-Ex16: 1
- Onboard-CPU: No
- Component for: PC
- Depth: 195 mm
- Ethernet interface type: Gigabit Ethernet
- Package height: 50 mm
- Memory channels: Dual-channel
- Processor manufacturer: Intel
- Ethernet LAN: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- HDMI ports quantity: 1
- Ethernet LAN (RJ-45) ports: 1
- Maximum internal memory: 96 GB
- Headphone outputs: 1
- Microphone in: Yes
- USB 2.0 ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
- Audio output channels: 7.1 channels
- PCI Express x1 (Gen 3.x) slots: 1
- Line-in: Yes
- PCI Express x16 (Gen 4.x) slots: 1
- Number of memory slots: 2
- Supported storage drive types: HDD & SSD
- Number of M.2 (M) slots: 1
- VGA (D-Sub) ports quantity: 1
- Package depth: 223 mm
- Height: 365 mm
- DisplayPorts quantity: 1
- Parallel processing technology support: Not supported
- DVI-D ports quantity: 0
- Windows operating systems supported: Windows 10 x64, Windows 11 x64
- Model Chipset: H610
- Gaming: Nu
- Format: Micro-ATX (mATX)
- Soclu Procesor: Socket 1700
- Tip Memorie: DDR5
- Numar sloturi memorie: 2
- Memorie maxima: 96 GB
- Tip slot interfata grafica: PCIe 4.0 x16
- Chipset audio integrat: Realtek
- Canale audio: 7.1
- Wireless: Nu
- Bluetooth: Nu
- HDMI: Da
- Thunderbolt: Nu
- Sloturi M.2: 1
- RJ-45 LAN: 1
- Memory slots type: DIMM
- Unbuffered memory: Yes
- Supported storage drive interfaces: M.2, SATA III
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Motherboard form factor: micro ATX
- BIOS type: UEFI AMI
- Supported memory types: DDR5-SDRAM
- Number of HDDs supported: 4
- TPM connector: Yes
- Motherboard chipset family: Intel
- Processor socket: LGA 1700
- Supported processor sockets: LGA 1700
- 12V power connector: Yes
- Cables included: SATA
- ECC сompatibility: Non-ECC
- Number of COM connectors: 1
- BIOS memory size: 128 Mbit
- Number of storage drives supported: 5
- Number of chassis fan connectors: 1
- Audio connector: Yes
- PS/2 ports quantity: 2
- Width: 226 mm
- Supported memory clock speed (max): 5600 MHz
- Motherboard chipset: Intel H610
- MB-Socket: 1700
- PCI-Ex1: 0
- MB-Format: micro-ATX
- RAM-Slots: 2
- USB Type C: N/A
- Package width: 246 mm
- Package weight: 680 g
- Weight: 437 g
- Supported memory clock speeds: 5600,5400,5200,5000,4800 MHz
Informații suplimentare
| Greutate | 0,77 kg |
|---|---|
| Dimensiuni | 25 × 23 × 5 cm |
| Garanție |
36 luni |
