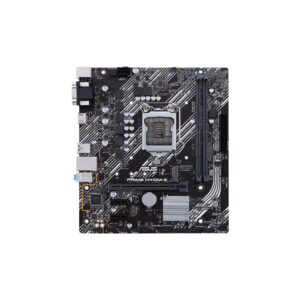

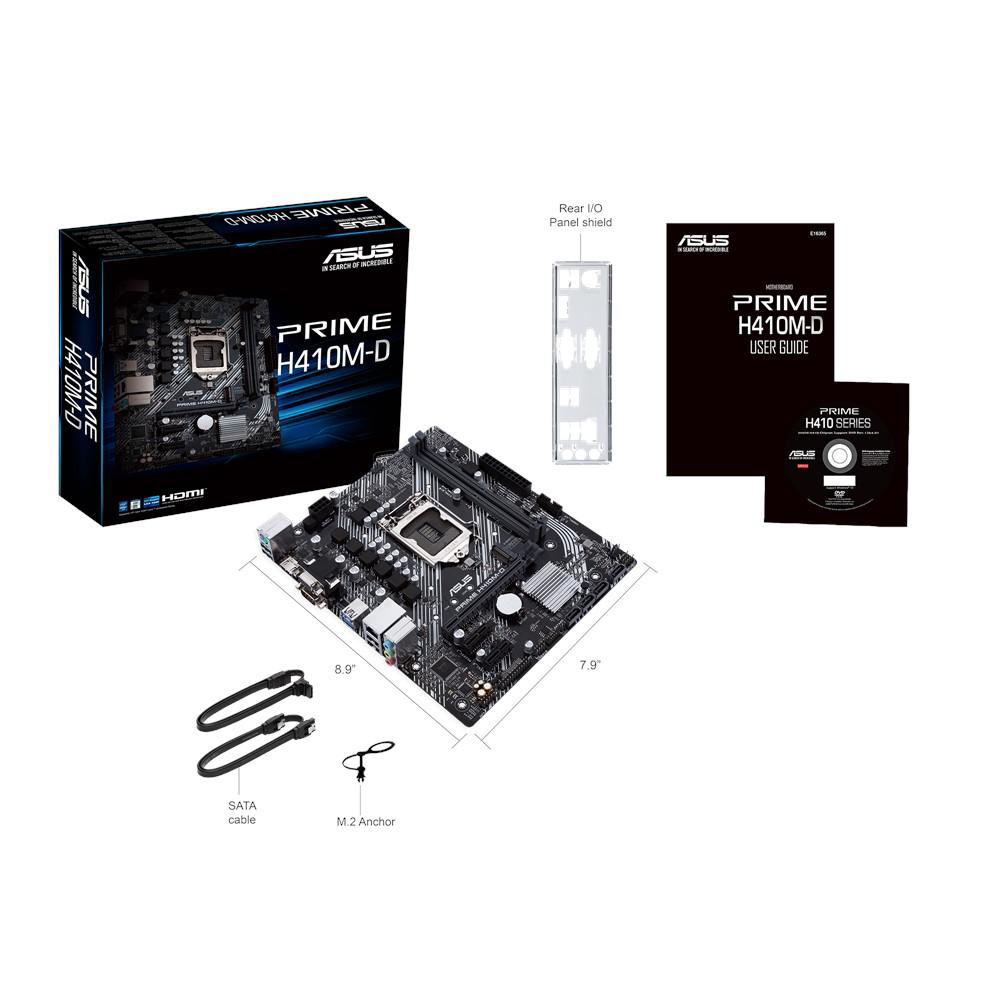

Placa de baza Asus PRIME H410M-D Socket LGA 1200 CPU Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors * Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel® H410 Memory 2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un- buffered Memory * Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem * 10th Gen Intel® Core™ i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). Graphic Integrated Graphics Processor * 1 x D-Sub 1 x HDMI 1.4b *Graphics specifications may vary between CPU types. Expansion Slots Intel® 10th Gen Processors 1 x PCIe 3.0 x16 (x16 mode) Intel® H410 Chipset 2 x PCIe 3.0 x1 Storage Total supports 1 x M.2 slots and 4 x SATA 6Gb/s ports Intel® H410 Chipset: 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)*1 4 x SATA 6Gb/s port (s) LAN Realtek® RTL8111H Audio Realtek ALC887 7.1-Channel High Definition Audio CODEC *2 – Supports: Jack-detection, Multi-streaming, Front Panel Jack- retasking, up to 24-Bit/192kHz playback Audio Feature: – LED-illuminated design – Audio Shielding – Dedicated audio PCB layers – Premium Japanese audio capacitors mATX Form Factor 8.9″ x 7.9″ (22.6 cm x 20.1 cm) https://www.asus.com/Motherboards/PRIME-H410M-D/specifications.
Descriere
Caracteristici
- Form factor: micro-ATX
- PCI: 0
- Slot PCI-Ex1: 2
- Slot PCI-Ex16: 1
- Slot RAM: 2
- Serial-or-Paralel: Yes/No
- USB: 4-8
- Video-Connection: VGA/HDMI
- Conectori SATA: 6GB/s
- Chipset: Intel
- CPU încorporat: No
- Slot M.2: 1
- Socket CPU: 1200
- RAM type: DDR4
- Video output: HDMI/VGA
Informații suplimentare
Greutate | 1 kg |
---|---|
Dimensiuni | 26 × 27 × 5 cm |
Garanție |
36 luni |
