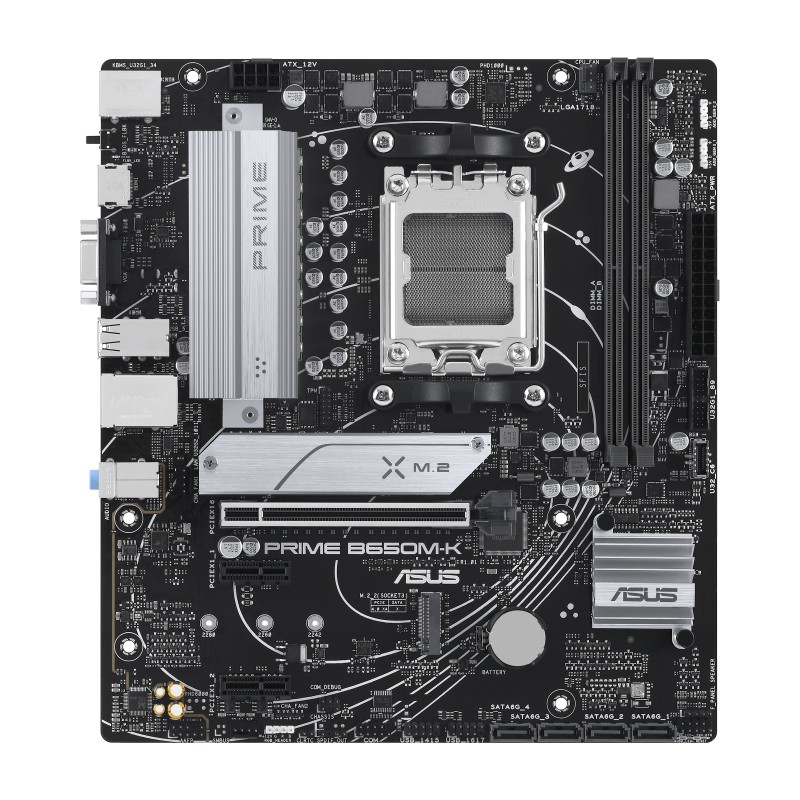

Placa de baza Asus PRIME B650M-K AM4
686,63 lei
1 în stoc
Descriere
Placa de baza Asus PRIME B650M-K AM4.
Caracteristici
- PCI: 0
- Serial-or-Paralel: No/No
- Video-Connection: VGA/HDMI
- Wi-Fi: No
- USB3: 4-8
- Onboard-CPU: Yes
- RAID support: Yes
- Component for: PC
- Memory channels: Dual-channel
- Ethernet LAN: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- HDMI ports quantity: 1
- Ethernet LAN (RJ-45) ports: 1
- Maximum internal memory: 96 GB
- Headphone outputs: 1
- Processor manufacturer: AMD
- Microphone in: Yes
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
- USB 2.0 ports quantity: 4
- Audio output channels: 7.1 channels
- Line-in: Yes
- Number of memory slots: 2
- Supported storage drive types: HDD & SSD
- Number of M.2 (M) slots: 2
- VGA (D-Sub) ports quantity: 1
- PCI Express x16 (Gen 4.x) slots: 2
- Parallel processing technology support: Not supported
- DVI-D ports quantity: 0
- Windows operating systems supported: Windows 10 x64, Windows 11
- Model Chipset: B650
- Gaming: Nu
- Format: Micro-ATX (mATX)
- Soclu Procesor: Socket AM5
- Tip Memorie: DDR5
- Numar sloturi memorie: 2
- Memorie maxima: 96 GB
- Tip slot interfata grafica: PCIe 4.0 x16
- Chipset audio integrat: Realtek
- Canale audio: 7.1
- Wireless: Nu
- Bluetooth: Nu
- USB Type C: Da
- HDMI: Da
- Thunderbolt: Nu
- Sloturi M.2: 2
- RJ-45 LAN: 1
- Memory slots type: DIMM
- Unbuffered memory: Yes
- Supported storage drive interfaces: M.2, SATA III
- USB 2.0 connectors: 2
- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Number of chassis fan connectors: 2
- EPS power connector (8-pin): Yes
- PS/2 ports quantity: 1
- Motherboard form factor: micro ATX
- Motherboard chipset family: AMD
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
- Width: 244 mm
- Supported memory types: DDR5-SDRAM
- ECC сompatibility: ECC & Non-ECC
- Number of HDDs supported: 4
- TPM connector: Yes
- RGB LED pin header: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- Package depth: 270 mm
- 12V power connector: Yes
- Cables included: SATA
- Number of storage drives supported: 6
- S/PDIF out connector: Yes
- Number of COM connectors: 1
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
- RAID levels: 0, 1, 10
- Processor socket: Socket AM5
- Supported processor sockets: Socket AM5
- Supported memory clock speeds: 4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz
- Supported memory clock speed (max): 6400 MHz
- Compatible processor series: AMD Ryzen 7000 Series
- Motherboard chipset: AMD B650
- PCI Express x1 (Gen 4.x) slots: 2
- Audio connector: Yes
- Package height: 51.5 mm
- Package weight: 1.07 kg
- Package width: 260 mm
- Depth: 221 mm
- MB-Format: ATX
- RAM-Slots: 4
- PCI-Ex1: 2
- MB-Socket: AM5
- PCI-Ex16: 2
Informații suplimentare
| Greutate | 0,89 kg |
|---|---|
| Dimensiuni | 26 × 27 × 5 cm |
| Garanție |
36 luni |
