Nou

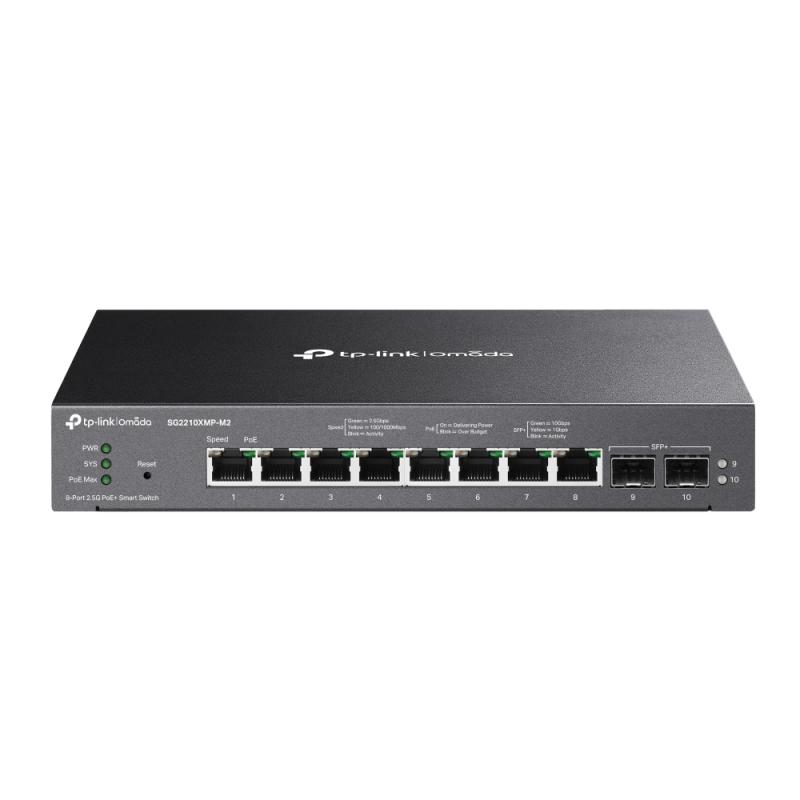

Omada 8-Port 2.5GBASE-T and 2-Port 10GE SFP+ Smart Switch – SG2210XMP-M2
2.320,00 lei
1 în stoc
Descriere
Omada 8-Port 2.5GBASE-T and 2-Port 10GE SFP+ Smart Switch with 8-Port PoE+ PORT: 8× 2.5G PoE+ Ports, 2× 10G SFP+ Slots SPEC: 802.3at/af, 160 W PoE Power, Desktop & Fanless Steel Case FEATURE: Integration with Omada SDN Controller, Static Routing, 802.1Q VLAN, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image, IPv6.
Caracteristici
- Stackable: No
- Rackable: No
- LAN-Port-Type: FastEthernet
- LAN-Ports: 8
- Redundant-PSU: No
- Storage relative humidity (H-H): 5 - 90%
- Jumbo frames support: Yes
- Link aggregation: Yes
- Power supply included: Yes
- Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
- Power over Ethernet (PoE): Yes
- Reset button: Yes
- Rack mounting: Yes
- VLAN support: Yes
- Quality of Service (QoS) support: Yes
- SFP module slots quantity: 2
- Static route: Yes
- Web-based management: Yes
- System event log: Yes
- Switch type: Managed
- Port mirroring: Yes
- Access Control List (ACL): Yes
- Basic switching RJ-45 Ethernet ports quantity: 8
- Flow control support: Yes
- Rate limiting: Yes
- IGMP snooping: Yes
- Installed SFP modules quantity: 0
- Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
- Installed SFP+ modules quantity: 0
- Configuring Location Settings (CLI): Yes
- 10G support: No
- Broadcast storm control: Yes
- Spanning tree protocol: Yes
- Multicast support: Yes
- Jumbo frames: 9000
- Number of VLANs: 4000
- MAC address table: 16000 entries
- Loop protection: Yes
- Authentication type: RADIUS
- ARP inspection: Yes
- MIB support: Y
- Power over Ethernet plus (PoE+) ports quantity: 8
- Power connector: AC/DC
- Switching capacity: 80 Gbit/s
- Forwarding rate: 59.52 Mpps
- Authentication: MAC-based authentication, Port-based authentication
- Switch layer: L2/L2+
- Security algorithms: SNMP, SNMPv2, SNMPv3
- Porturi RJ 45: 5-10
- Viteza transfer: 10G+
- Porturi SFP: 1-2
- Montare in Rack: Da
- SFP+ module slots quantity: 2
- Form factor: Desktop/Wall-Mounting
- Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3x
- Virtual LAN features: Protocol-based VLAN, Tagged VLAN, Voice VLAN
- Packet buffer memory: 9 MB
- DHCP features: DHCP relay, DHCP server, DHCPv6 client, DHCPv6 snooping
- Total Power over Ethernet (PoE) budget: 160 W
- Heat dissipation: 614.58 BTU/h
- Management: Da
- PoE: Nu
- Operating temperature (T-T): 0 - 40 °C
- Quick start guide: Yes
- Height: 35 mm
- Sustainability compliance: Yes
- LED indicators: Yes
- Power source: AC
- Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
- Width: 226 mm
- Wall mountable: Yes
- Cloud-managed: Yes
- Power consumption (max): 180.1 W
- Depth: 131 mm
Informații suplimentare
| Greutate | 2,498 kg |
|---|---|
| Dimensiuni | 37,5 × 22,5 × 7 cm |
| Garanție |
36 luni |
