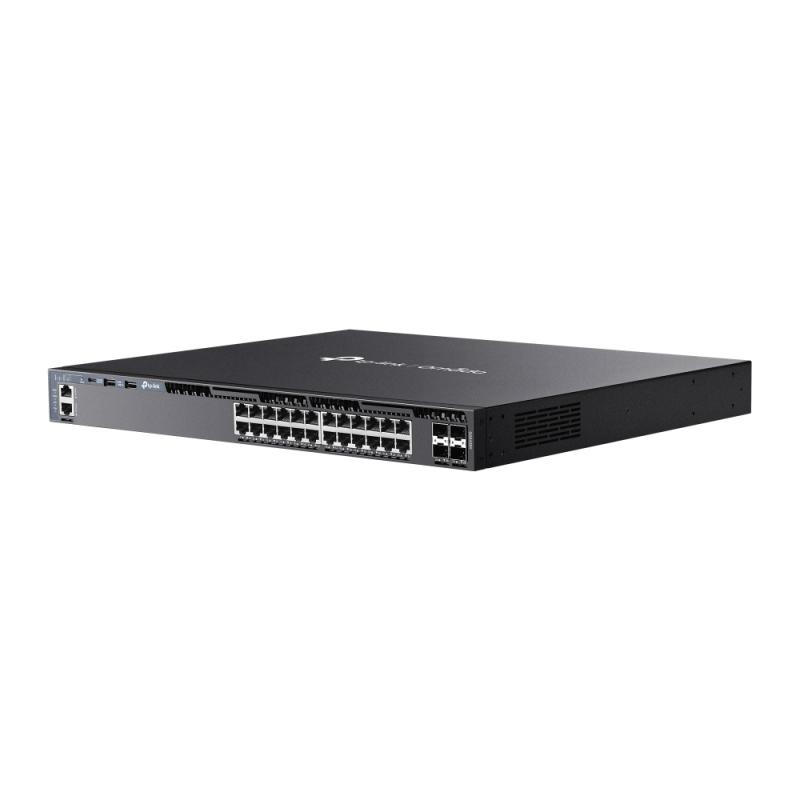

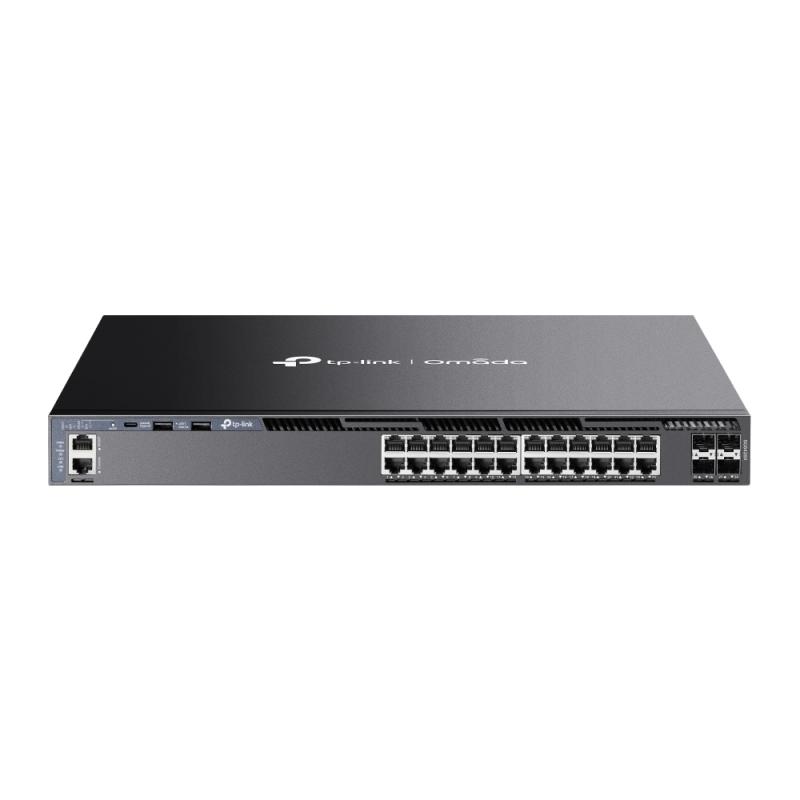

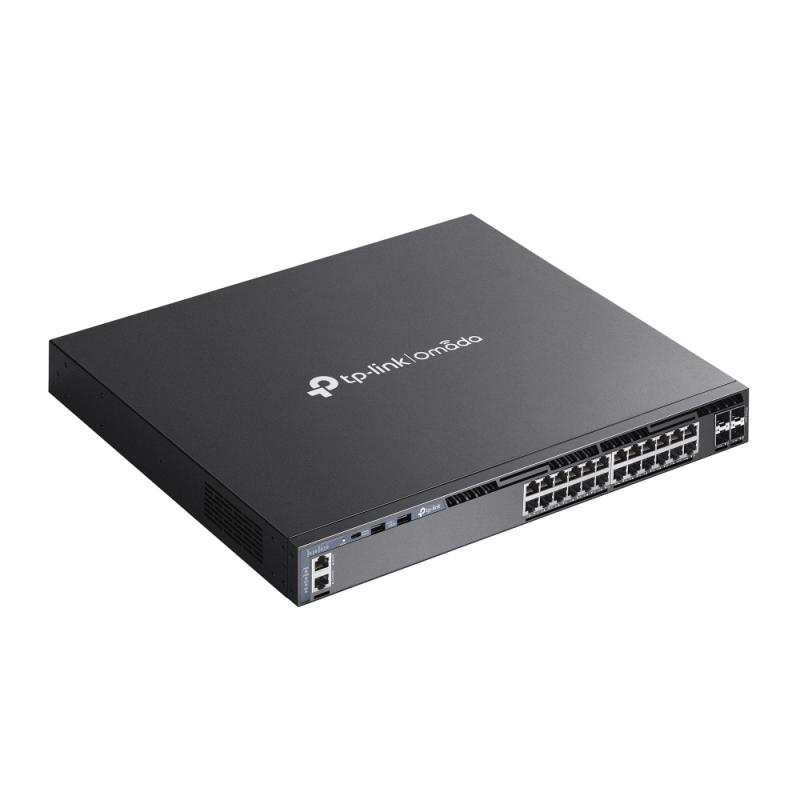

Omada 24-Port Gigabit Stackable L3 Managed Switch with 4 – TL-SG6428X
13.552,00 lei
2 în stoc
Descriere
Omada 24-Port Gigabit Stackable L3 Managed Switch with 4 10GE SFP+ Slots PORT: 24× Gigabit RJ45 Ports, 4× 10G SFP+ Slots, RJ45/Type C USB Console Port, Management Port, 2× USB2.0 Ports SPEC: 1U 19″ Rack-mountable Steel Case FEATURE: Integration with Omada SDN Controller, Stacking, RIP, OSPF, VRRP, ECMP, PIM-DM, Static Routing, DHCP Server, DHCP Relay, ERPS, RSPAN, QinQ, OAM, sFlow, DDM, 802.1Q VLAN, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP, QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6, Dual Redundant Power Supplies.
Caracteristici
- Layer: Layer-2
- Stackable: No
- Stackable: Yes
- Rackable: Yes
- LAN-Port-Type: Gigabit
- Redundant-PSU: Yes
- Storage relative humidity (H-H): 5 - 90%
- Jumbo frames support: Yes
- Power supply included: Yes
- Ethernet LAN data rates: 10,100,1000 Mbit/s
- USB 2.0 ports quantity: 2
- Rack mounting: Yes
- VLAN support: Yes
- Quality of Service (QoS) support: Yes
- Static route: Yes
- Web-based management: Yes
- System event log: Yes
- Switch type: Managed
- Port mirroring: Yes
- Form factor: 1U
- Access Control List (ACL): Yes
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Power over Ethernet (PoE): No
- Flow control support: Yes
- Rate limiting: Yes
- IGMP snooping: Yes
- PoE: Nu
- Configuring Location Settings (CLI): Yes
- Basic switching RJ-45 Ethernet ports quantity: 24
- 10G support: No
- Broadcast storm control: Yes
- Spanning tree protocol: Yes
- Multicast support: Yes
- Jumbo frames: 9000
- Switch layer: L3
- SFP module slots quantity: 4
- IP routing: Yes
- Number of VLANs: 4000
- Switching capacity: 128 Gbit/s
- Forwarding rate: 95.2 Mpps
- SSH/SSL support: Yes
- Loop protection: Yes
- Authentication type: RADIUS
- ARP inspection: Yes
- MAC address table: 32000 entries
- Management: Da
- Viteza Transfer: Gigabit
- Montare in rack: Da
- Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x
- Number of fans: 4 fan(s)
- Porturi RJ 45: 24× Gigabit RJ45 Ports
- Console port: RJ-45/USB Type-C
- Virtual LAN features: MAC address-based VLAN, Multicast VLAN, Private VLAN, Voice VLAN
- Packet buffer memory: 3 MB
- DHCP features: DHCP relay, DHCP snooping, DHCPv6 snooping
- IGMP entries: 2048
- Authentication: Auto VLAN, MAC-based authentication, Port-based authentication
- Porturi RJ 45: 24-28
- Viteza transfer: Gigabit
- Porturi SFP: 3-4
- Montare in Rack: Da
- SFP+ module slots quantity: 4
- LAN-Ports: 24
- Management: Managed
- PoE: No
- Porturi SFP: 4× 10G SFP+ Slots
- Heat dissipation: 96.91 BTU/h
- LED indicators: Yes
- Operating temperature (T-T): 5 - 40 °C
- Power source: AC
- Depth: 380 mm
- AC input frequency: 50/60 Hz
- Cables included: AC, LAN (RJ-45)
- Cloud-managed: Yes
- Power consumption (max): 28.4 W
Informații suplimentare
| Greutate | 9,1 kg |
|---|---|
| Dimensiuni | 60,5 × 17,5 × 57 cm |
| Garanție |
24 luni |
