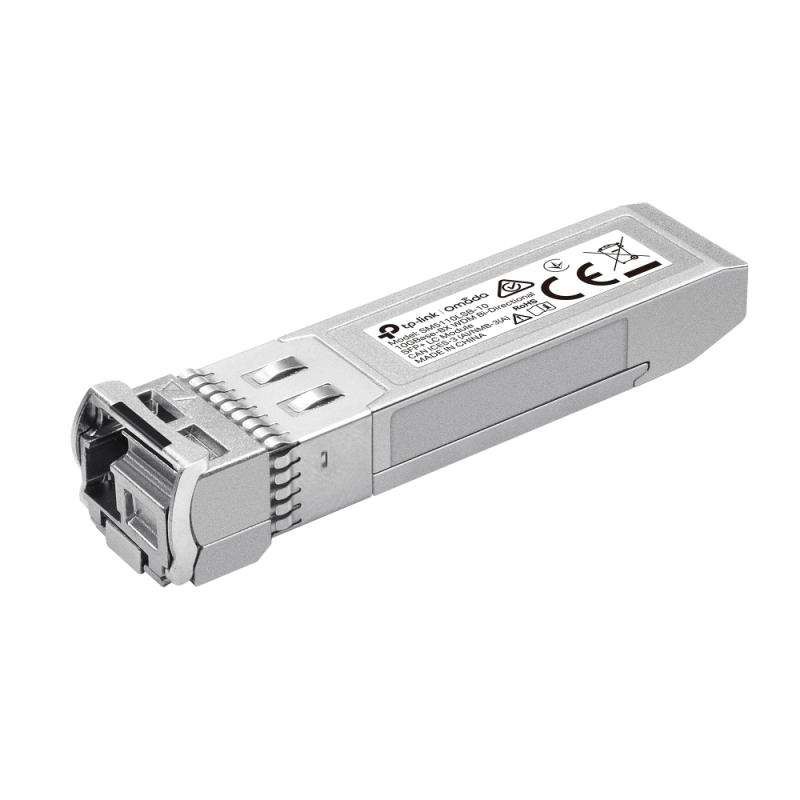

Omada 10Gbase-BX Single-Mode WDM Bi-Directional SFP+ Module SPEC: LC/UPC – SM5110LSB-10
295,00 lei
12 în stoc
Descriere
Omada 10Gbase-BX Single-Mode WDM Bi-Directional SFP+ Module SPEC: LC/UPC Connector, TX:1270nm/RX:1330nm, Single-mode, 10km.
Caracteristici
- Switch-CM-Type: SFP
- Storage relative humidity (H-H): 5 - 90%
- Maximum operating temperature: 70 °C
- Hot-swap: Yes
- Minimum operating temperature: 0 °C
- SFP transceiver type: Fiber optic
- Interface type: SFP
- Single-mode fiber (SMF) supported: Yes
- Fiber cable diameters supported (core/cladding): 9/125 µm
- Maximum transfer distance: 10000 m
- Input voltage: 3.3 V
- Fiber optic connector: LC (UPC)
- Digital Diagnostics Monitoring (DDM): Yes
- Rx wavelength (max): 1330 nm
- Networking standards: IEEE 802.3ae
- Data Transfer Rate: 10300 Mbit/s
- Maximum data transfer rate: 10312 Mbit/s
- Tx wavelength (max): 1270 nm
- Product colour: Silver
- Storage temperature (T-T): -40 - 85 °C
- Height: 12 mm
- Depth: 14 mm
- Operating temperature (T-T): 0 - 70 °C
- Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
- Width: 57 mm
Informații suplimentare
| Greutate | 0,069 kg |
|---|---|
| Dimensiuni | 12,5 × 8 × 4 cm |
| Garanție |
5 ani |
