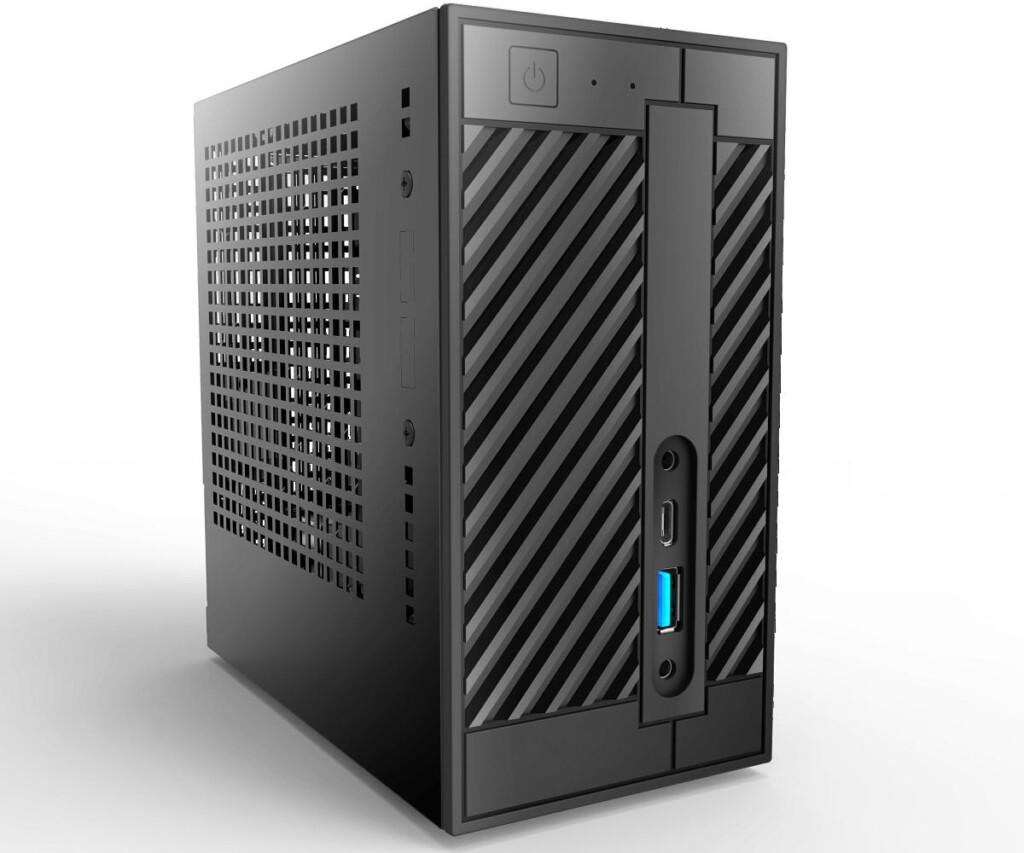

MinicPC AsRock Barebone DeskMini 310 Series Supports Intel 9th/8th – DESKMINI 310/B/BB

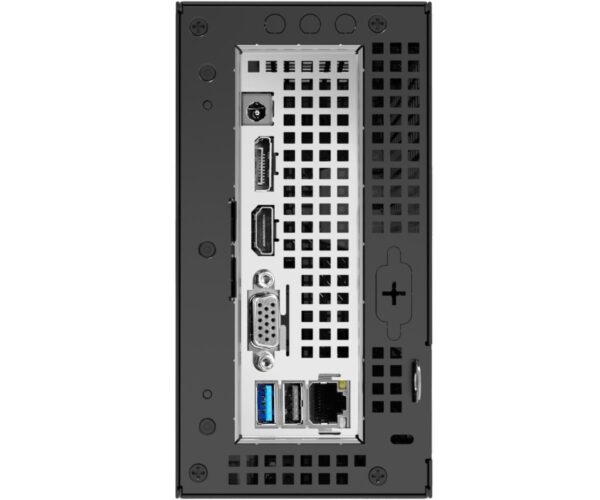

MinicPC AsRock Barebone DeskMini 310 Series Supports Intel® 9th/8th Core™ / Pentium® / Celeron® LGA1151 processors Dual DDR4 SO-DIMMs, up to 64GB Triple Video outputs: DisplayPort, HDMI & D-Sub 1 x Ultra M.2 PCIe Gen3 x4 Slot 2 x 2.5″ HDD/SSD Tray 1 x M.2 (2230) Wi-Fi Slot USB 3.1 Gen1 Type-C port Micro SD Card Reader CPU – Supports Intel® 9th/8th Gen LGA1151 Processors (Max. TDP 65W) Cooler – Supports Intel® LGA115x CPU Cooler (Max. Height ≦ 46mm) Memory – Supports 2 x SO-DIMM DDR4-2666MHz, Max. 64GB (non-ECC) Chipset – Intel® H310 Graphics – Integrated Intel® UHD Graphics Graphics Output – 1 x HDMI (4K@30Hz) – 1 x DisplayPort (4K@60Hz) – 1 x D-Sub *Supports up to 2 displays simultaneously. Audio – 1 x Head Phone with Mic Jack – 1 x Mic-In – Realtek ALC233 Front USB – 1 x USB 3.1 Gen1 Type-C – 1 x USB 3.1 Gen1 Type-A Rear USB – 1 x USB 3.1 Gen1 Type-A – 1 x USB 2.0 Type-A Storage – M.2_1: Type 2280 PCIe Gen3 x4 & SATA 6Gb – 2 x SATA 6Gb 2.5″ 7mm/9.5mm Hard Drive – 1 x Micro SD Card Reader LAN – 1 x RJ45 Gigabit LAN – Intel® Gigabit I219V WLAN – 1 x M.2 (key E 2230) Slot for Wi-Fi + BT Module – Support Intel® CNVi module, PCIe Front I/O – 2 x USB 2.0 Headers, 1 x Front Panel Header – 2 x 4-Pin fan connectors (CPU, SYS) – 1 x DC-In Jack (Supports 19V Power Adapters) – 1 x Internal Speaker Header (4-Pin) – 1 x Chassis Intrusion Header (2-Pin) Rear I/O – 1 x HDMI* – 1 x DP* – 1 x VGA* – 1 x USB 2.0 Type-A – 1 x USB 3.1 Gen1 Type-A *Three graphics output options: HDMI, DP, VGA and supports up to 2 displays simultaneously. Connectors – 1 x USB 2.0 Header – 1 x Front Panel Header – 2 x 4-Pin Fan Connectors – 1 x DC-In Jack (Supports 19V Power Adapters) – 1 x 4-Pin Audio Header – 1 x Internal Speaker Header – 1 x 2-Pin Chassis Intrusion Header Power Unit – 120W/19V Adapter Operation Temperature – 0-35°C Accessory – 2 x SATA Data with Power Cable – 1 x Screws Pack Dimension – Motherboard: 5.8″ x 5.4″ (Mini-STX) – Barebones: 155 x 155 x 80 mm (1.92L) Security – Kensington Lock – Key Lock OS – Microsoft® Windows® 10 64-bit compliant Certification – CE, FCC Remark – TPM Software.
