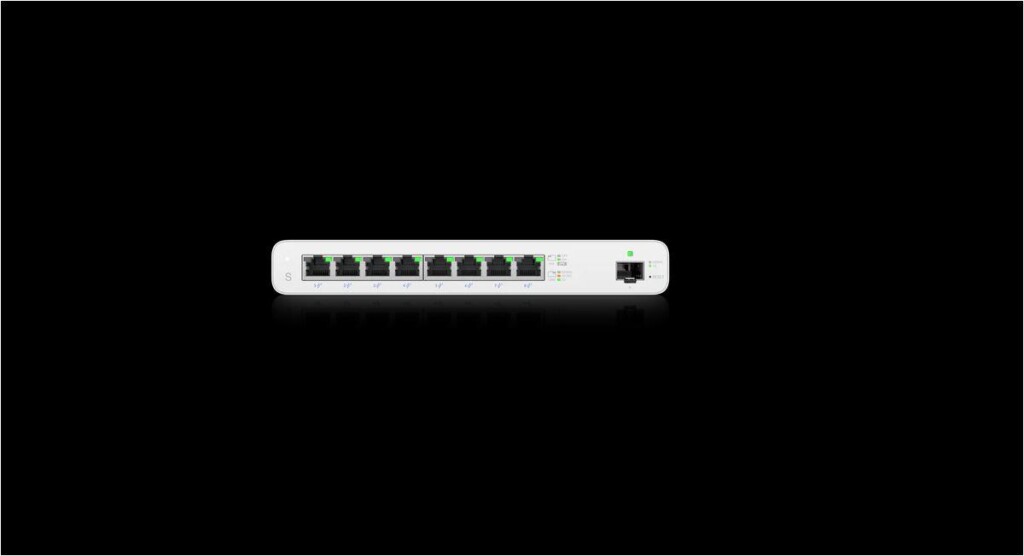

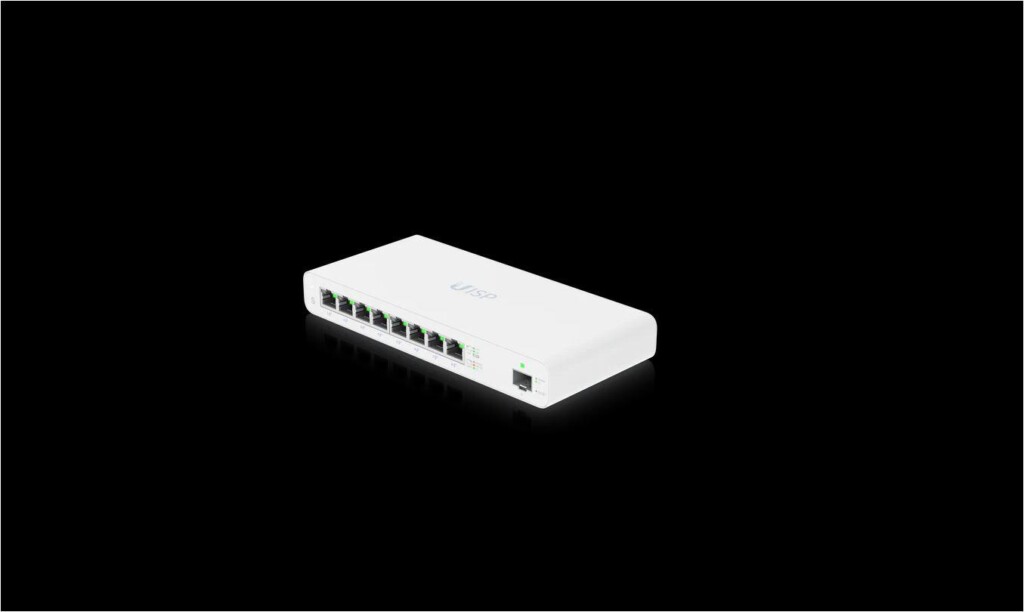

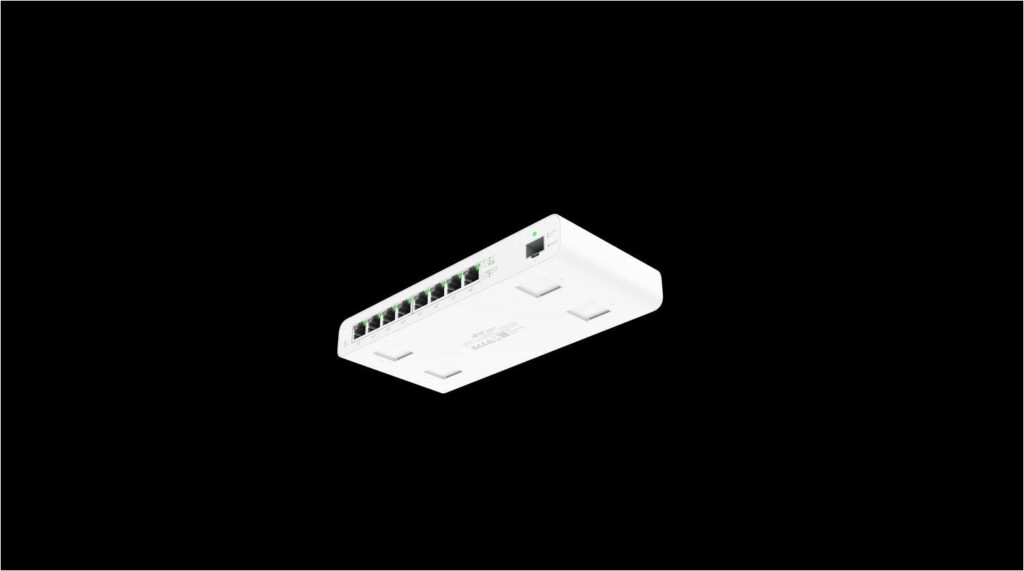

Mechanical Hardware PoE LEDs Dimensions 210.4 x 95 – UISP-S
1.086,00 lei
Stoc epuizat
Mechanical Hardware PoE LEDs Dimensions 210.4 x 95 x 29 mm (8.28 x 3.74 x 1.14″) Weight 610 g (1.34 lb) Enclosure material Polycarbonate Total non-blocking throughput 9 Gbps Switching capacity 18 Gbps Forwarding rate 13.392 Mpps Networking interface (8) 10/100/1000 MbE RJ45 ports (1) 1G SFP port Managementinterface Ethernetin-band Bluetooth BLE Power method External AC/DC adapter Power supply 27VDC, 4.4A power adapter (included) Supported voltage range 24 – 28VDC Max. power consumption 8W (excludes PoE output) ESD/EMP protection Air: ± 15 kV, contact: ± 8 kV Operating temperature -10 to 50° C (14 to 122° F) Operating humidity 5 to 95% non-condensing Certications CE, FCC, IC PoE interface (8) 27V passive PoE: 2-pair (pins 4, 5+/7, 😎 or 4-pair (pins 1, 2, 4, 5+/3, 6, 7, 😎 Max. Passive PoE wattage per port 30W/27VDC Passive PoE voltage range 27VDC System Status RJ45 data ports PoE Speed/link/activity SFP data ports Link/activity.
- Additional-Slot: No
- Wireless-Router: No
- Rackable: No
- LAN-Port-Type: Gigabit
- LAN-Ports: 8
- Redundant-PSU: No
- Ethernet LAN data rates: 10,100,1000 Mbit/s
- Power over Ethernet (PoE): Yes
- Switch type: Managed
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Power connector: DC-in jack
- Power over Ethernet (PoE) ports quantity: 8
- SFP module slots quantity: 1
- Switch layer: L2
- Basic switching RJ-45 Ethernet ports quantity: 8
- Fiber uplink ports quantity: 1
- Fiber optic connector: SFP
- DC input voltage: 20 - 28 V
- Input current: 4.4 A
- Power over Ethernet (PoE) type supported: Passive PoE
- Segment: Consumer
- Viteza Transfer: 10/100/1000 Mbps
- Porturi RJ 45: Peste 5
- Port USB: Nu
- Montare in Rack: Nu
- PoE: Da
- SFP+ module slots quantity: 1
- Quick start guide: Yes
- Product colour: White
- Operating temperature (T-T): -10 - 50 °C
- Operating relative humidity (H-H): 5 - 95%
- Depth: 95 mm
- Housing material: Polycarbonate (PC)
- Height: 29 mm
- Power source: DC
- Certification: CE, FCC, IC
- Power consumption (typical): 8 W
- Width: 210.4 mm
- Weight: 610 g
- LED indicators: LAN, Power, WAN, WLAN
| Greutate | 1,564 kg |
|---|---|
| Dimensiuni | 23,5 × 12 × 13,5 cm |
| Garanție |
24 luni |
