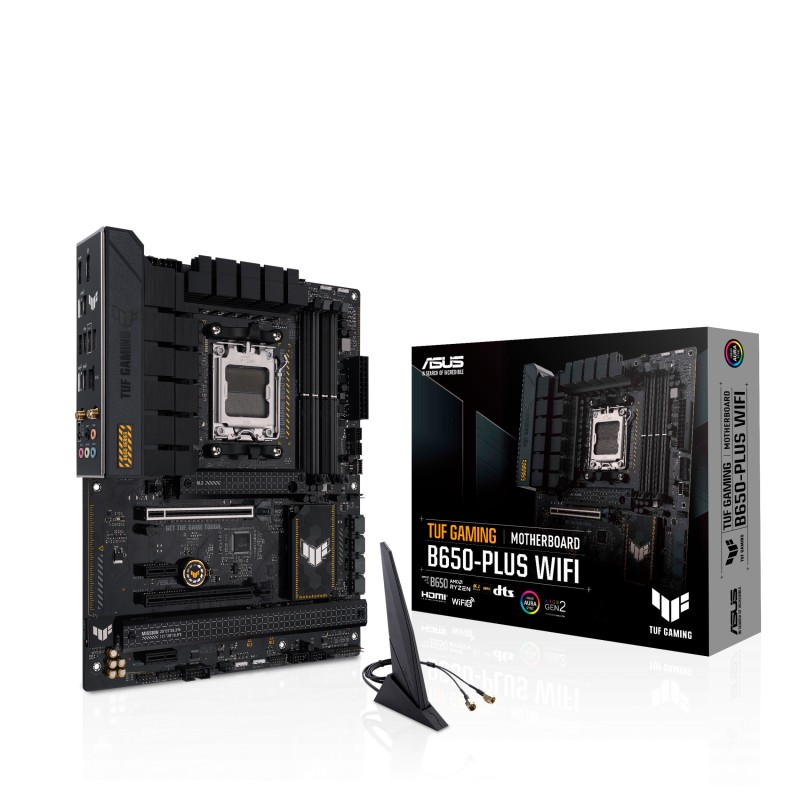

MB Asus TUF GAMING B650-PLUS WIFI
1.065,00 lei
31 în stoc (poate fi pre-comandat)
Descriere
Placă de bază ASUS TUF GAMING B650-PLUS WIFI, ATX, socket AM5, chipset AMD B650, suport DDR5 192 GB, PCIe 4.0 x16, sloturi M.2 Gen5/Gen4, WiFi 6 și LAN 2.5 Gbps.
Caracteristici
- PCI: 0
- Serial-or-Paralel: No/No
- Wi-FI: Yes
- USB3: 4-8
- Onboard-CPU: No
- RAID support: Yes
- Component for: PC
- Memory channels: Dual-channel
- Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
- Ethernet LAN: Yes
- HDMI ports quantity: 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
- Maximum internal memory: 128 GB
- Processor manufacturer: AMD
- USB 3.2 Gen 2x2 Type-C ports quantity: 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 0
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
- USB4 Gen 3x2 ports quantity: 0
- USB 2.0 ports quantity: 4
- Audio output channels: 7.1 channels
- Line-in: Yes
- On-board graphics card: No
- Supported storage drive types: HDD & SSD
- PCI Express x16 (Gen 4.x) slots: 2
- DisplayPorts quantity: 1
- VGA (D-Sub) ports quantity: 0
- USB4 Gen 2x2 ports quantity: 0
- Parallel processing technology support: Not supported
- DVI-D ports quantity: 0
- DVI-I ports quantity: 0
- Model Chipset: B650
- Gaming: Da
- Format: ATX
- Soclu Procesor: Socket AM5
- Tip Memorie: DDR5
- Numar sloturi memorie: 4
- Memorie maxima: 128 GB
- Tip slot interfata grafica: PCIe 4.0 x16
- Chipset audio integrat: Realtek
- Canale audio: 7.1
- Wireless: Da
- Bluetooth: Da
- HDMI: Da
- Thunderbolt: Nu
- Sloturi M.2: 3
- RJ-45 LAN: 1
- Number of memory slots: 4
- Memory slots type: DIMM
- Unbuffered memory: Yes
- Supported storage drive interfaces: M.2, SATA III
- USB 2.0 connectors: 2
- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
- Number of SATA III connectors: 4
- Number of SATA II connectors: 0
- Number of SATA connectors: 0
- Front panel audio connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- EPS power connector (8-pin): Yes
- Motherboard chipset family: AMD
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
- mSATA ports quantity: 0
- Supported memory types: DDR5-SDRAM
- ECC сompatibility: ECC & Non-ECC
- Number of storage drives supported: 7
- Number of chassis fan connectors: 4
- RGB LED pin header: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- Motherboard form factor: ATX
- Number of M.2 (M) slots: 3
- Number of COM connectors: 1
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
- Thunderbolt headers: 1
- PS/2 ports quantity: 0
- PCI Express x1 slots: 0
- PCI Express x1 (Gen 2.x) slots: 0
- PCI Express x1 (Gen 3.x) slots: 0
- PCI Express x4 slots: 0
- PCI Express x4 (Gen 1.x) slots: 0
- PCI Express x4 (Gen 2.x) slots: 0
- PCI Express x4 (Gen 4.x) slots: 0
- PCI Express x8 slots: 0
- PCI Express x8 (Gen 1.x) slots: 0
- PCI Express x16 slots: 0
- PCI Express x16 (Gen 2.x) slots: 0
- PCI Express x16 (Gen 3.x) slots: 0
- PCI Express x16 (Gen 3.x) @ dual x8/x8 mode slots: 0
- PCI slots: 0
- PCI-X slots: 0
- Mini PCI Express slots: 0
- Mini PCI Express (Gen 1.x) slots: 0
- Mini PCI Express (Gen 2.x) slots: 0
- Mini PCI Express slot (full length): 0
- Mini PCI Express slot (half-length): 0
- RAID levels: 0, 1, 10
- Processor socket: Socket AM5
- Supported processor sockets: Socket AM5
- Compatible processor series: AMD Ryzen 7000 Series
- Motherboard chipset: AMD B650
- PCI Express x1 (Gen 4.x) slots: 2
- USB 3.2 Gen 2x2 connectors: 0
- S/PDIF out port: No
- PCI Express x16 (Gen 5.x) slots: 0
- PCI Express OCuLink connectors (NVMe support): 0
- Supported memory clock speeds: 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7600 MHz
- MB-Format: ATX
- RAM-Slots: 4
- PCI-Ex1: 2
- USB Type C: N/A
- MB-Socket: AM5
- PCI-Ex16: 2
- Microphone in: Yes
- Headphone outputs: 1
- Bluetooth: Yes
- Product colour: Black
- Bluetooth version: 5.2
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
- Ethernet LAN (RJ-45) ports: 1
- Height: 50 mm
- Package height: 68 mm
- Weight: 1.2 kg
- Package width: 338 mm
- Package weight: 1.36 kg
- Package depth: 273 mm
- Width: 30.5 mm
- Depth: 24.4 mm
Informații suplimentare
| Greutate | 1,8 kg |
|---|---|
| Dimensiuni | 34 × 27 × 9 cm |
| Garanție |
36 luni |
