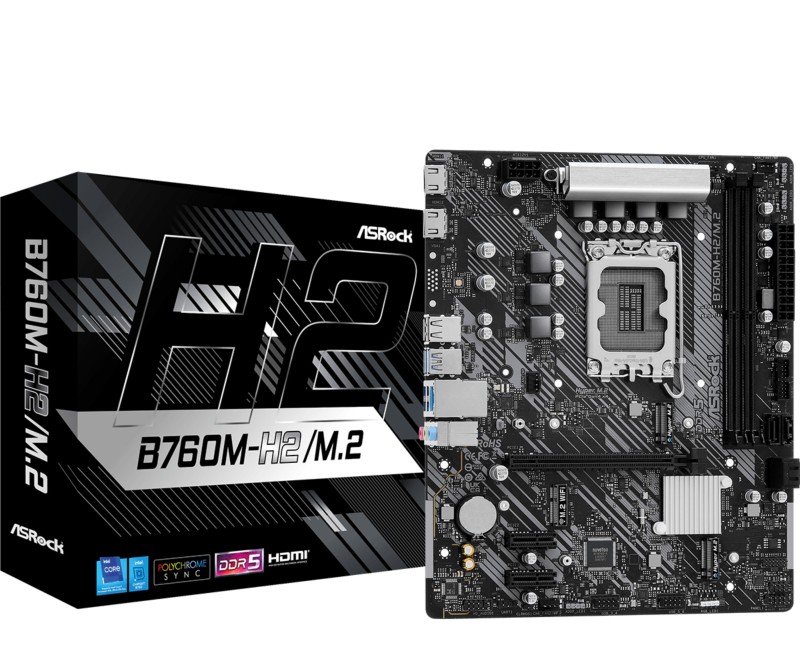

MB Asrock B760M-H2/M.2 DDR5
514,00 lei
Disponibil pentru pre-comenzi
Descriere
MB Asrock B760M-H2/M.2 DDR5.
Caracteristici
- PCI: 0
- Serial-or-Paralel: No/No
- Video-Connection: HDMI/DP
- Wi-FI: No
- USB3: 4-8
- PCI-Ex16: 1
- Onboard-CPU: No
- RAID support: Yes
- Component for: PC
- Memory channels: Dual-channel
- Processor manufacturer: Intel
- Ethernet LAN: Yes
- HDMI version: 2.1
- Maximum internal memory: 128 GB
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
- USB 2.0 ports quantity: 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- PCI Express x1 (Gen 3.x) slots: 2
- Audio output channels: 7.1 channels
- Line-in: Yes
- Audio Chip: Realtek ALC897
- PCI Express x16 (Gen 4.x) slots: 1
- Number of memory slots: 2
- Number of M.2 (M) slots: 2
- HDCP: Yes
- HDMI ports quantity: 2
- VGA (D-Sub) ports quantity: 0
- Parallel processing technology support: Not supported
- DVI-D ports quantity: 0
- Windows operating systems supported: Windows 10 x64, Windows 11 x64
- Model Chipset: B760
- Gaming: Nu
- Format: Micro-ATX (mATX)
- Soclu Procesor: Socket 1700
- Tip Memorie: DDR5
- Numar sloturi memorie: 2
- Memorie maxima: 128 GB
- Tip slot interfata grafica: PCIe 4.0 x16
- Chipset audio integrat: Realtek
- Canale audio: 7.1
- Wireless: Nu
- Bluetooth: Nu
- HDMI: Nu
- Thunderbolt: Nu
- Sloturi M.2: 2
- RJ-45 LAN: 1
- Memory slots type: DIMM
- Unbuffered memory: Yes
- Supported storage drive interfaces: M.2, SATA III
- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
- Number of SATA III connectors: 4
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- EPS power connector (8-pin): Yes
- PS/2 ports quantity: 1
- Motherboard form factor: micro ATX
- BIOS type: UEFI AMI
- Supported memory types: DDR5-SDRAM
- RAID levels: 0, 1, 5, 10
- Front panel connector: Yes
- TPM connector: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- Motherboard chipset family: Intel
- Processor socket: LGA 1700
- Maximum number of SMP processors: 1
- Supported processor sockets: LGA 1700
- Total number of SATA connectors: 4
- ECC сompatibility: Non-ECC
- Supported memory clock speed (max): 7200 MHz
- Motherboard chipset: Intel B760
- BIOS memory size: 128 Mbit
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
- Chassis intrusion connector: Yes
- USB 2.0 connectors: 4
- Number of HDDs supported: 6
- Maximum internal memory supported by processor: 128 GB
- Number of storage drives supported: 4
- Compatible processor series: Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
- MB-Socket: 1700
- MB-Format: micro-ATX
- PCI-Ex1: 2
- RAM-Slots: 2
- USB Type C: N/A
- Microphone in: Yes
- Ethernet LAN (RJ-45) ports: 1
- Cables included: SATA
- Certification: - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)
- Width: 244 mm
- Supported memory clock speeds: 5600,6800,7200 MHz
- Depth: 20.1 mm
Informații suplimentare
| Greutate | 0,8 kg |
|---|---|
| Dimensiuni | 28 × 24 × 6 cm |
| Garanție |
36 luni |
