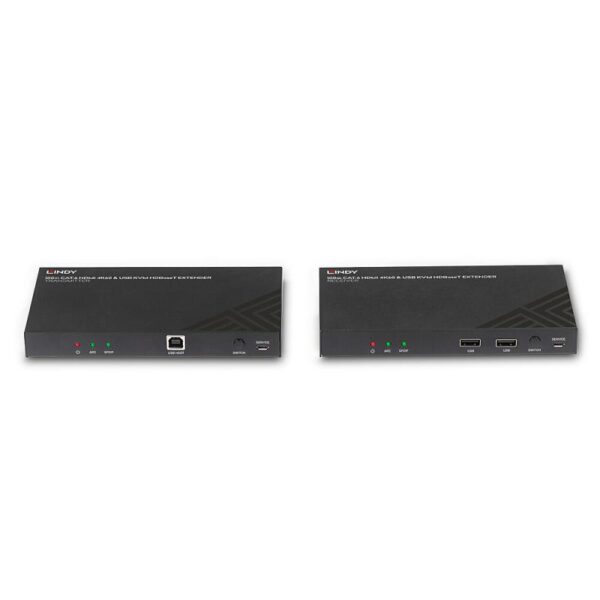

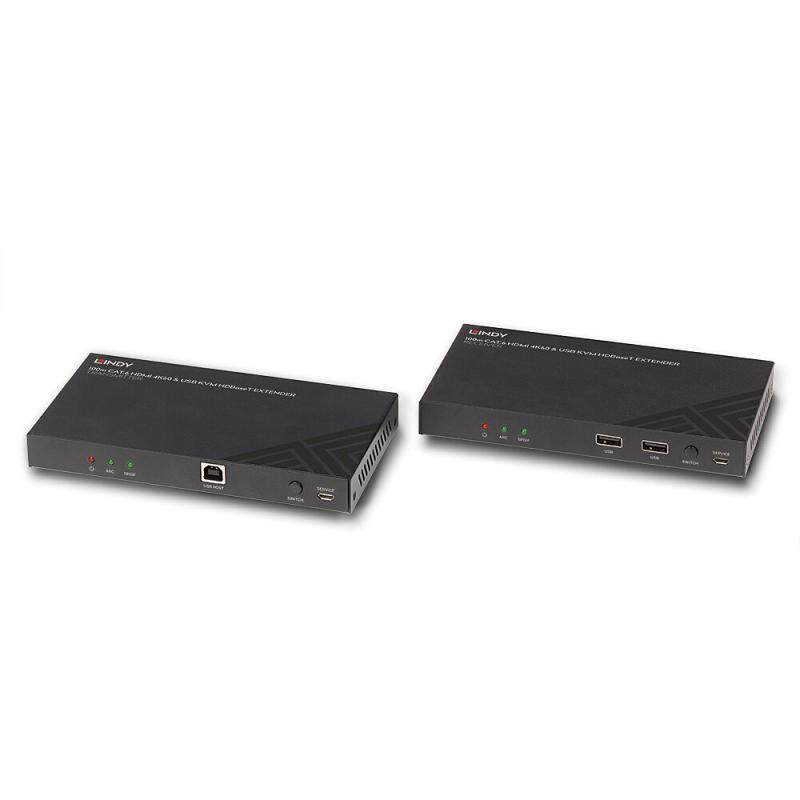

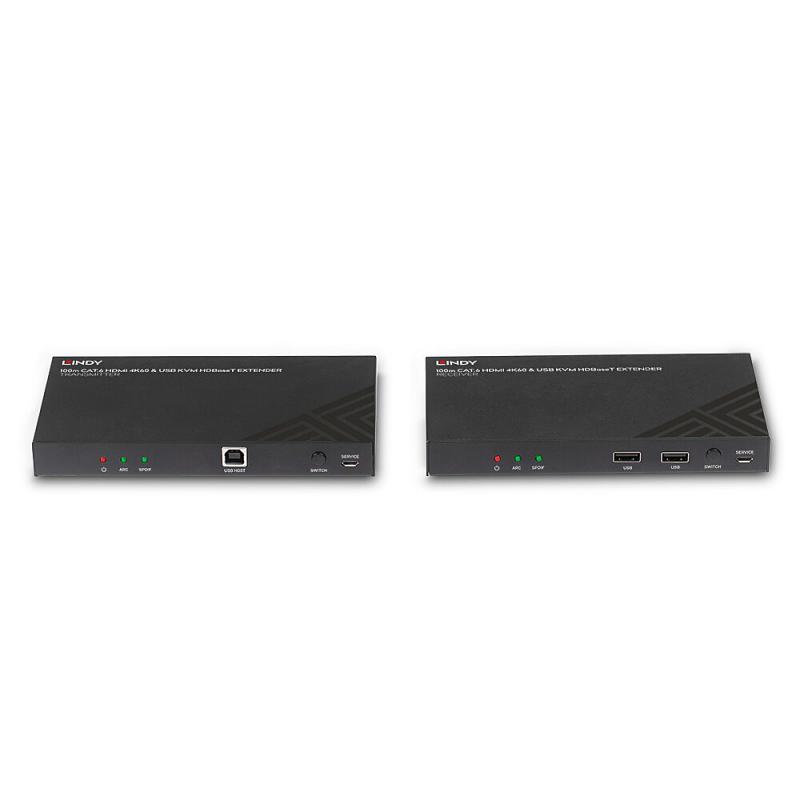

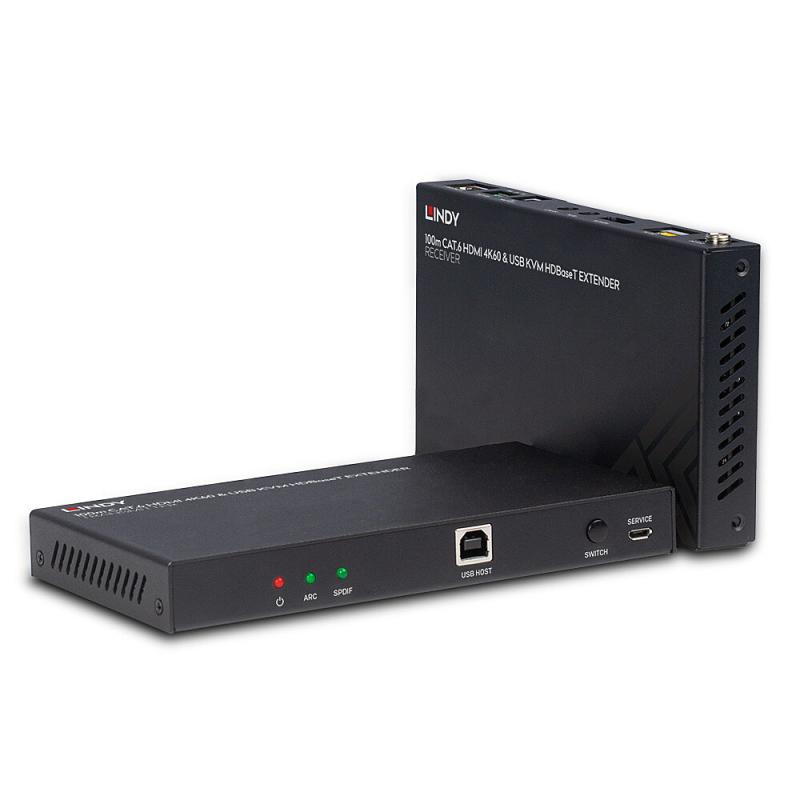

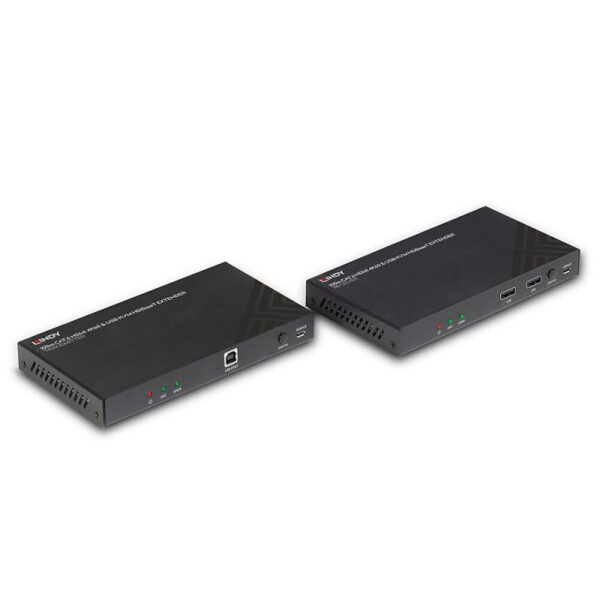

Lindy LY-38343 KVM Extender 100m Cat.6 HDMI 4K60, Audio
5.184,83 lei
Disponibil pentru pre-comenzi
Lindy 100m Cat.6 HDMI 4K60 HDBaseT KVM Extender Description Distributes HDMI resolutions up to 100m over Cat.6 network cable via HDBaseT technology Supports HDMI 18G resolutions up to 4K@60Hz 4:4:4, with additional support for HDR ARC Support as well as USB, RS-232, CEC & Ethernet pass-through & bi- directional IR for simple control Supports PoC (Power over cable), requiring a power supply connection from only one side of the installation Technical details Specifications AV Interface: HDMI Interface Standard: HDMI 2.0, USB 2.0 Supported Bandwidth: 18 Gbps Maximum Distance: 70m (229.66ft) – 3840×2160@60Hz 4:4:4 8bit 100m (328.08ft) – 1920×1080@60Hz Maximum Resolution: 3840×2160@60Hz 4:4:4 8bit HDCP Support: 2.2 EDID Pass Through: Pass-through Supported Audio: HDMI Audio Pass-through TosLink (Optical) Up to 5.1Ch 3.5mm Up to 2.0Ch Separate Audio Ports: TosLink (Optical), 3.5mm IR Support: 20 – 60KHz CEC Support: Pass-through Serial Interface: RS-232 Transmission Protocol: HDBaseT Transmission Medium: 1 x Cat.6 Laser Class (only for Fibre): – Wavelength (only for Fibre): – Chipset: VS2310TX-A1 Special Features: HDMI Loop Out Port PoC (Power over Cat.6) ARC Support Connectors Transmitter Input: HDMI Type A (Female), USB Type B (Female), 3.5mm IR (Female) Transmitter Output: RJ-45 (Female), TosLink (Optical) (Female), 3.5mm Audio (Female), 3.5mm IR (Female) Receiver Input: RJ-45 (Female), Toslink (Optical) (Female), 3.5mm IR (Female) Receiver Output: HDMI Type A (Female), 2 x USB Type A (Female), 3.5mm IR (Female) Bi-directional Ports: RS-232 3-Pin Terminal Block, RJ-45 Ethernet (Female) Power: 5.5/2.1mm Physical Properties Dimensions (approx.) WxDxH: 165x88x20mm (6.5×3.46×0.79in) per unit Housing Material: Metal Net Weight: 0.335kg (0.74lb) Operating Temperature: 0°C – 40°C (32°F – 104°F) Storage Temperature: -20°C – 60°C (-4°F – 140°F) Humidity: 20 – 90% RH (non-condensing) Power Requirements: 24VDC 1A Colour: Black Miscellaneous Packaging Type: Carton Box Packaging Dimensions: 265x70x210mm (10.43×2.76×8.27in) Gross Weight: 1.29kg (2.84lb) Warranty (Years): 2 Certificated: CE, UKCA, FCC, RoHS, REACH & California Proposition 65 Package Contents HDBaseT HDMI KVM Extender, Transmitter HDBaseT HDMI KVM Extender, Receiver IR Emitter Cable, 1.5m IR Receiver Cable, 1.5m 4 x Mounting Ears & 8 x Screws 2 x 3-Pin Terminal Block Multi-country Power Supply (UK, EU, US & AUS) Lindy Manual Purchasing Information No.: 38343 EAN: 4002888383431 https://www.lindy-international.com/100m-Cat-6-HDMI-4K60-Audio-IR-RS-232-HDBaseT-KVM-Extender.htm?websale8=ld0101.ld021102&pi=38343&ci=10.
- Material: Metal
- Connectivity technology: Wired
- Product colour: Black
- Package width: 265 mm
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 60 °C
- Harmonized System (HS) code: 84733080
- Maximum refresh rate: 60 Hz
- USB 2.0 ports quantity: 2
- Operating relative humidity (H-H): 20 - 90%
- Package height: 210 mm
- Package depth: 70 mm
- Package weight: 1.29 kg
- Maximum digital resolution: 3840 x 2160 pixels
- Certification: CE, UKCA, FCC, RoHS, REACH
- Maximum transfer distance: 100 m
- KVM-Ports: 2
- Rezolutie: 3840 x 2160
- Interfata HDMI: Da
- Numar porturi HDMI: 1-2
- Numar porturi USB: 1-2
- Type: Transmitter & receiver
- Cable types supported: Cat6
- RJ-45 ports quantity (transmitter): 1
- RJ-45 ports quantity (receiver): 1
- Transmitter video port type: HDMI
- Receiver local video port type: HDMI
- Transmitter width: 16.5 cm
- Transmitter depth: 8.8 cm
- Transmitter height: 2 cm
- Transmitter weight: 335 g
- Receiver width: 16.5 cm
- Receiver depth: 8.8 cm
- Receiver height: 2 cm
- Receiver weight: 335 g
- Weight: 335 g
| Greutate | 1 kg |
|---|---|
| Garanție |
24 luni |
