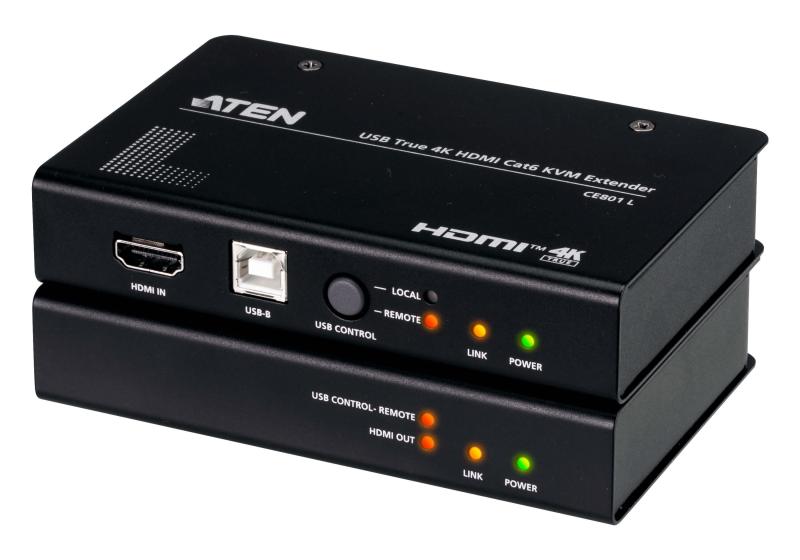

KVM Extender Aten CE801. Tipul: Transmițător & transmițător-receptor AV – CE801-AT-G
1.857,00 lei
5 în stoc (poate fi pre-comandat)
Descriere
KVM Extender Aten CE801. Tipul: Transmițător & transmițător-receptor AV, Tehnologia de conectare: Prin cablu, Maximă de transfer de la distanţă: 100 m. Tip port transmițător video: HDMI, Tip port transmițător local video: HDMI, Tip port transmițător local tastatură/mouse: USB. Tip port receptor local video: HDMI, Tip port receptor local tastatură/mouse: USB. Tip port USB: USB Tip-A. Voltajul de ieşire al adaptorului AC: 5 V, Consum energie (transmițător) (max): 2,59 W, Consum energie (receptor): 1,88 W.
Caracteristici
- Material: Metal
- SUPPORTED-BANDWIDTH: 10.2GBPS
- MAXIMUM-RESOLUTION: 3840x2160@60Hz
- HDMI-INTERFACE: HDMI 1.3
- MAXIMUM-DISTANCE: 70M
- TRANSMISSION-PROTOCOL: CAT X
- Connectivity technology: Wired
- AC adapter output voltage: 5 V
- Maximum refresh rate: 60 Hz
- USB 2.0 ports quantity: 4
- HDCP: Yes
- HDCP version: 2.3
- Maximum digital resolution: 3840 x 2160 pixels
- Rack mounting: Yes
- USB port type: USB Type-A
- Mounting bracket(s) included: Yes
- Master (outer) case width: 300 mm
- Maximum transfer distance: 100 m
- RJ-45 ports quantity (transmitter): 1
- RJ-45 ports quantity (receiver): 1
- Transmitter video port type: HDMI
- Receiver local video port type: HDMI
- Extended display identification data (EDID): Yes
- Transmitter local video port: Yes
- Transmitter local video port type: HDMI
- Receiver height: 2.5 cm
- Distanta maxima:: 100 m
- Numar porturi RJ-45: 1
- Numar porturi USB:: 4
- Interfata HDMI: Da
- Cable types supported: Cat6, Cat6a
- Rezolutie maxima:: 3840 x 2160 pixeli
- Supported bandwidth: 18 Gbit/s
- Transmitter local keyboard/mouse port type: USB
- Receiver local keyboard/mouse port type: USB
- Product colour: Black
- Operating temperature (T-T): 0 - 40 °C
- AC adapter included: Yes
- DC-in jack: Yes
- Storage temperature (T-T): -20 - 60 °C
- Manual: Yes
- Country of origin: China
- Harmonized System (HS) code: 85176200
- Operating relative humidity (H-H): 0 - 80%
- Package weight: 1.38 kg
- LED indicators: Link, Power, Status
- Cables included: USB Type-A to USB Type-B
- Master (outer) case height: 194 mm
- KVM port selection: Push-buttons
- Type: AV transmitter & transceiver
- Master (outer) case gross weight: 6.99 kg
- Master (outer) case length: 336 mm
- Master (outer) case net weight: 5.27 kg
- Master (outer) case volume: 19566.941 cm³
- RS-232 ports: 2
- Power consumption (receiver) (max): 1.88 W
- Power consumption (transmitter) (max): 2.59 W
- Package volume: 3029.9026 cm³
- Transmitter USB Type-B ports quantity: 1
- Receiver depth: 12.8 cm
- Receiver weight: 310 g
- Receiver width: 8.15 cm
- Transmitter depth: 12.8 cm
- Transmitter height: 2.5 cm
- Transmitter weight: 320 g
- Transmitter width: 8.21 cm
Informații suplimentare
| Greutate | 1,3 kg |
|---|---|
| Dimensiuni | 29 × 6,5 × 18 cm |
| Garanție |
24 luni |
