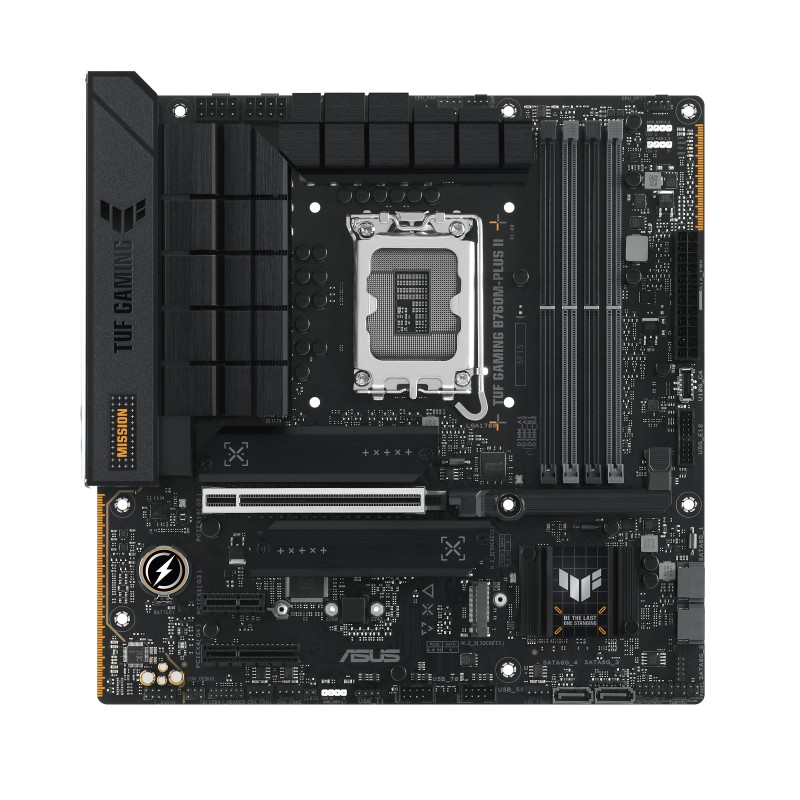

ASUS TUF GAMING B760M-PLUS II. Processor manufacturer: Intel – 90MB1HD0-M0EAY0
1.150,00 lei
10 în stoc (poate fi pre-comandat)
Descriere
Placa de baza Asus TUF GAMING B760M-PLUS II.
Caracteristici
- Wi-FI: No
- RAID support: Yes
- Component for: PC
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
- Memory channels: Dual-channel
- Processor manufacturer: Intel
- Ethernet LAN: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- HDMI ports quantity: 1
- USB 3.2 Gen 2x2 Type-C ports quantity: 1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
- USB 2.0 ports quantity: 4
- Audio output channels: 7.1 channels
- PCI Express x1 (Gen 3.x) slots: 1
- PCI Express x16 (Gen 5.x) slots: 1
- PCI Express x4 (Gen 4.x) slots: 1
- Supported storage drive types: HDD & SSD
- S/PDIF out port: Yes
- Maximum internal memory: 192 GB
- Screws included: Yes
- DisplayPorts quantity: 1
- VGA (D-Sub) ports quantity: 0
- Parallel processing technology support: Not supported
- DVI-D ports quantity: 0
- Windows operating systems supported: Windows 10 x64, Windows 11
- Model Chipset: B760
- Gaming: Da
- Format: Micro-ATX (mATX)
- Soclu Procesor: Socket 1700
- Tip Memorie: DDR5
- Numar sloturi memorie: 4
- Memorie maxima: 192 GB
- Tip slot interfata grafica: PCIe 5.0 x16
- Chipset audio integrat: Realtek
- Canale audio: 7.1
- Wireless: Nu
- Bluetooth: Nu
- HDMI: Da
- Thunderbolt: Nu
- Sloturi M.2: 3
- RJ-45 LAN: 1
- Number of memory slots: 4
- Memory slots type: DIMM
- Unbuffered memory: Yes
- Supported storage drive interfaces: M.2, SATA III
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- EPS power connector (8-pin): Yes
- Motherboard form factor: micro ATX
- BIOS type: UEFI AMI
- Supported memory types: DDR5-SDRAM
- Number of HDDs supported: 4
- Number of storage drives supported: 7
- RAID levels: 0, 1, 5, 10
- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
- Ethernet interface type: 2.5 Gigabit Ethernet
- Motherboard chipset family: Intel
- Number of M.2 (M) slots: 3
- Processor socket: LGA 1700
- Supported processor sockets: LGA 1700
- 12V power connector: Yes
- ECC сompatibility: Non-ECC
- USB 2.0 connectors: 3
- Motherboard chipset: Intel B760
- BIOS memory size: 128 Mbit
- Thunderbolt headers: 1
- Supported memory clock speed (max): 7800 MHz
- Number of chassis fan connectors: 3
- Supported memory clock speeds: 7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz
- USB Type C: N/A
- Microphone in: Yes
- Headphone outputs: 1
- Cables included: SATA
- Width: 244 mm
- Height: 50 mm
- Package depth: 265 mm
- Package weight: 1.65 kg
- Package width: 280 mm
- Package height: 71 mm
- Weight: 982 g
- Depth: 24.4 mm
Informații suplimentare
| Greutate | 1,44 kg |
|---|---|
| Dimensiuni | 28 × 7,5 × 28 cm |
| Garanție |
24 luni |
